Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
MXD63B600

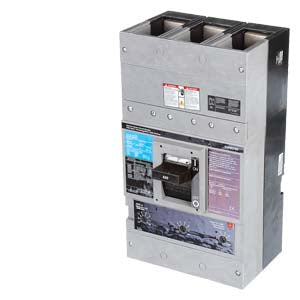

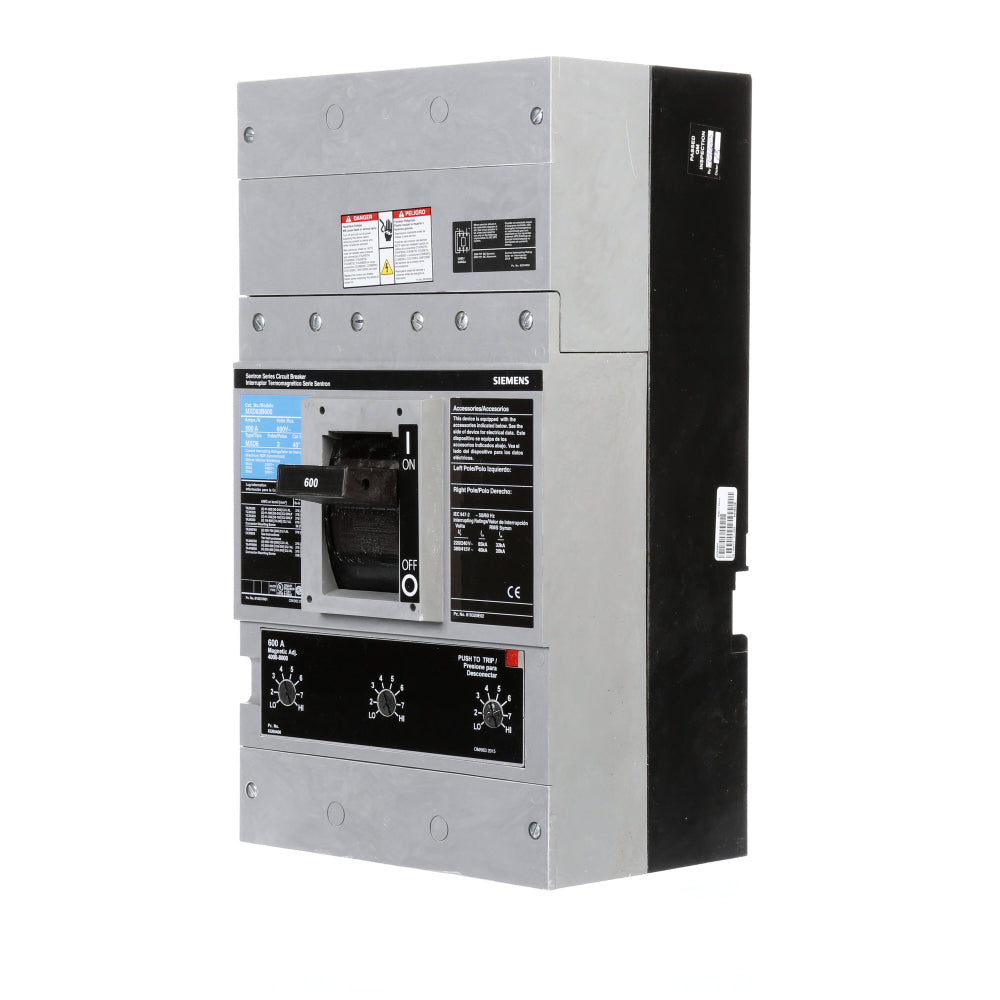

MXD63B600 is a Siemens 600 Ampere, 600 Volt, 3 pole molded case circuit breaker with a thermal magnetic trip unit and MD6 frame type.This Siemens Sentron MXD6 series breaker features a 50 kiloampere interrupting rating at 480 VAC, suitable for 3-phase applications. It is designed for bolt-on mounting with standard aluminum/copper pressure terminals and meets UL 489 and IEC 60947-2 certifications. The breaker supports operation at 40 degrees Celsius ambient temperature and provides reliable protection with a non-interchangeable trip.
- Key Specifications
- Amperage: 600 A
- Voltage: 600 VAC
- Poles: 3
- Interrupting Rating: 50 kA at 480 VAC
- Frame/Series: MD6
- Trip Unit: Thermal Magnetic
- Mounting Type: Bolt-On
- Terminal Type: Aluminum/Copper standard pressure
- Certifications: UL 489, IEC 60947-2
- Operating Temperature: 40°C ambient
- Part Number: MXD63B600
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : MXD
- Voltage : 600
- Amperage : 600
- Phase : 3
- Poles : 3
- AIC rating : 50kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : MD Frame
- Protection : Thermal Magnetic
- UPC : 783643252424
- GTIN : 00783643252424
- Country of Origin : Mexico
- Weight : 53.7
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
