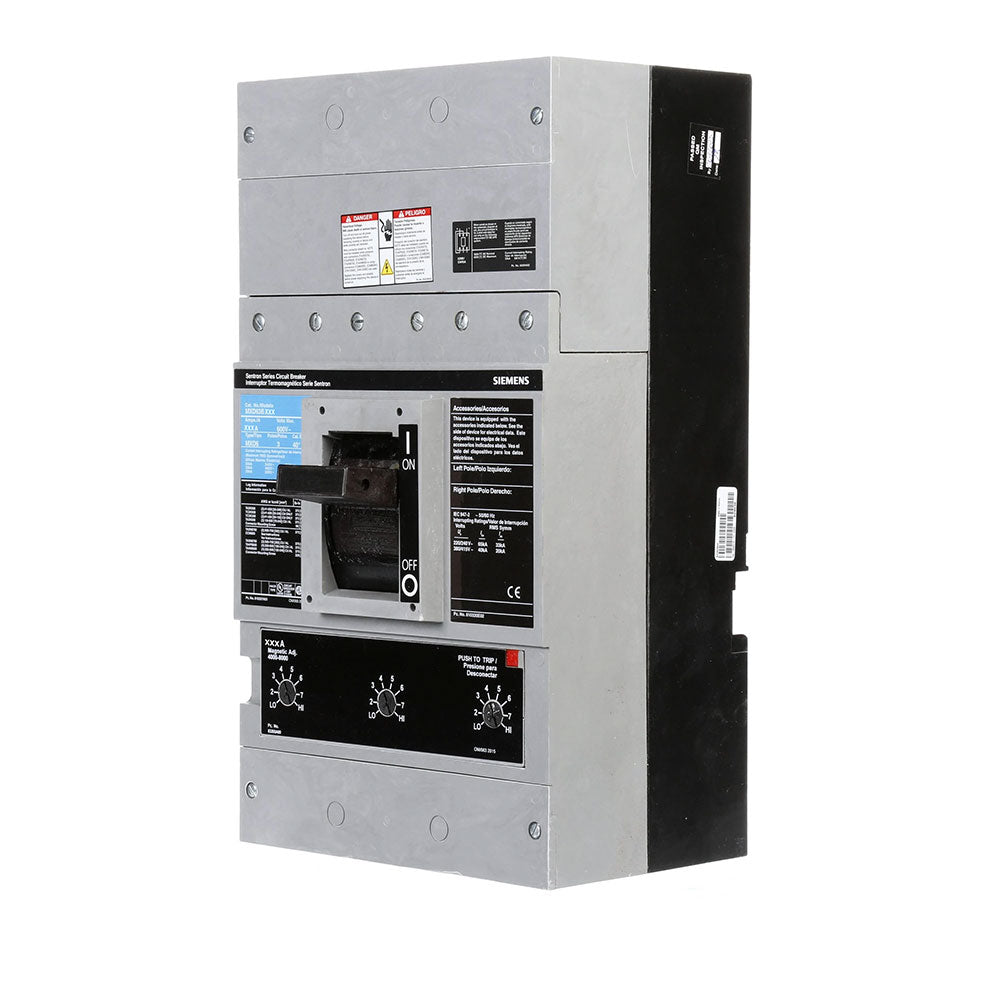

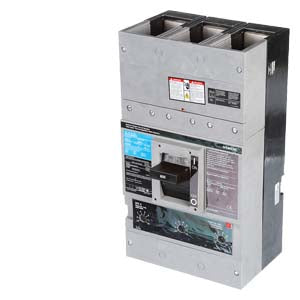

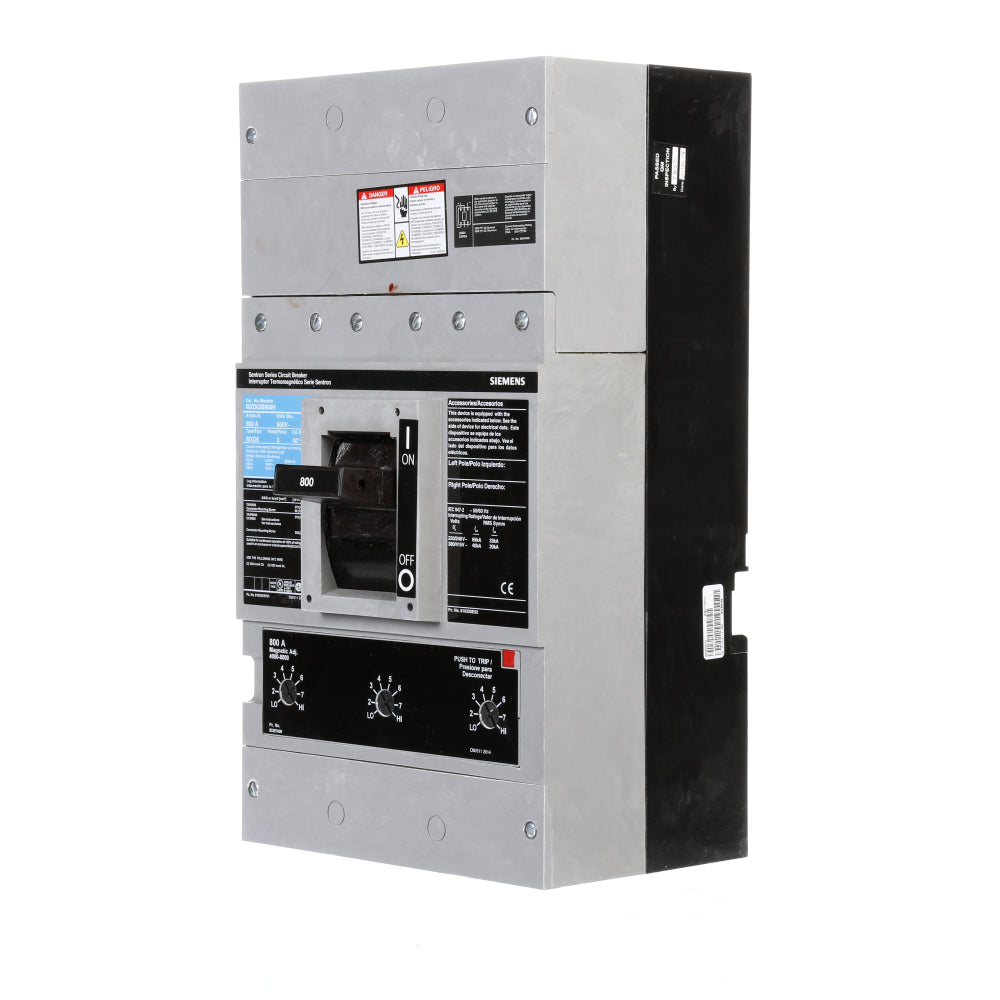

MXD63B800H - Siemens 800A 600VAC 3 Pole HMD Frame Molded Case Circuit Breaker, 25kA Interrupt, Bolt-On, Thermal Magnetic Trip

MXD63B800H

MXD63B800H is a Siemens 3-pole, 800A molded case circuit breaker designed for robust power distribution applications.

This thermal magnetic trip unit breaker features a 600VAC rating, 25kA interrupting capacity, and bolt-on mounting for secure electrical connections. It is part of the Siemens MXD6 series with an HMD frame, suitable for demanding industrial and commercial environments.

Key Specifications
• Manufacturer: Siemens
• Part Number: MXD63B800H
• Amperage: 800A
• Voltage: 600VAC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 25kA at 600V
• Series/Frame: MXD6 / HMD
• Trip Unit: Thermal Magnetic
• Frequency: 50/60 Hz
• Certifications: Standard 40°C rated, 100% rated
• Dimensions: 9.6" L x 11.8" W x 19.3" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: MXD63B800H
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : MXD
• Voltage : 600
• Amperage : 800
• Phase : 3
• Poles : 3
• AIC rating : 50kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Frame Size : MD Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 783643320239
• GTIN : 00783643320239
• Country of Origin : Mexico
• Weight : 54.101
