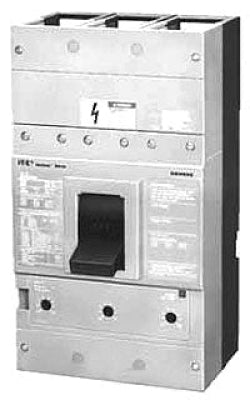

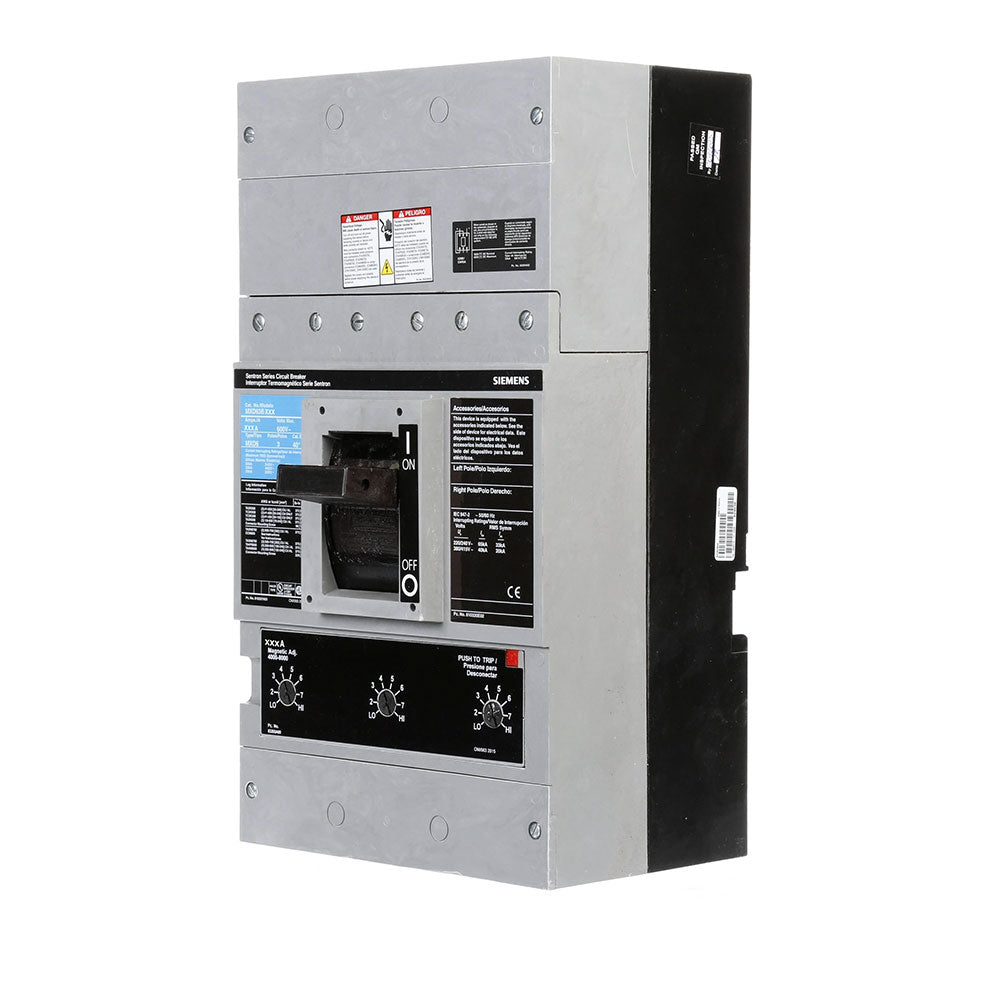

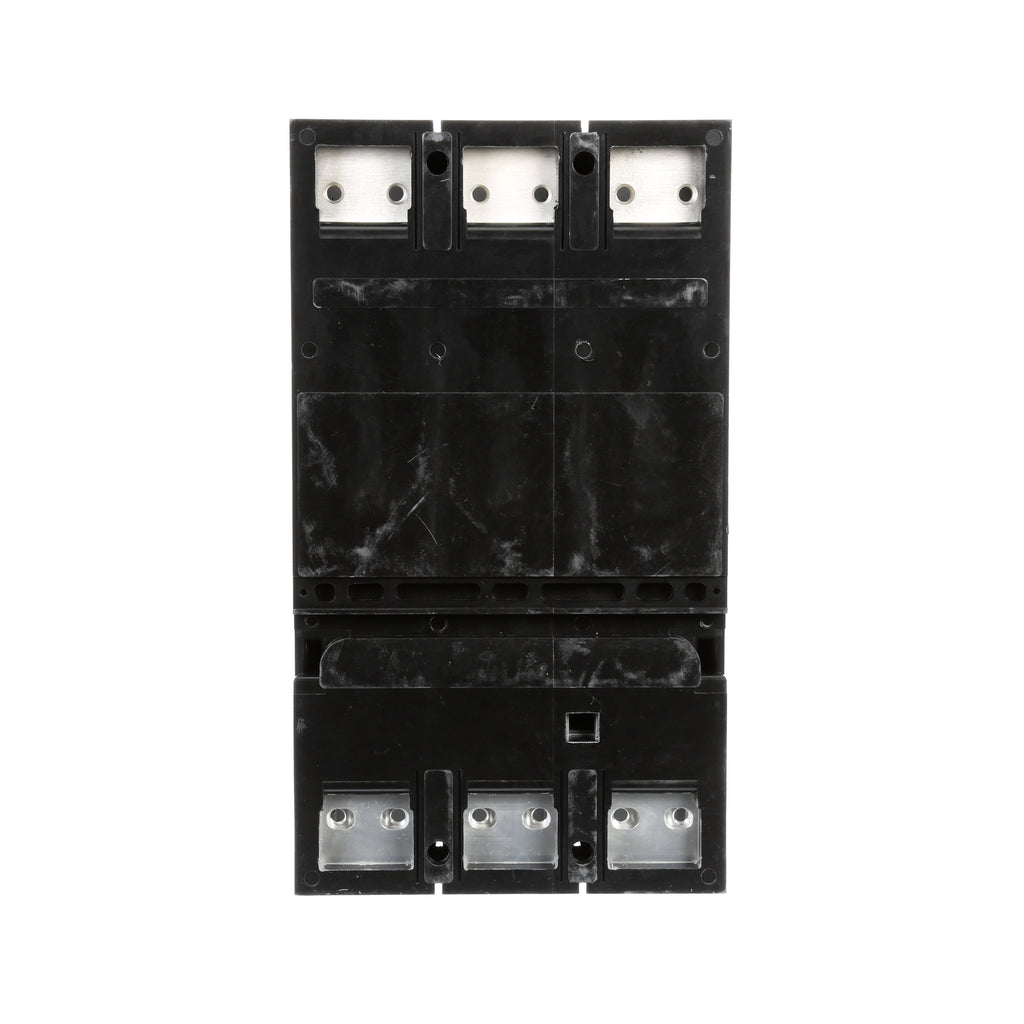

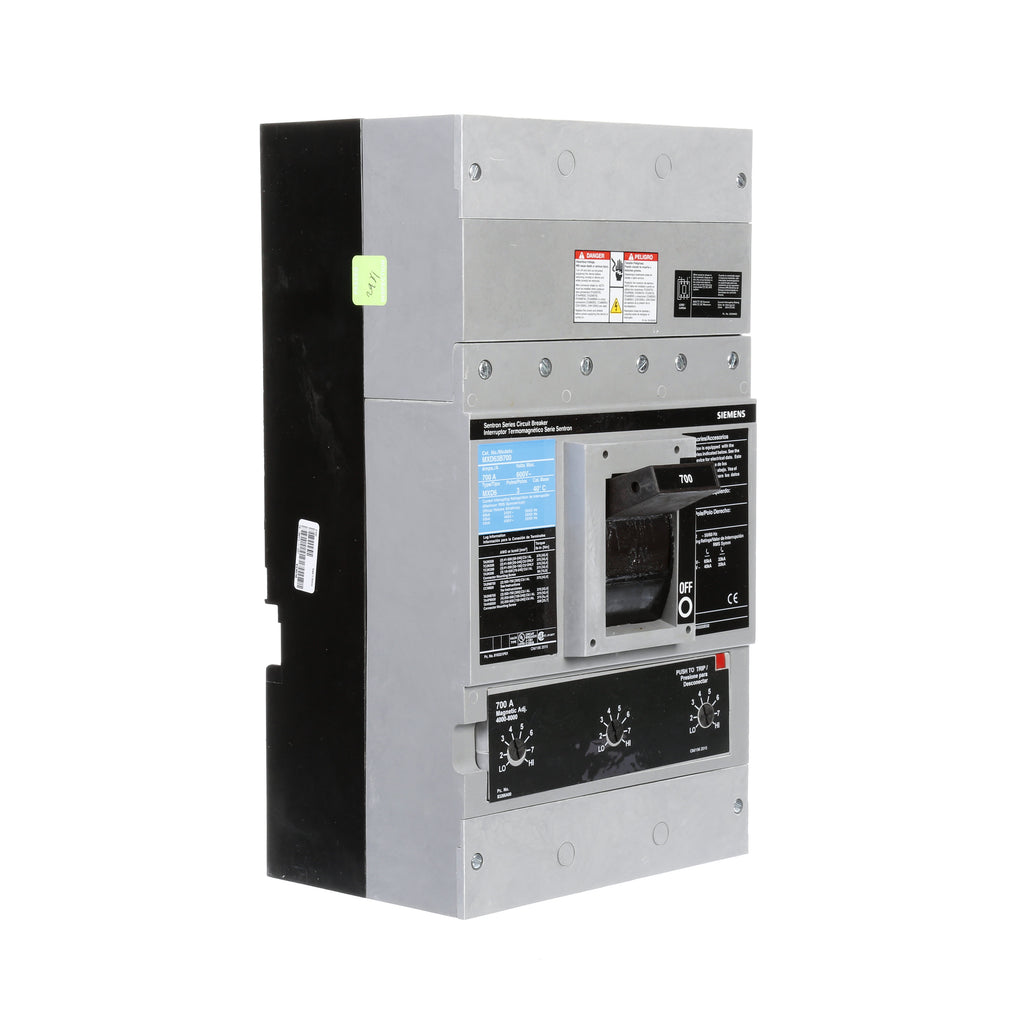

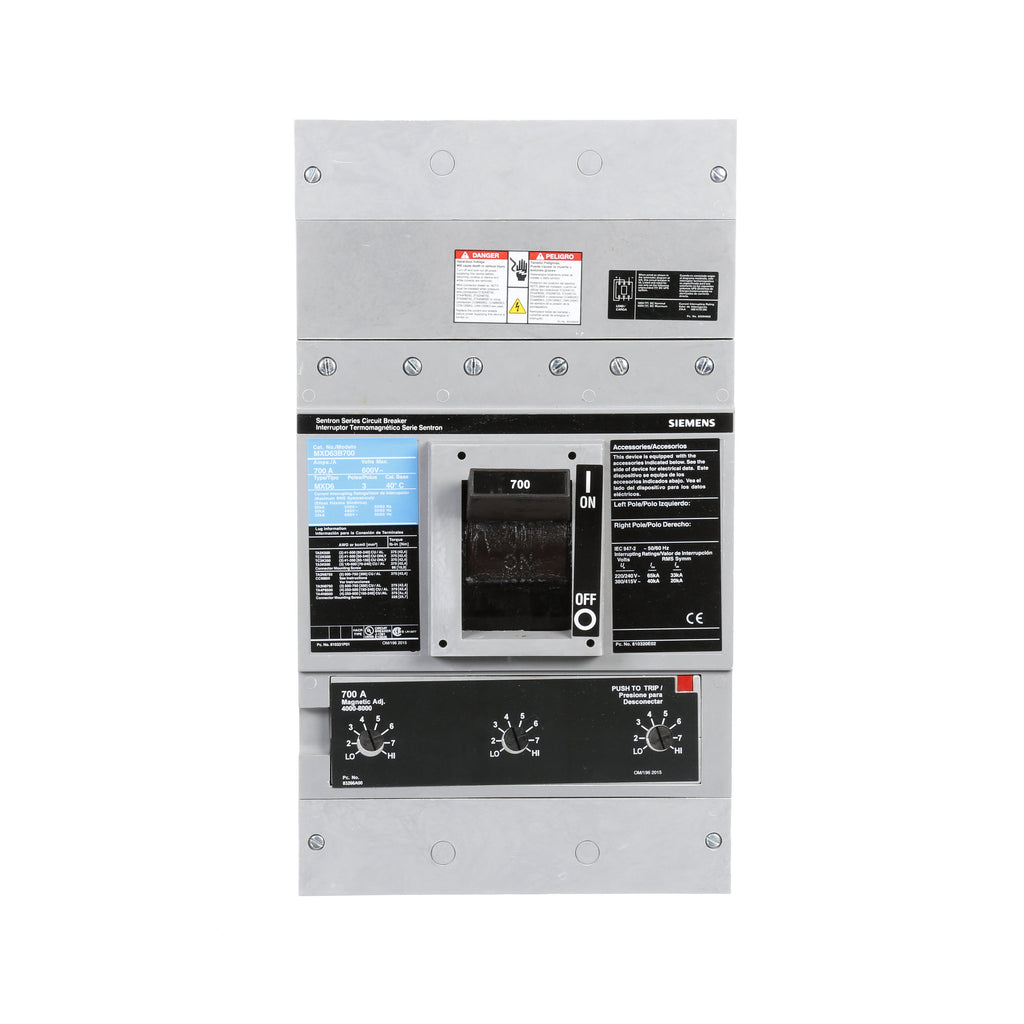

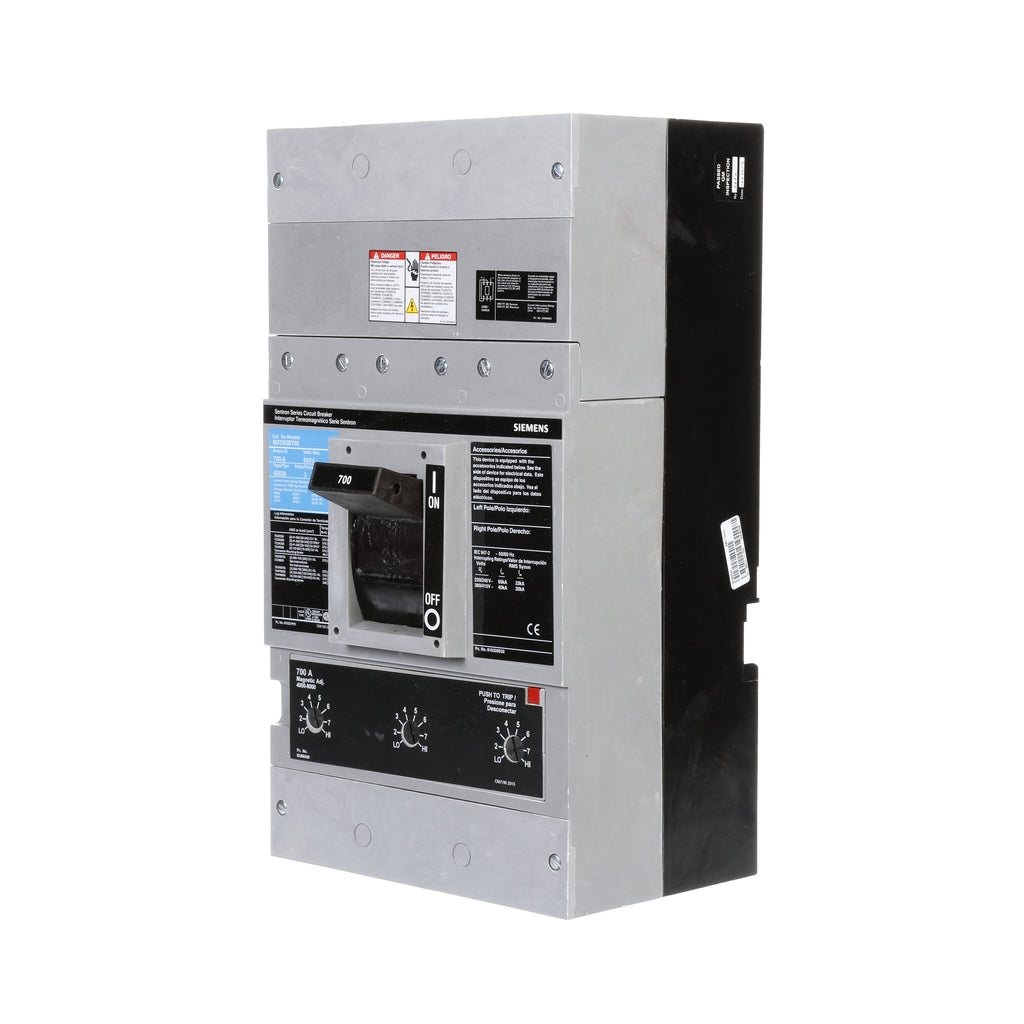

MXD63B700 - Siemens 3 Pole 700A 600V Molded Case Circuit Breaker

MXD63B700

MXD63B700 is a Siemens Sentron Series 3-pole molded case circuit breaker rated for 700 amperes at 600 volts AC with thermal magnetic protection.

This MD frame breaker features bolt-on connection and is designed for industrial power distribution applications. The unit comes complete with a non-interchangeable trip unit and operates at 40 degrees Celsius. It delivers standard interrupting capacity ratings of 50 kiloamperes at 480V and 25 kiloamperes at 600V, making it suitable for demanding electrical systems.

• Amperage Rating: 700A
• Voltage Rating: 600V AC
• Poles: 3
• Frame Size: MD6
• Series: Sentron
• Type: Thermal Magnetic
• Mounting: Bolt-on
• Interrupt Rating: 50kA @ 480V, 25kA @ 600V
• Operating Temperature: 40 degrees Celsius
• Trip Unit: Non-interchangeable
• Dimensions: 9 in W x 16 in H x 6 in D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: MXD63B700
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : MXD
• Voltage : 600
• Amperage : 700
• Phase : 3
• Poles : 3
• AIC rating : 50kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous
• Frame Size : MD Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 783643252417
• GTIN : 00783643252417
• Country of Origin : Mexico
• Weight : 53.7
