Product Info
- Manufacturer:General Electric
- Sub-Category:Overload Relay
Description
MT03G

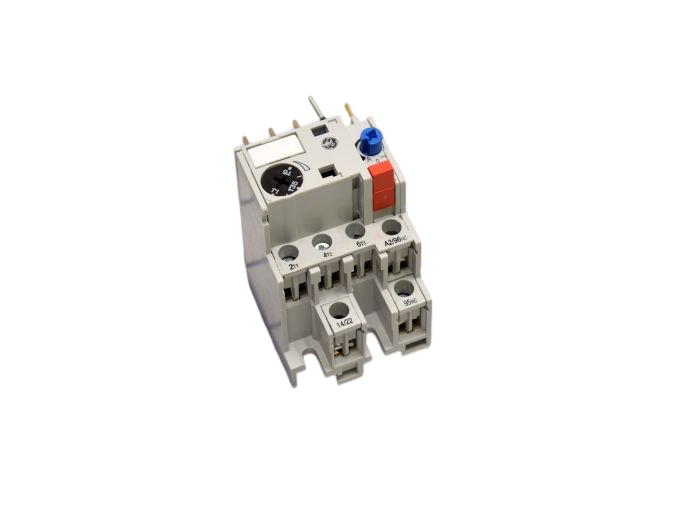

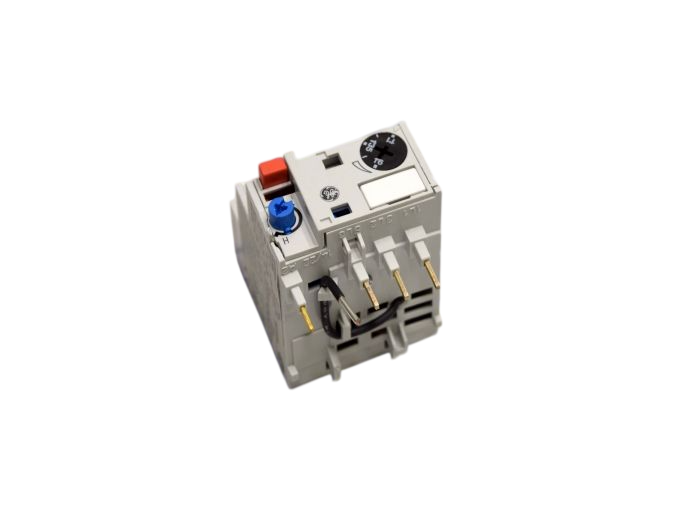

MT03G is a General Electric 3-pole thermal overload relay designed for reliable motor protection in industrial applications. This relay features an adjustable amperage range for precise motor overload protection. The MT03G thermal overload relay is engineered for use with General Electric C-2000 MC/TLI mini contactors and provides dependable protection for motors operating up to 600VAC. Its bimetallic sensing method ensures accurate response to overload conditions, and the relay is suitable for separate mounting configurations.
- Manufacturer: General Electric
- Part Number: MT03G
- Amperage Range: 1.10 - 1.60A
- Rated Voltage: 600VAC
- Number of Poles: 3
- Mounting Type: Separate Mounting
- For Use With: C-2000 MC/TLI Mini Contactors
- Sensing Method: Bimetallic
- Standards: CSA, IEC, UL
- Trip Class: 10A
- Max Continuous Current: 10A
- Rated Insulation Voltage: 750V
Specifications
- Part Number: MT03G
- Manufacturer : General Electric
- Brand : General Electric
- Category : Motor Control
- Item Subcategory : Overload Relay
- Family : Series M
- Type : MT
- Relay Style : Thermal
- Amperage Maximum : 1.6
- Amperage Minimum : 1.1
Product Data
- GTIN : 08425095010062
- Weight : 7
