2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Murray
- Sub-Category:Parts & Accessories
Description

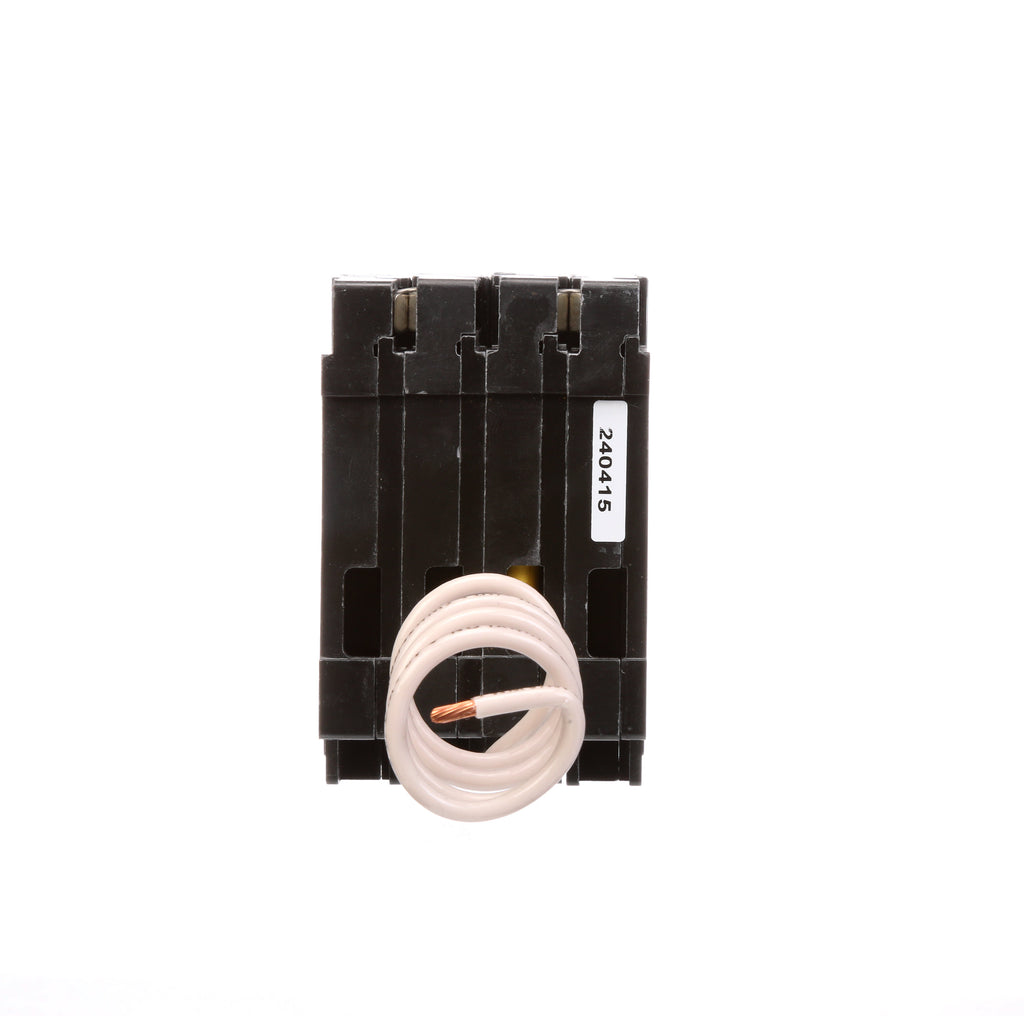

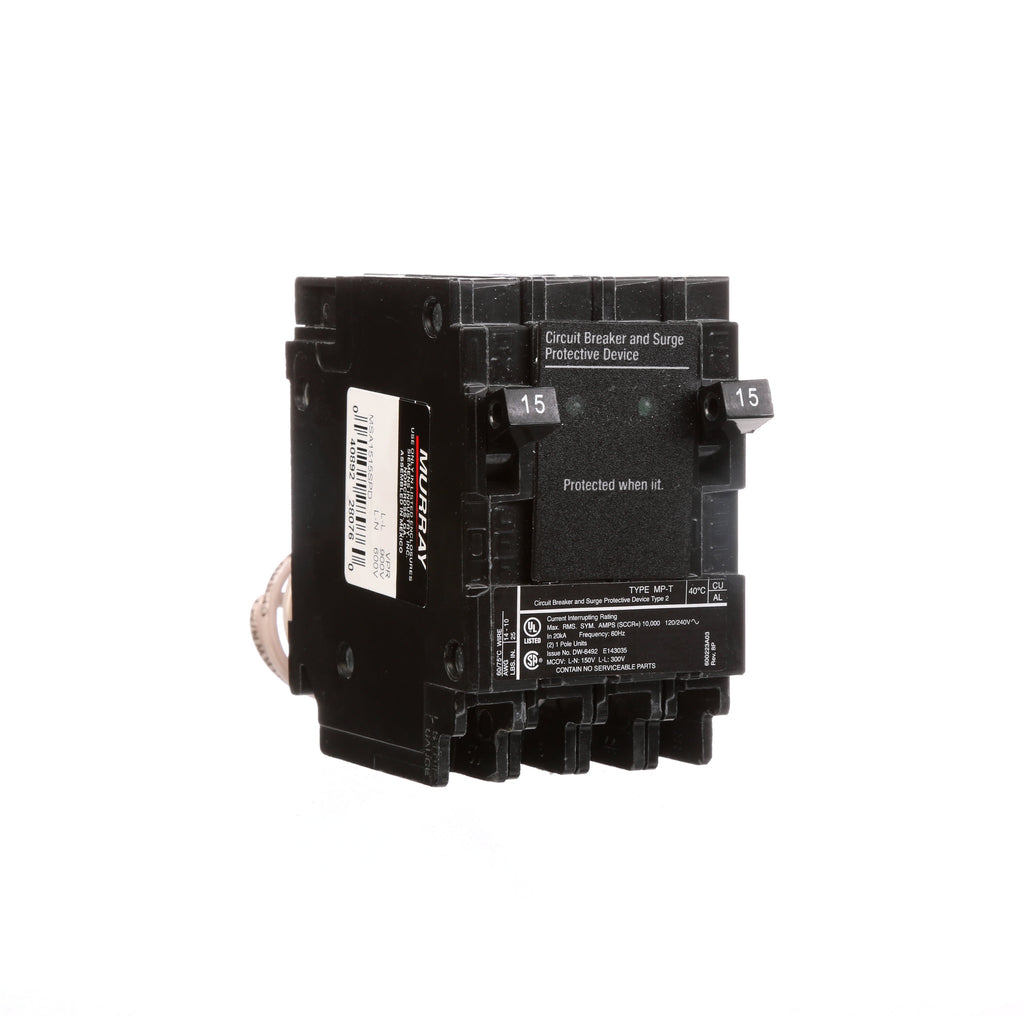

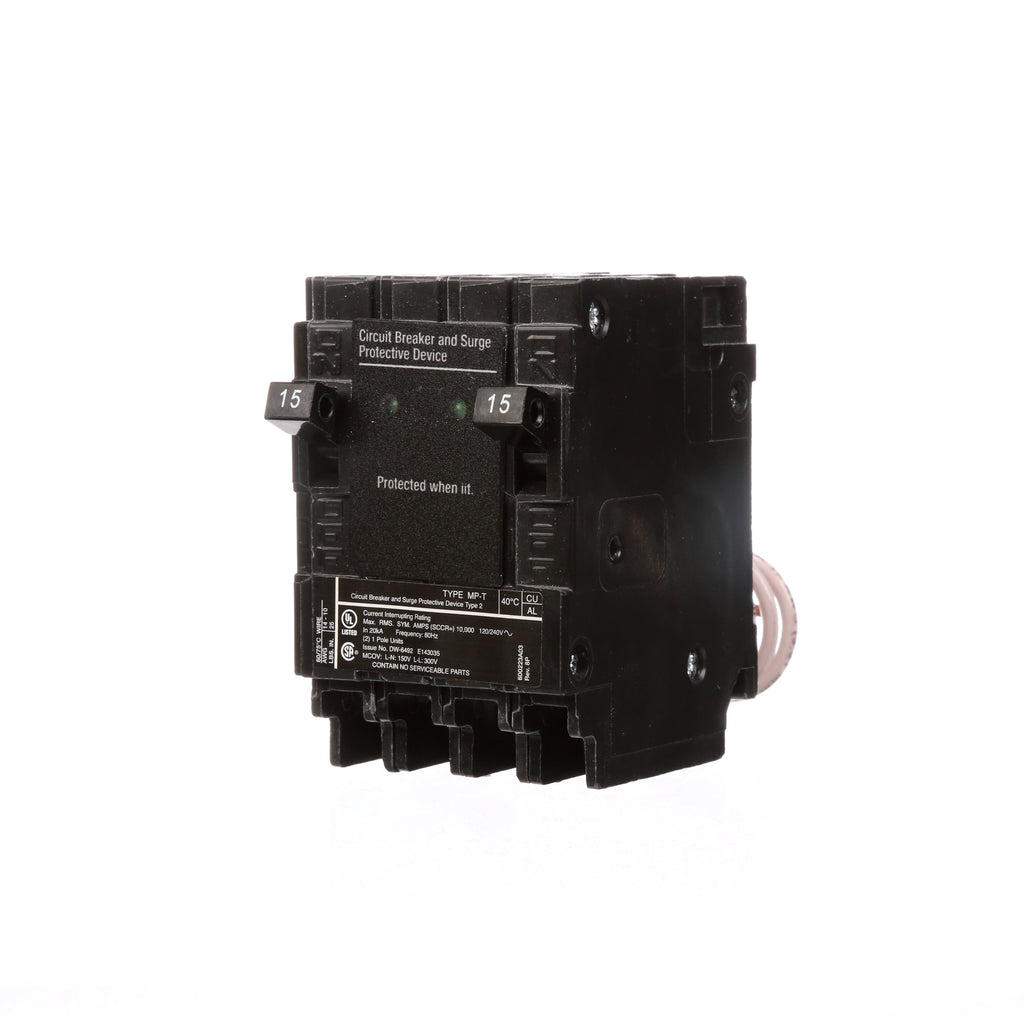

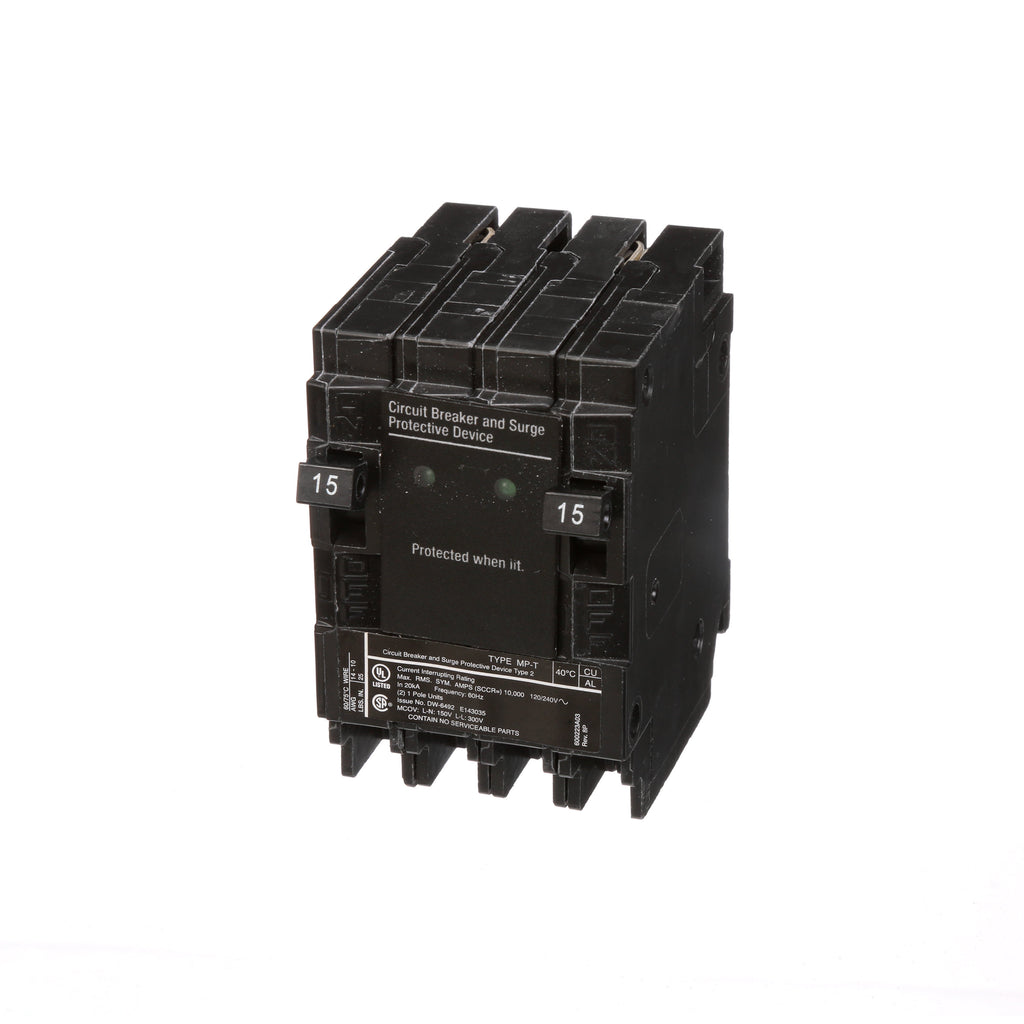

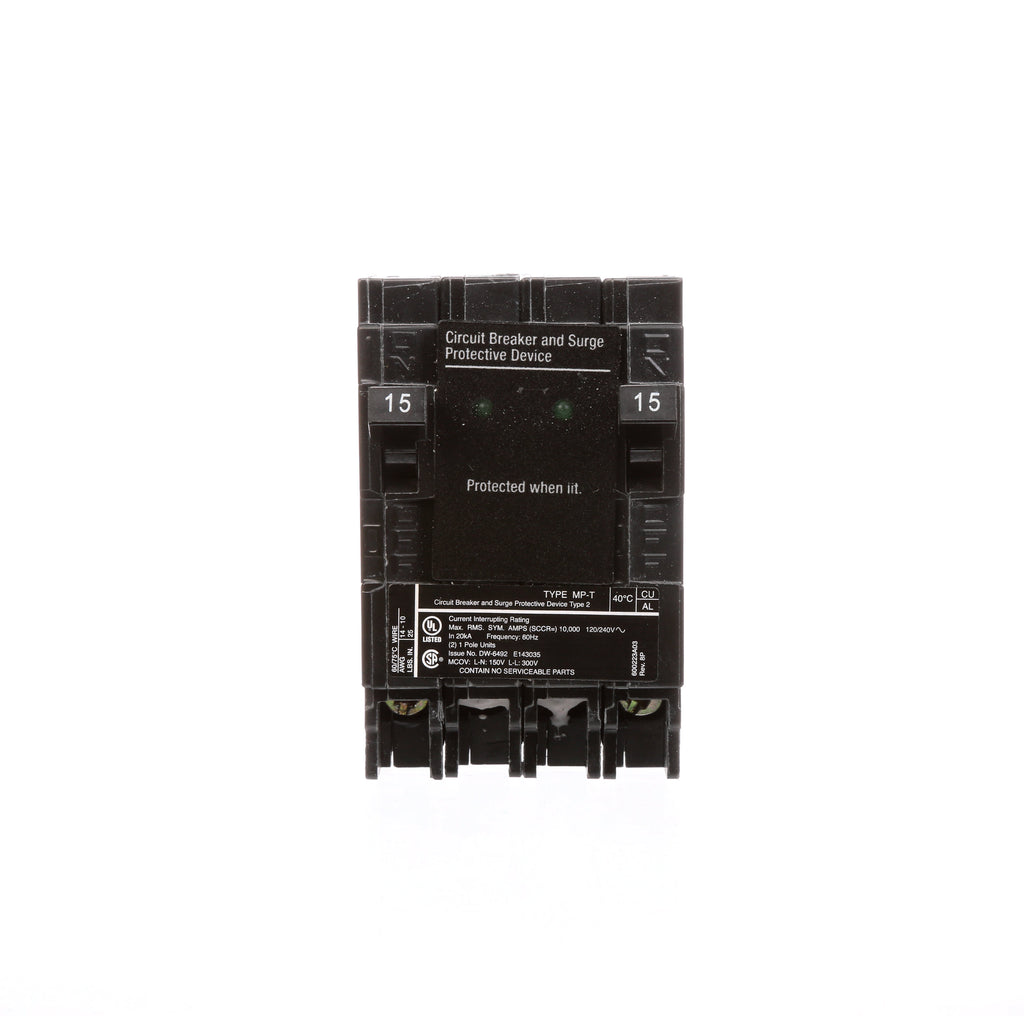

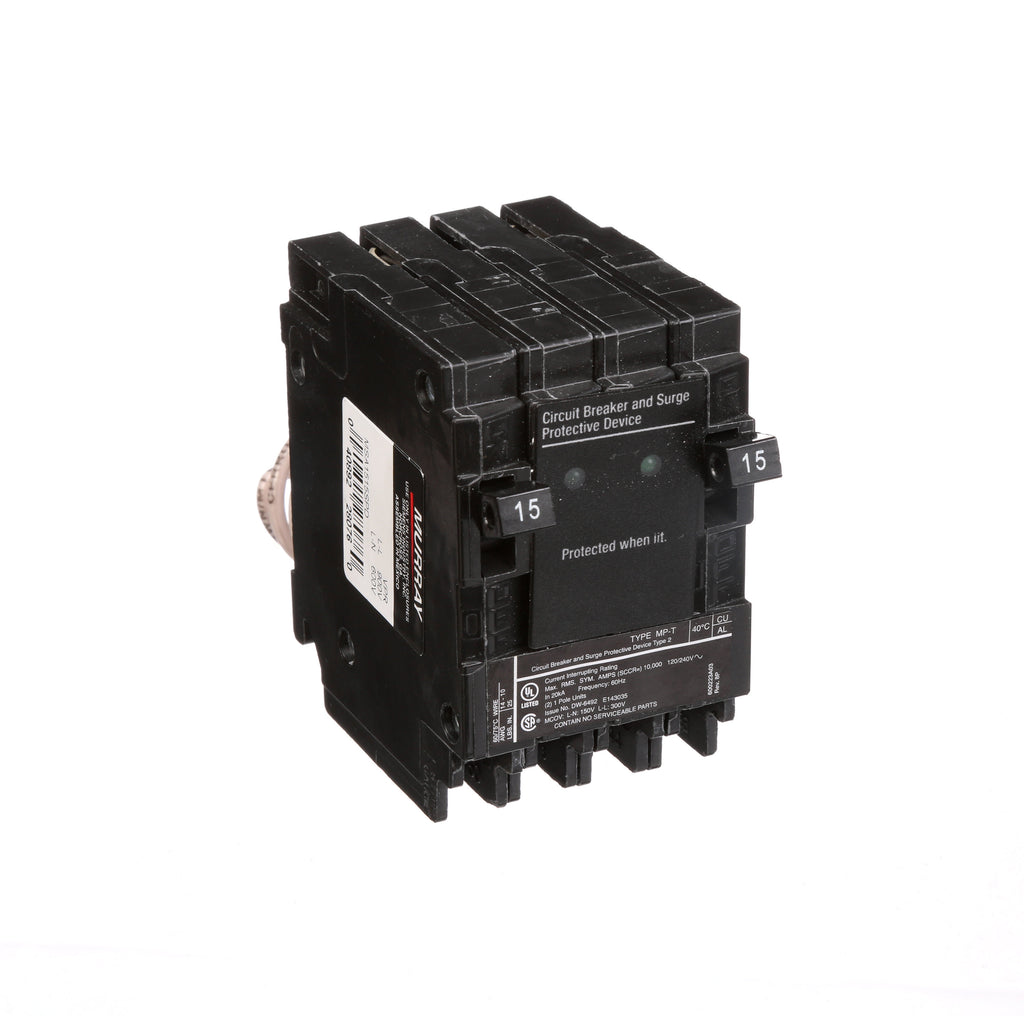

MSA1515SPD
MSA1515SPD is a Murray 15A 120/240V 1-pole circuit breaker with integrated surge protection, designed for reliable electrical safety in residential and commercial applications. This device combines a robust 15A circuit breaker with a secondary surge arrester, providing effective protection against transient voltage events. The MSA1515SPD features a plug-on mounting style compatible with standard 1-inch load centers, and is UL Listed for use with Murray and compatible panels. It offers a maximum impulse rating of 40kA and a discharge current rating of 10,000 amps line-to-neutral, ensuring dependable surge suppression. The breaker is SWD and HACR rated, suitable for a wide range of environments.
- Part Number: MSA1515SPD
- Manufacturer: Murray
- Amperage: 15A
- Voltage: 120/240V AC
- Poles: 1
- Mounting Type: Plug-On
- Interrupt Rating: 10k AIC
- Series/Frame: MSA Series
- Trip Unit: Standard Thermal-Magnetic
- Certifications: UL Listed
- Clamping Voltage: 240V @ 1mA
- Peak Current Rating: 40,000A
Specifications
- Part Number: MSA1515SPD
- Manufacturer : Murray
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Parts & Accessories
- Section : Surge Protection
- Family : MSA Series
- Type : MSA
- Voltage : 120VAC
- Amperage : 15
- Phase : 1
- Poles : 1
- AIC rating : 10kAIC
- Connection : Plug-In/Snap-On
- Protection : Thermal Magnetic
- Compatible Frames : MH-T
Product Data
- UPC : 040892280760
- GTIN : 00040892280760
- Country of Origin : Mexico
- Weight : 0.794
- Certification : UL
