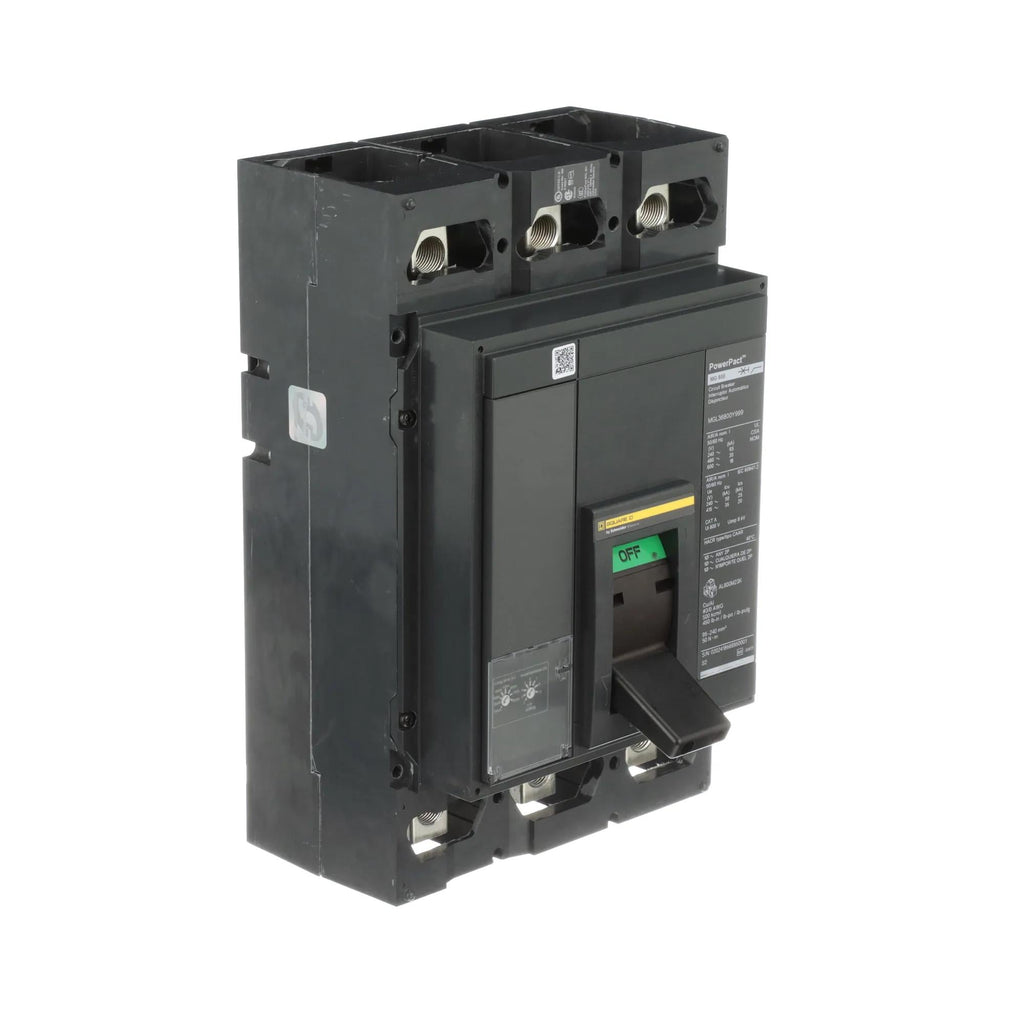

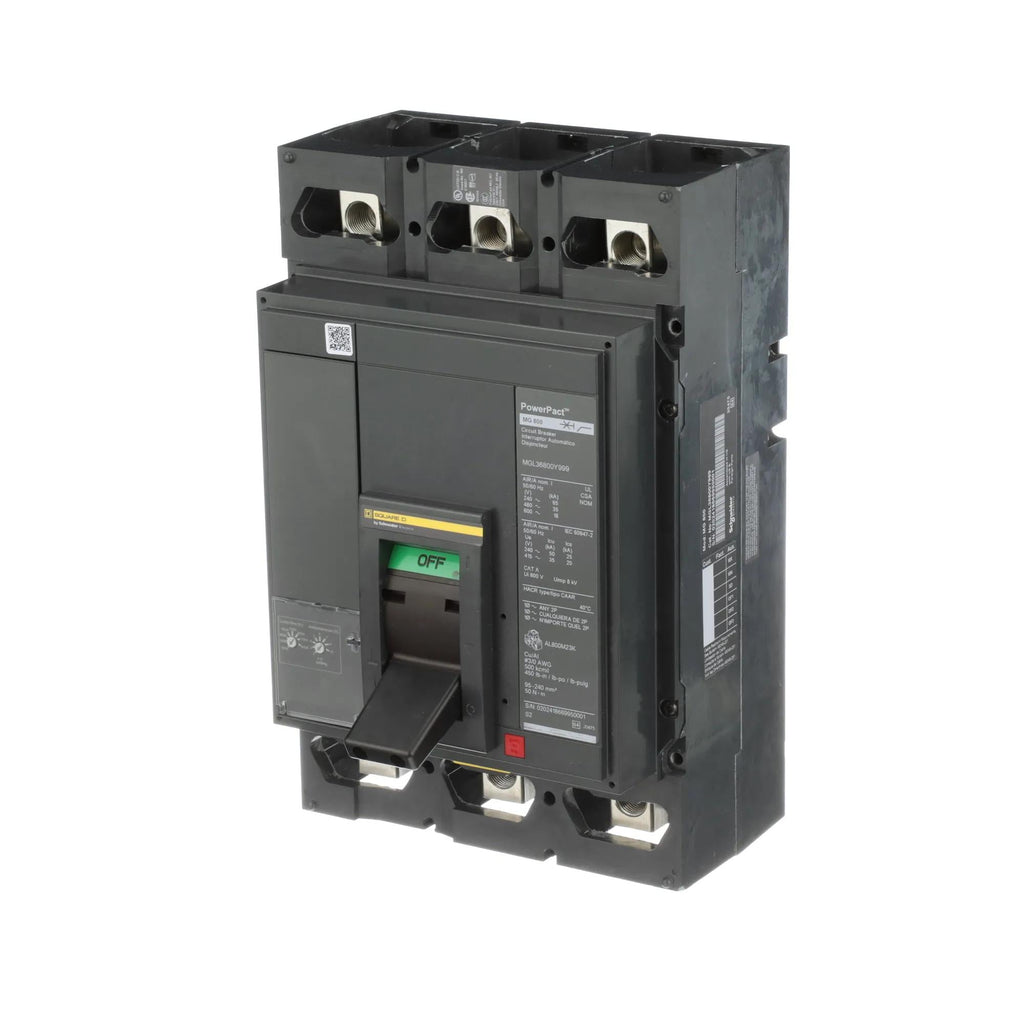

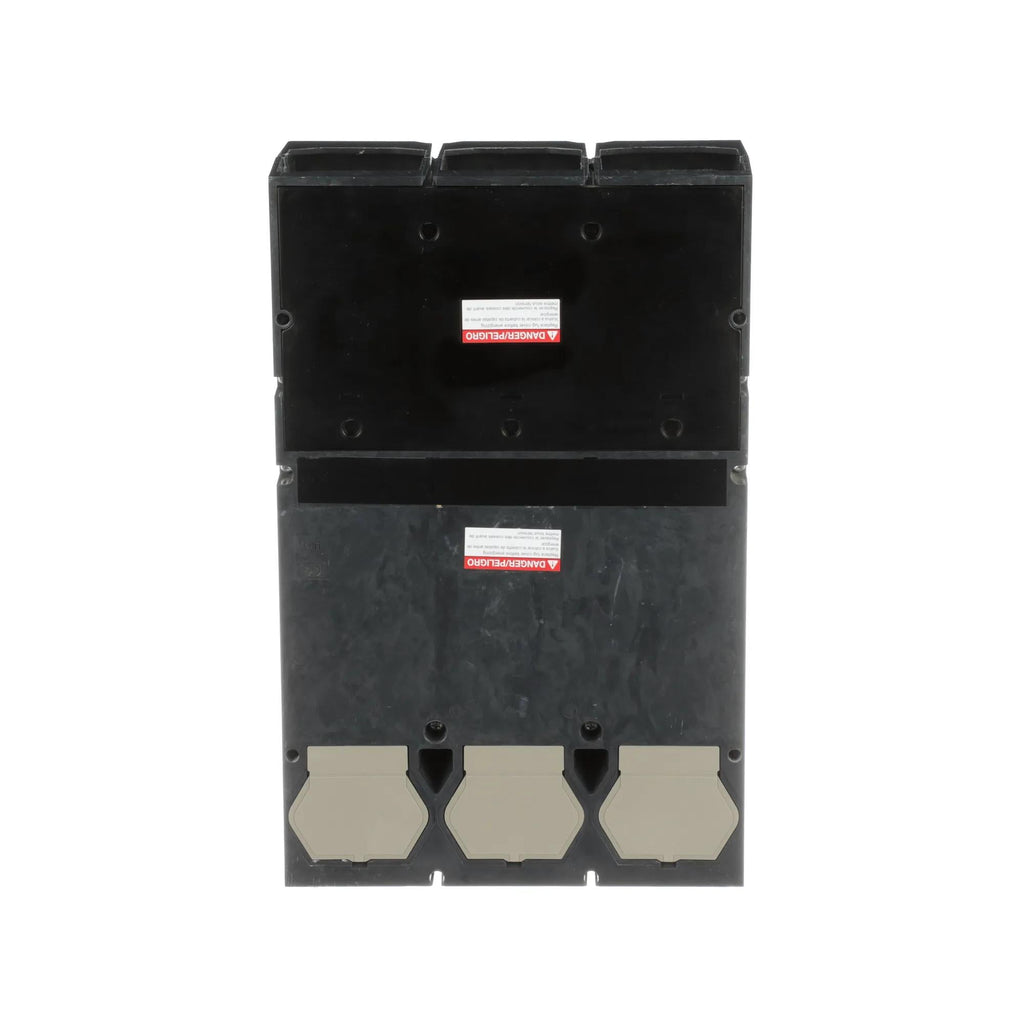

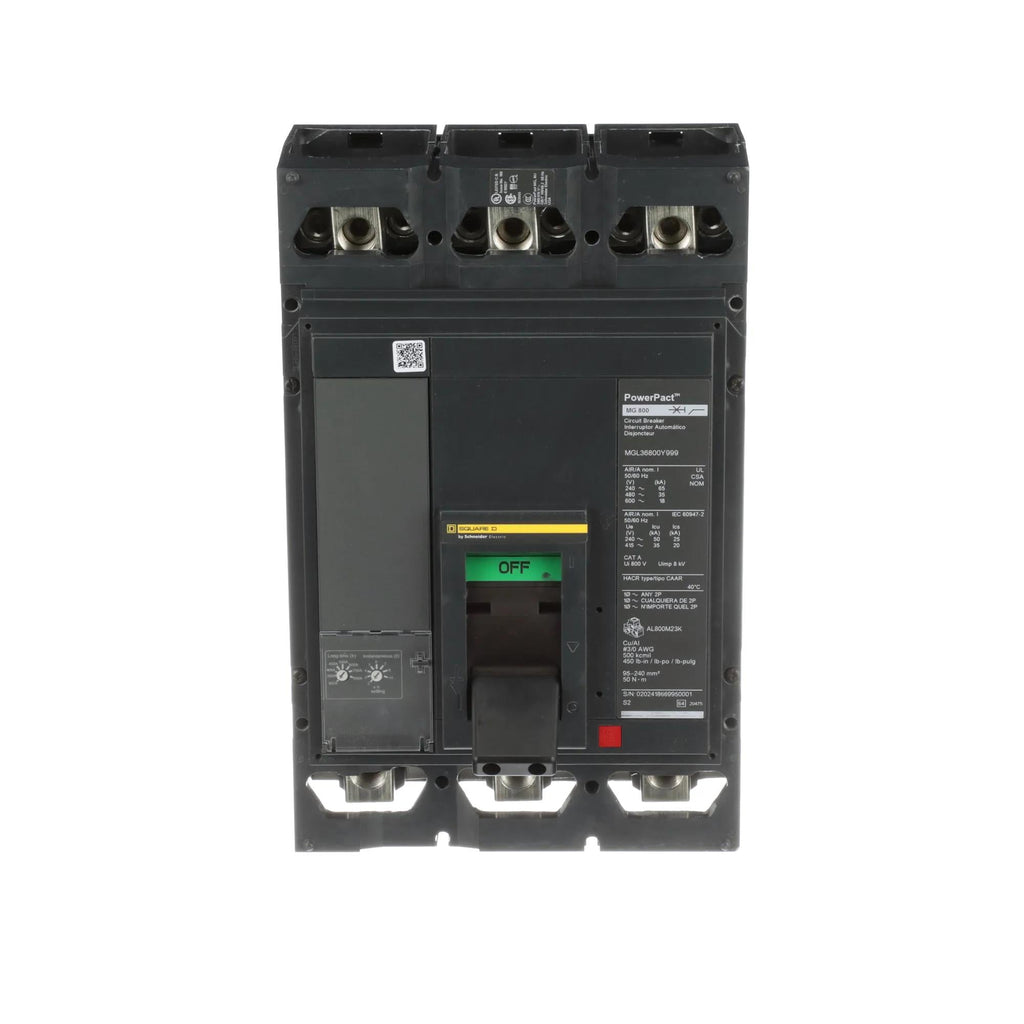

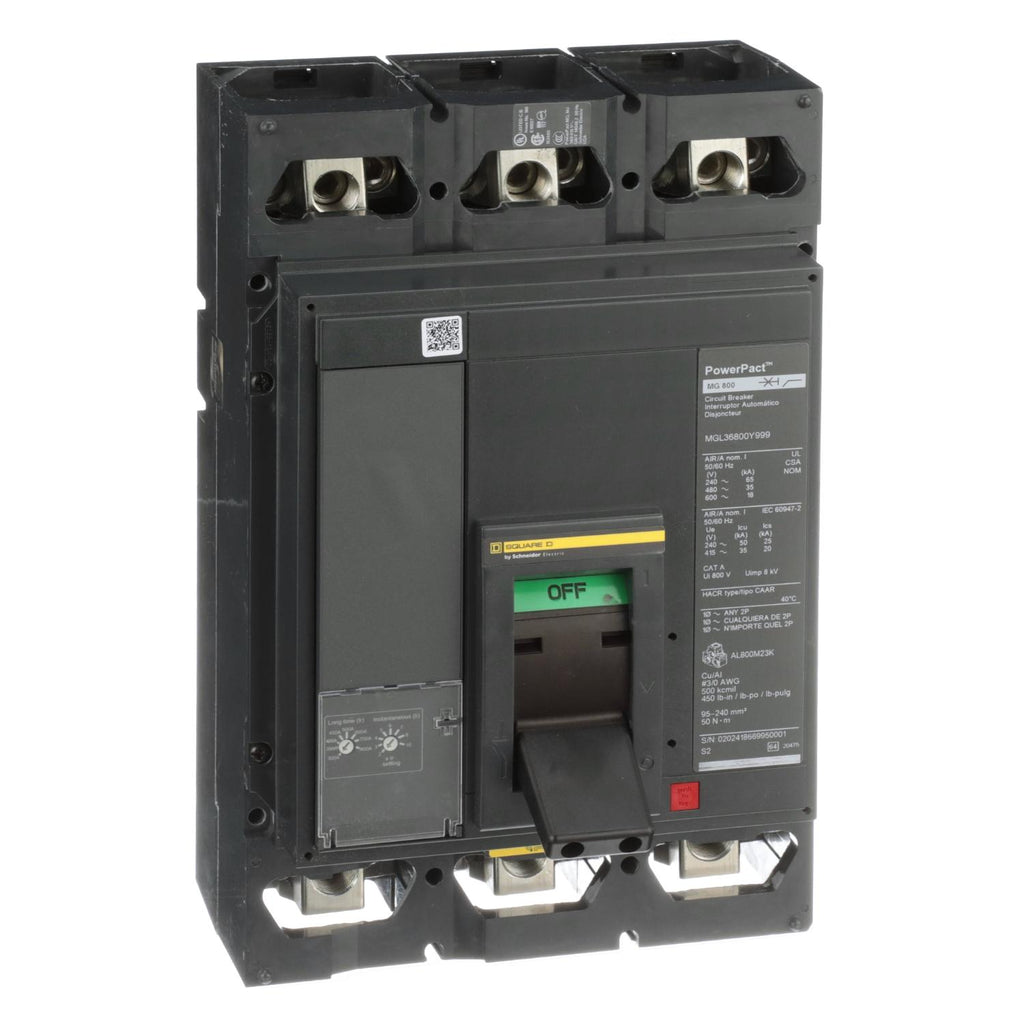

MJL36800E10 - Schneider Electric PowerPacT M Circuit Breaker 300A to 800A, 3 Pole, 600VAC, 25kA Interrupt Rating, Adjustable Trip

MJL36800E10

MJL36800E10 is a Schneider Electric PowerPacT M circuit breaker designed for flexible amperage settings from 300A to 800A with 3 poles and 600VAC rating.This circuit breaker features an adjustable trip unit with an 80% standard rating, 25kA interrupt rating, and lug connections. It supports common mounting holes and handle locations for easy installation. Certified to UL 480, CSA, NMX, and IEC standards, it provides reliable protection against overloads and short circuits.

• Amperage range: 300A to 800A adjustable
• Voltage rating: 600VAC
• Poles: 3
• Interrupt rating: 25kA
• Mounting: Common mounting holes and handle locations
• Trip unit: Adjustable trip, 80% standard rating
• Connection type: Lugs
• Series/Frame: PowerPacT M
• Certifications: UL 480, CSA, NMX, IEC
• Color: Black
• Dimensions: 12.86 in H x 8.27 in W x 8.05 in D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: MJL36800E10
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Voltage : 600
• Amperage : 800
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Solid State

Product Data

• UPC : 606482199272
• GTIN : 3606482199279
• Country of Origin : Mexico
• Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 29.1
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 3 x AWG 3/0...3 x 500 kcmil aluminium/copper
