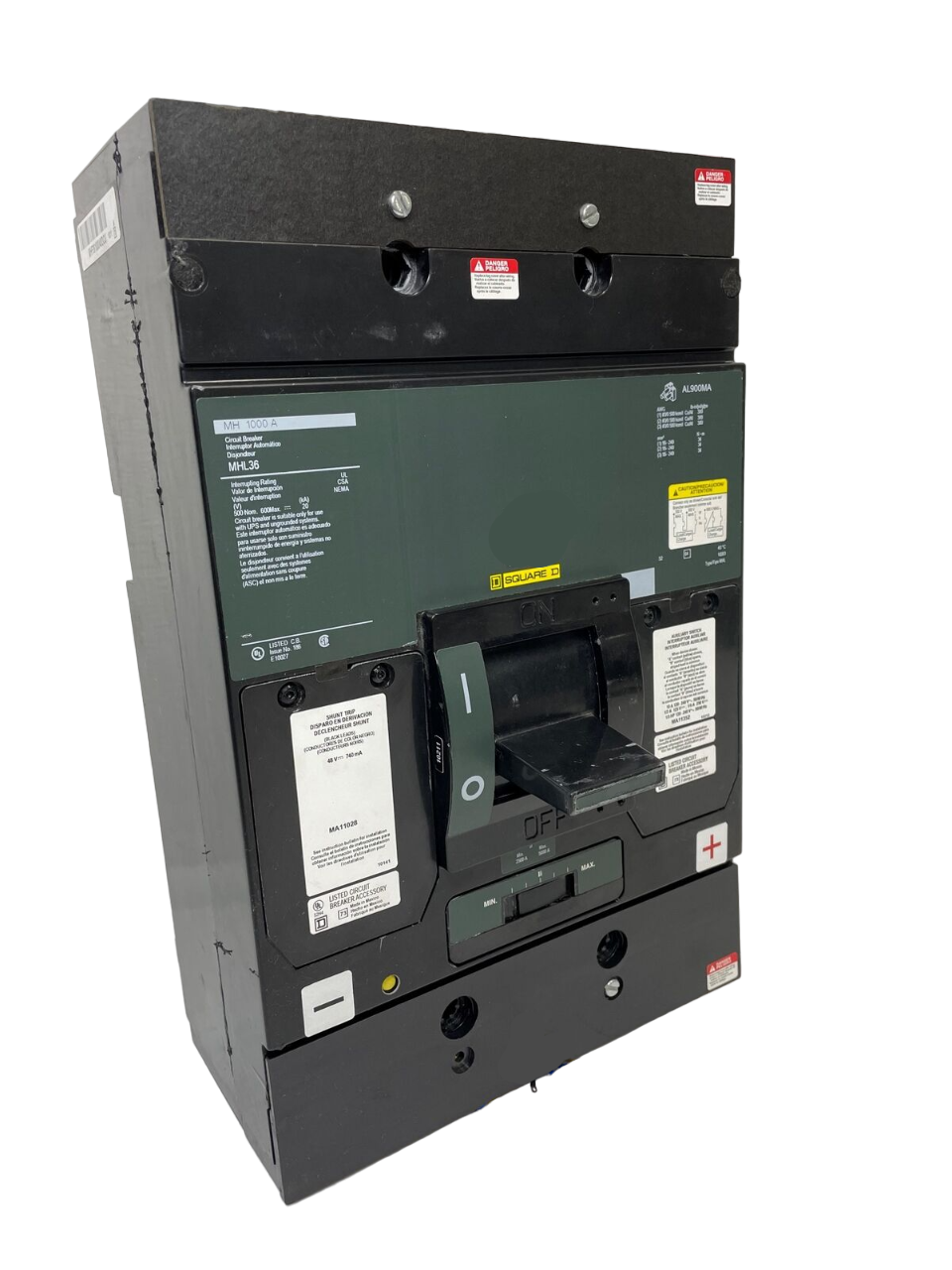

MHL36800 - Square D 800A 600V 3 Pole Molded Case Circuit Breaker MHL Frame Bolt-On

MHL36800

MHL36800 is a Square D molded case circuit breaker designed for 800 amp, 600 volt applications with a 3 pole configuration.This MHL frame style breaker features thermal magnetic protection with non-interchangeable trip units, bolt-on mounting, and line and load end lug terminals. It offers a high interrupting rating of 65kA at 240V and 480V AC, 25kA at 600V AC, and 14kA at 250V DC, suitable for demanding industrial and commercial power distribution needs.

Key Specifications
• Manufacturer: Square D
• Part Number: MHL36800
• Amperage: 800A
• Voltage: 600V AC
• Poles: 3
• Frame Type: MHL
• Mounting Type: Bolt-On
• Interrupting Rating: 65kA @ 240V/480V AC, 25kA @ 600V AC, 14kA @ 250V DC
• Trip Unit: Thermal Magnetic Non-Interchangeable
• Connection: Line and Load Lug Terminals
• Phase: 3
• Certifications: OEM Square D standard

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: MHL36800
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : MHL Series
• Type : MHL
• Voltage : 600
• Amperage : 800
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : M Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 785901031659
• GTIN : 00785901530138
• Country of Origin : Mexico
• Dimensions : Depth 8.05 in (204.47 mm) Width 8.27 in (210.06 mm) Height 12.86 in (326.64 mm)
• Weight : 40
