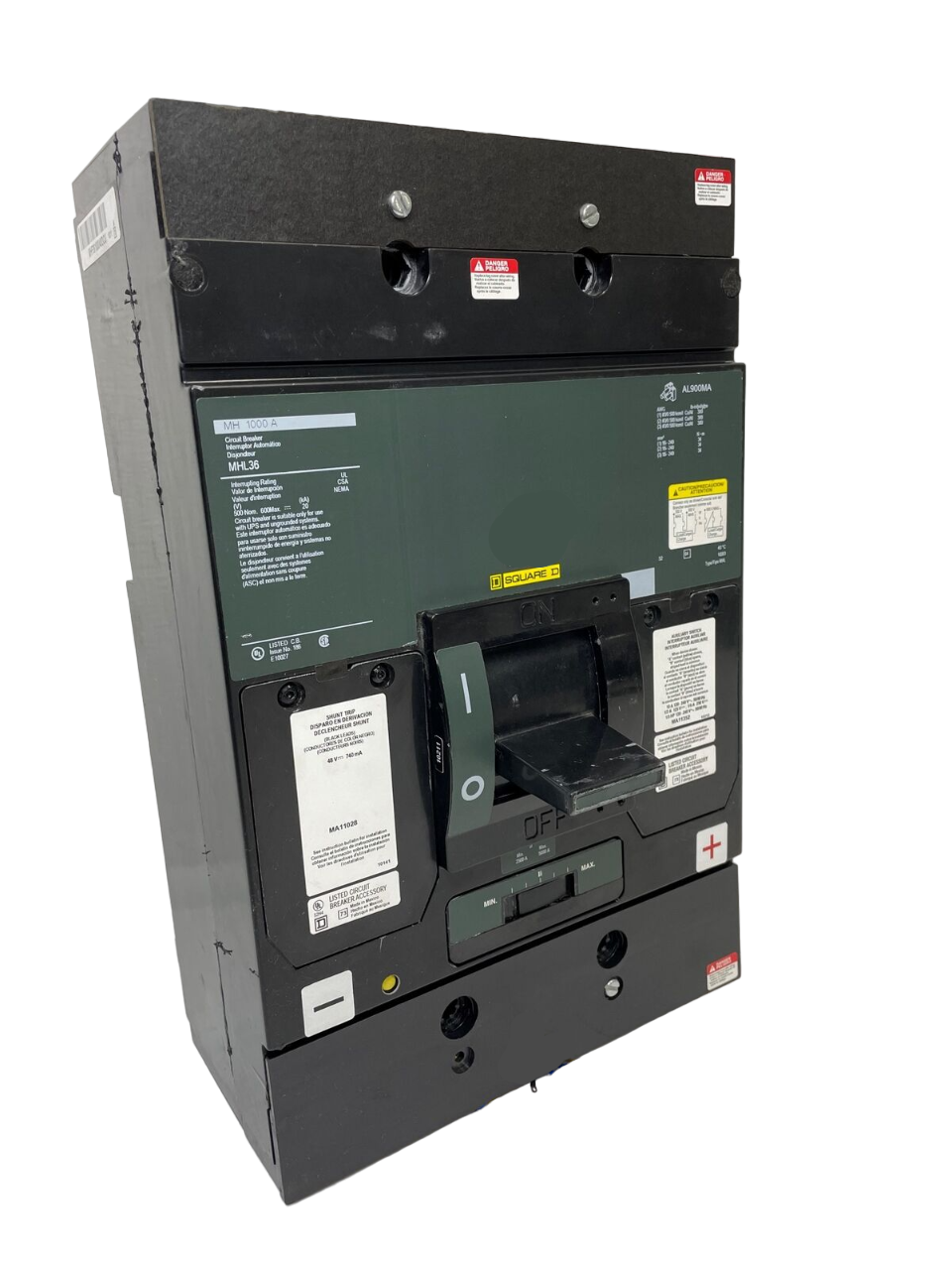

MHL3650032DC - Square D 3 Pole 500A 600V Molded Case Circuit Breaker 20kA@500VDC

MHL3650032DC

MHL3650032DC is a Square D Powerpact molded case circuit breaker designed for high-current DC applications. This 3 pole, 500 amp, 600 volt circuit breaker provides reliable protection in demanding environments with a 20kA interrupt rating at 500VDC. The MHL3650032DC features a lug-to-lug connection style and is built for permanent trip applications, making it suitable for industrial and commercial power distribution systems. This breaker is part of the Square D Powerpact MHL-DC series, known for robust construction and dependable performance. It is engineered for use in DC circuits and is designed to meet the requirements of UL listed and CSA certified installations. The unit is equipped with a thermal magnetic trip unit for accurate overcurrent protection.

• Part Number: MHL3650032DC
• Manufacturer: Square D
• Series: Powerpact MHL-DC
• Poles: 3
• Rated Current: 500A
• Rated Voltage: 600V
• Interrupt Rating: 20kA@500VDC
• Mounting Type: Unit Mount Lug
• Connection Type: Lug to Lug
• Trip Unit: Thermal Magnetic
• Certifications: UL Listed, CSA Certified
• Application: DC Power Distribution

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: MHL3650032DC
• Manufacturer : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : MHL Series
• Type : MHL
• Voltage : 600
• Amperage : 500
• Phase : 3
• Poles : 3
• AIC rating : 20kA@500VDC
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : M Frame
• Protection : Thermal Magnetic

Product Data

• Dimensions : Depth 8.05 in (204.47 mm) Width 8.27 in (210.06 mm) Height 12.86 in (326.64 mm)
• Weight : 40
