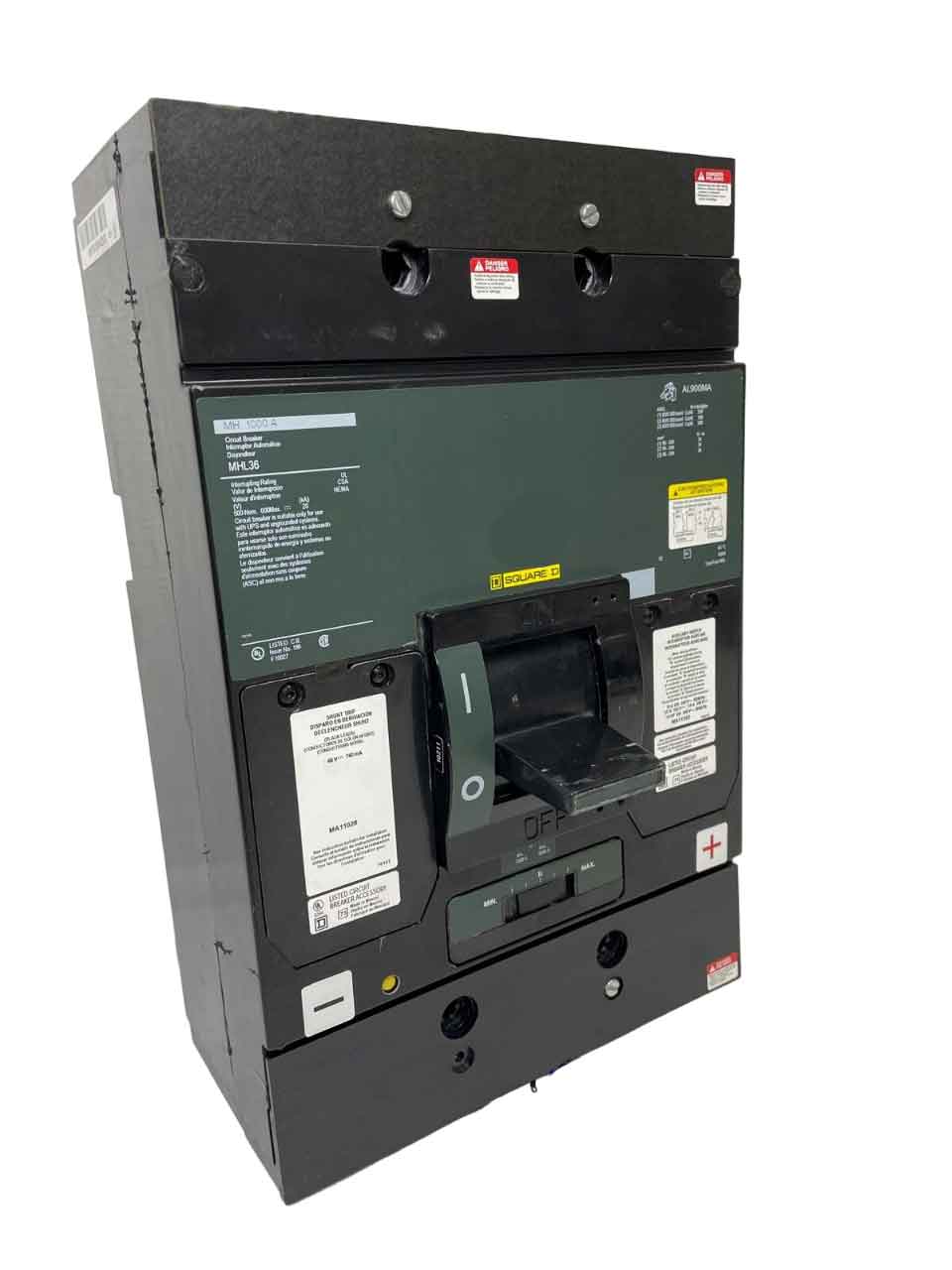

MHL36400 - Square D 400A 600V 3-Pole Molded Case Circuit Breaker MHL Series

MHL36400

MHL36400 is a 400 Amp, 600 Volt, 3-Pole molded case circuit breaker from Square D's MHL Series designed for reliable thermal magnetic protection.This circuit breaker features a thermal magnetic trip unit with an 80% nominal trip rating, a high interrupting capacity of 25kA at 600VAC and 65kA at 480VAC, and includes line and load lugs for easy feed-thru installation. It is rated for 3 poles and suitable for industrial and commercial power distribution applications.

Key Specifications
• Amperage: 400A
• Voltage Rating: 600VAC, 250VDC
• Poles: 3
• Interrupting Capacity: 25kA @ 600VAC, 65kA @ 480VAC
• Series/Frame: MHL
• Trip Unit: Thermal Magnetic, ET 1.0
• Mounting Type: Molded Case, Feed-Thru
• Includes Line and Load Lugs
• Nominal Trip Rating: 80%
• Frequency: 60Hz
• Operating Temperature: 40°C
• Certifications: OEM Authentic Square D
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: MHL36400
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : MHL Series
• Type : MHL
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Frame Size : M Frame
• Protection : Thermal Magnetic



Product Data

• UPC : 785901083726
• GTIN : 00785901083726
• Country of Origin : Mexico
• Dimensions : Depth 8.05 in (204.47 mm) Width 8.27 in (210.06 mm) Height 12.86 in (326.64 mm)
• Weight : 40
• Certification : UL
• Wire Size : 3/0 AWG to 500KCmil
