MHL3610001386 - Square D MHL 1000A 600V 3 Pole Molded Case Circuit Breaker

MHL3610001386

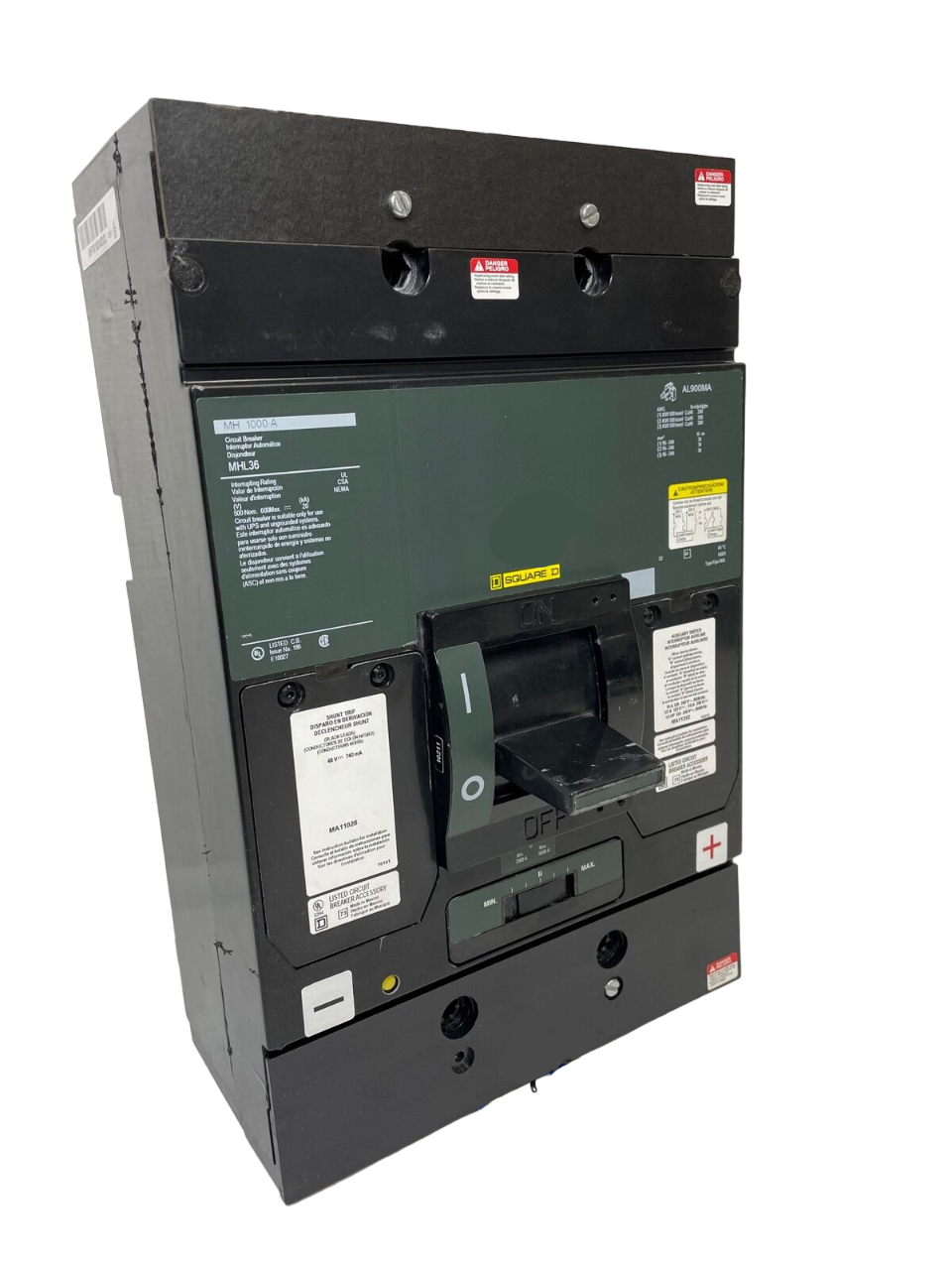

MHL3610001386 is a Square D MHL series molded case circuit breaker designed for reliable protection in industrial and commercial power distribution systems. This 3-pole, 1000A, 600V circuit breaker features a feed-thru mounting style and is equipped with a non-interchangeable LI (Long-Time and Instantaneous) trip unit for precise overcurrent protection. The breaker is built for high interrupting capacity and is suitable for demanding electrical environments. This Square D MHL3610001386 circuit breaker is engineered for durability and safety, providing thermal magnetic protection and compatibility with standard wire gauges. It is ideal for main or feeder applications where high current and voltage ratings are required.

• Part Number: MHL3610001386
• Manufacturer: Square D
• Series: MHL
• Amperage: 1000A
• Voltage: 600V
• Poles: 3
• Mounting Type: Feed-Thru
• Interrupt Rating: 65kA @ 480V
• Trip Unit: LI (Long-Time and Instantaneous)
• Protection Type: Thermal Magnetic
• Application: Molded Case Circuit Breaker

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with 24VDC shunt trip

Specifications

• Part Number: MHL3610001386
• Manufacturer : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : MHL Series
• Type : MHL
• Voltage : 600
• Amperage : 1000
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : M Frame
• Protection : Thermal Magnetic

Product Data

• Dimensions : Depth 8.05 in (204.47 mm) Width 8.27 in (210.06 mm) Height 12.86 in (326.64 mm)
• Weight : 40
