Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Enclosure
Description
MH32

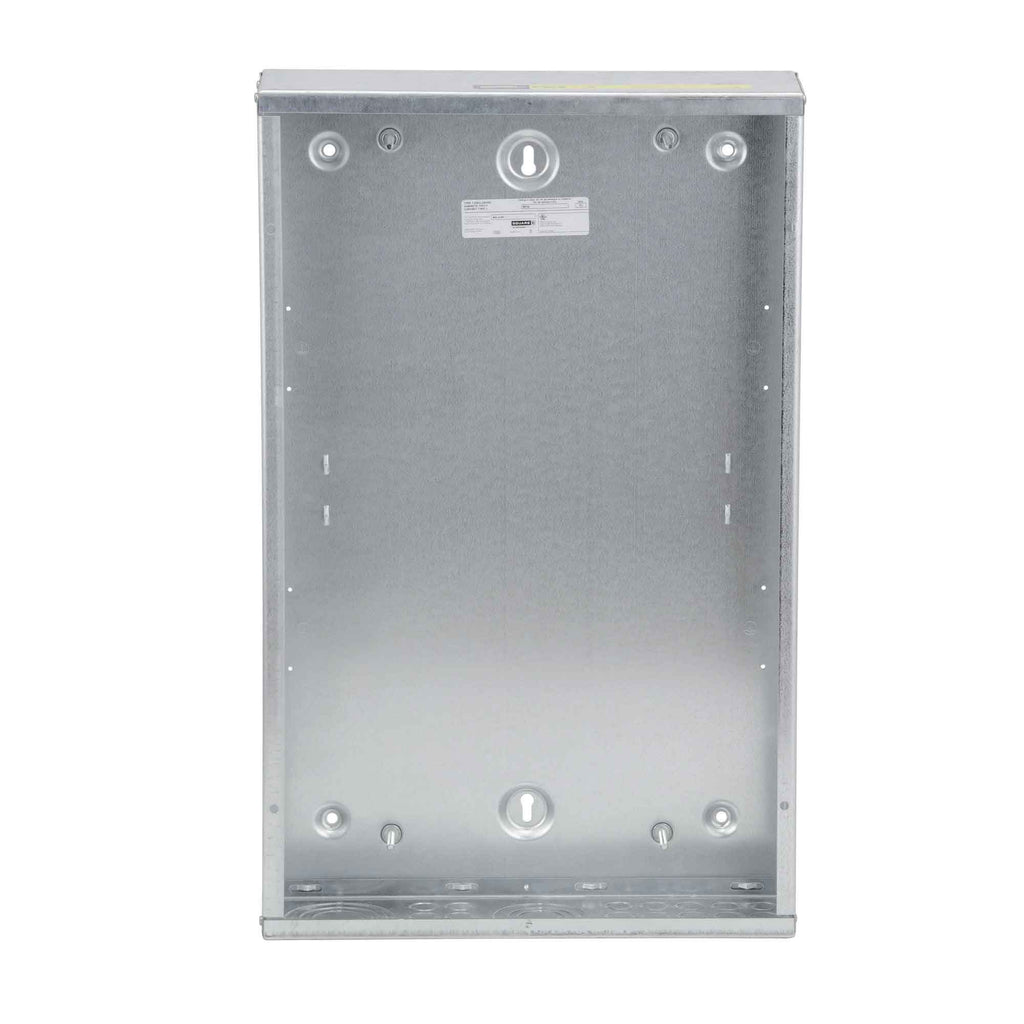

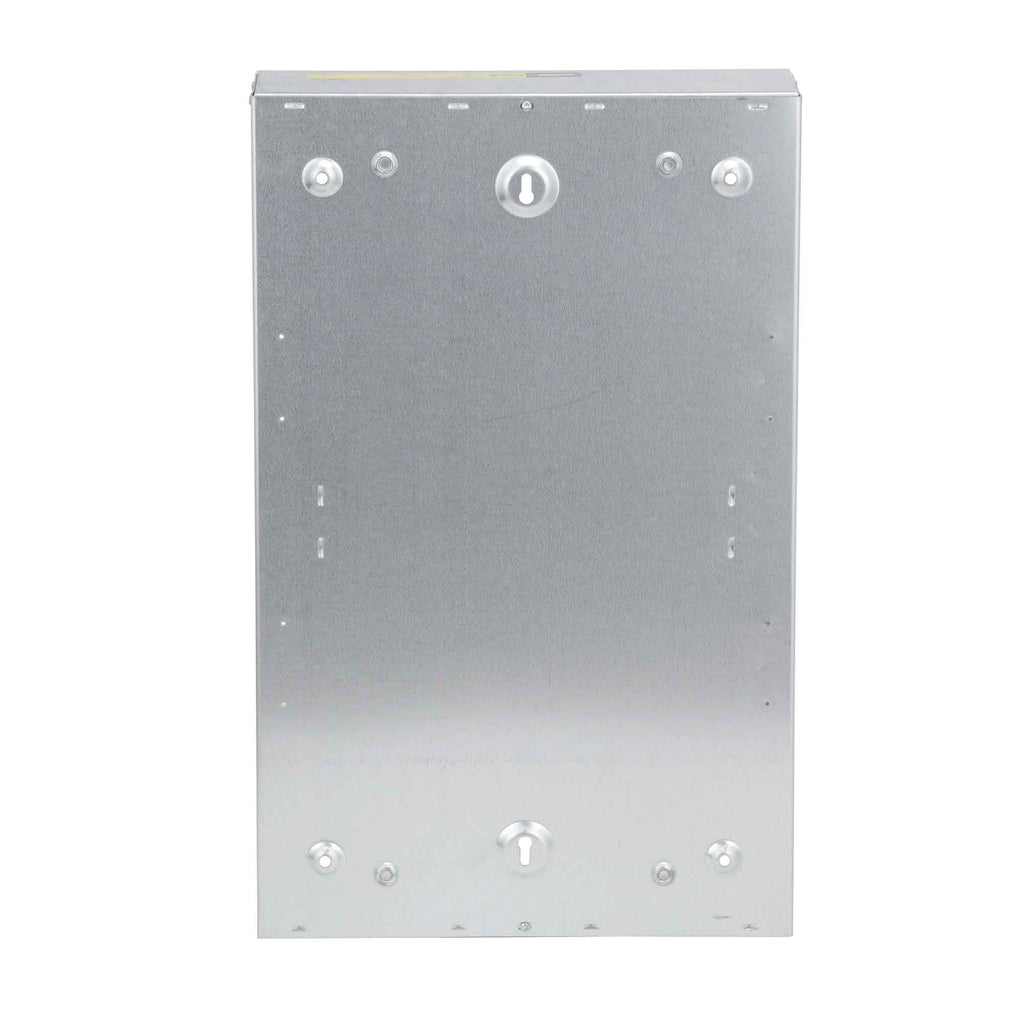

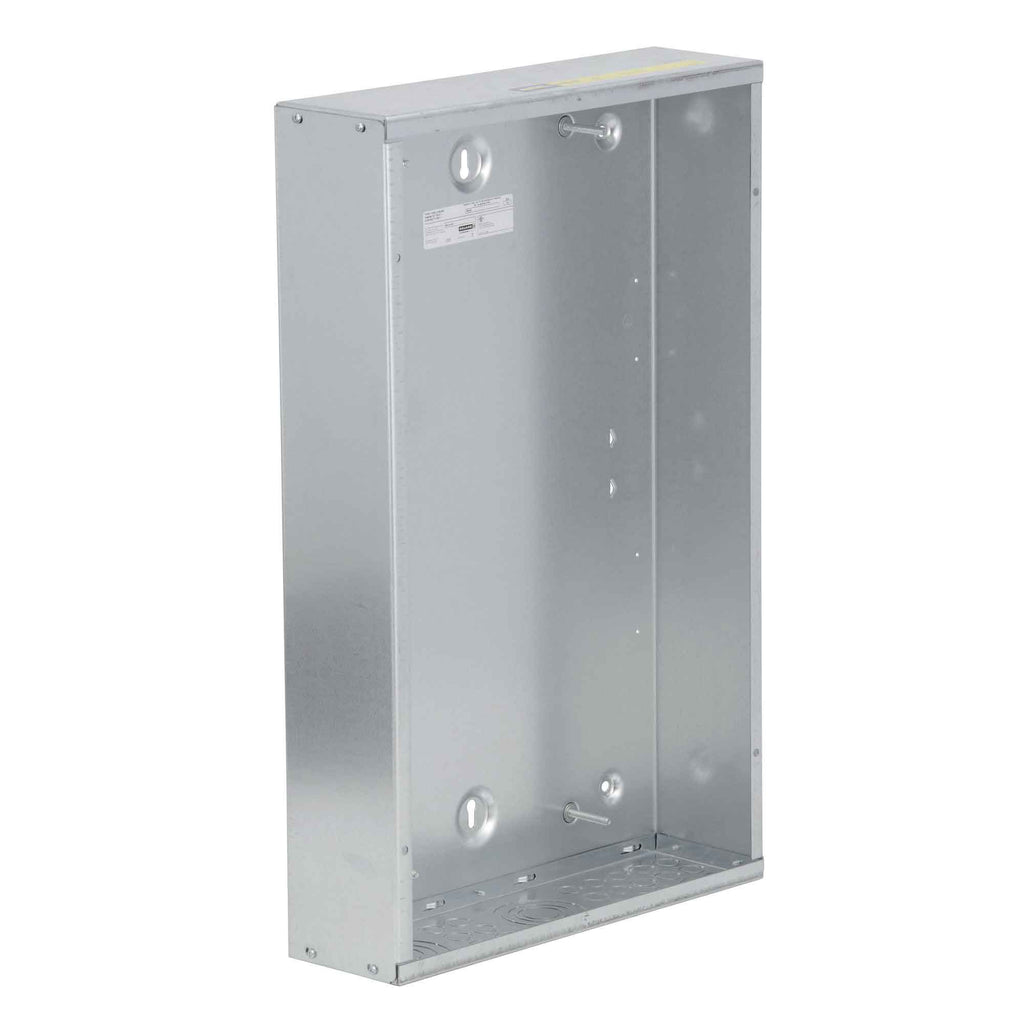

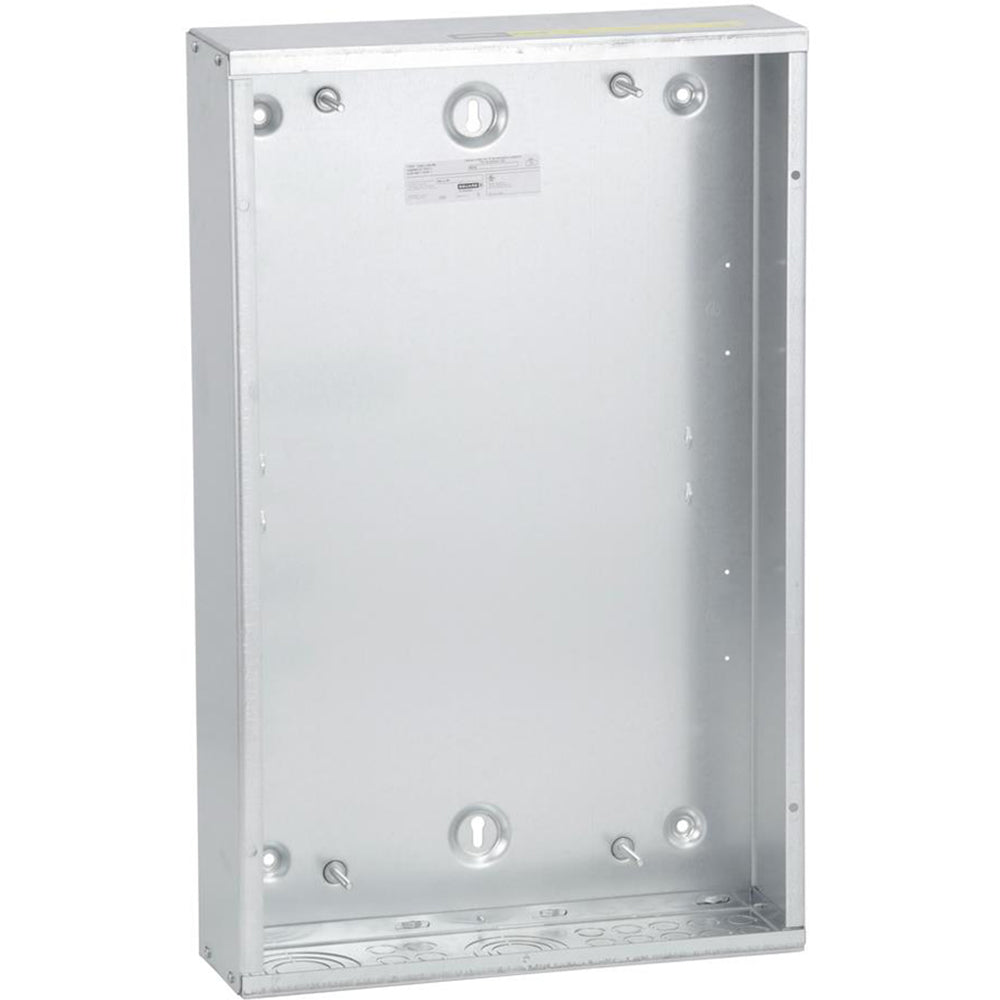

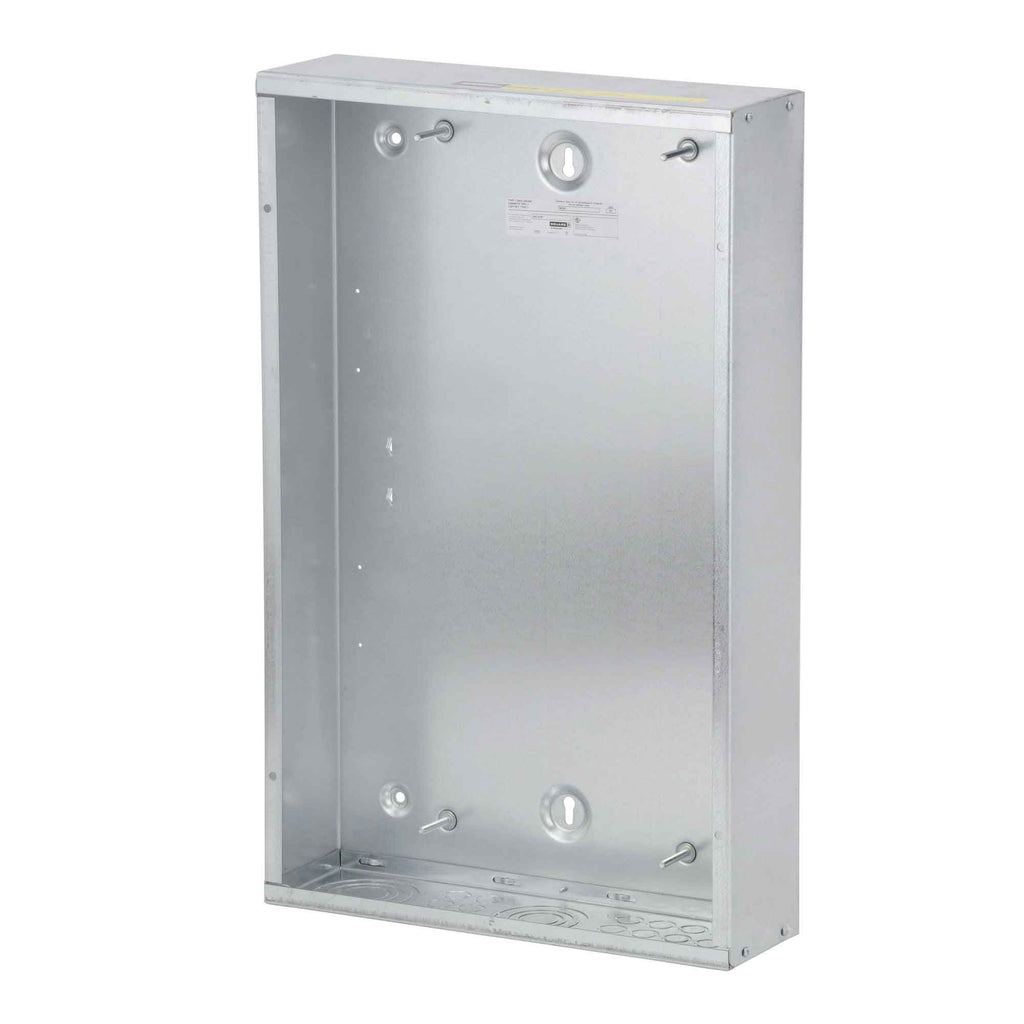

MH32 is a Square D circuit breaker enclosure designed for reliable power distribution applications.MH32 features a NEMA 1 steel enclosure with dimensions 20 in W x 32 in H x 5.75 in D, supporting up to 225 amps at 240 volts. It is compatible with NQ and NF panelboards and offers modular construction for easy assembly or modification. This enclosure is UL listed for use in the USA and Canada and provides flexibility with available accessories and replacement parts.
- Key Specifications
- Manufacturer: Square D
- Part Number: MH32
- Amperage: 225 A
- Voltage: 240 V
- Enclosure Type: NEMA 1
- Material: Steel
- Dimensions: 20 in W x 32 in H x 5.75 in D
- Compatible with NQ/NF panelboards
- UL Listed for USA and Canada
- Modular construction for easy assembly
- Supports main lug or main breaker interiors
Additional Information
Please note that circuit breakers are not included with the enclosures and must be purchased separately.
Specifications
- Part Number: MH32
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Enclosure
- Family : NQOD
- Type : MH
- Voltage : 240
- Amperage : 225
- Nema Rating : 1
Product Data
- UPC : 785901027812
- GTIN : 00785901027812
- Country of Origin : United States

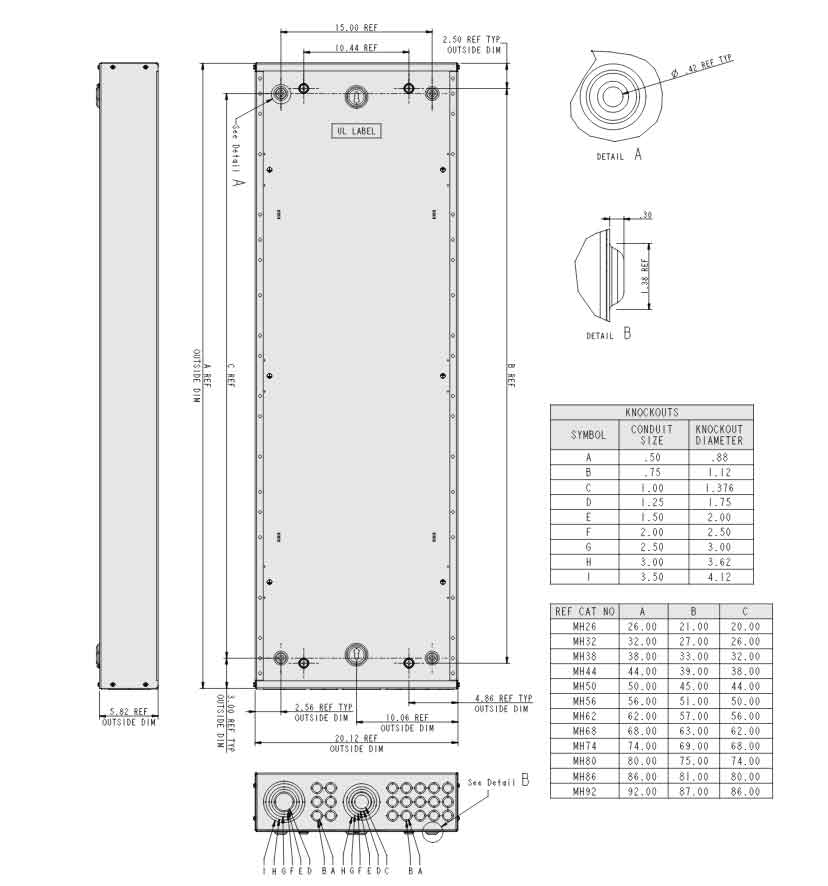

- Dimensions : 32 in (812.8 mm) x 20 in (508 mm) x 5.75 in (146.05 mm) (Height x Width x Depth)
- Weight : 24.149
- Certification : cULus
