Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Trip Units & Programmers
Description
MES3800LSI

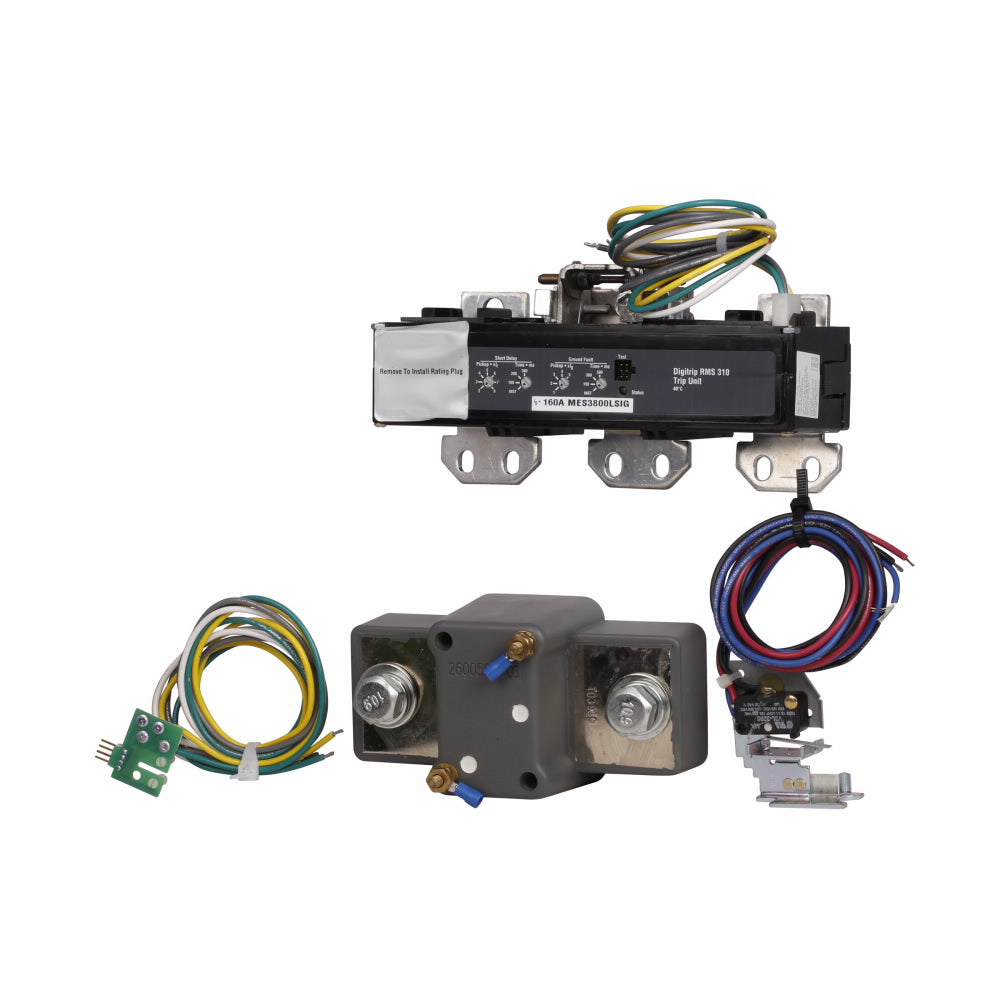

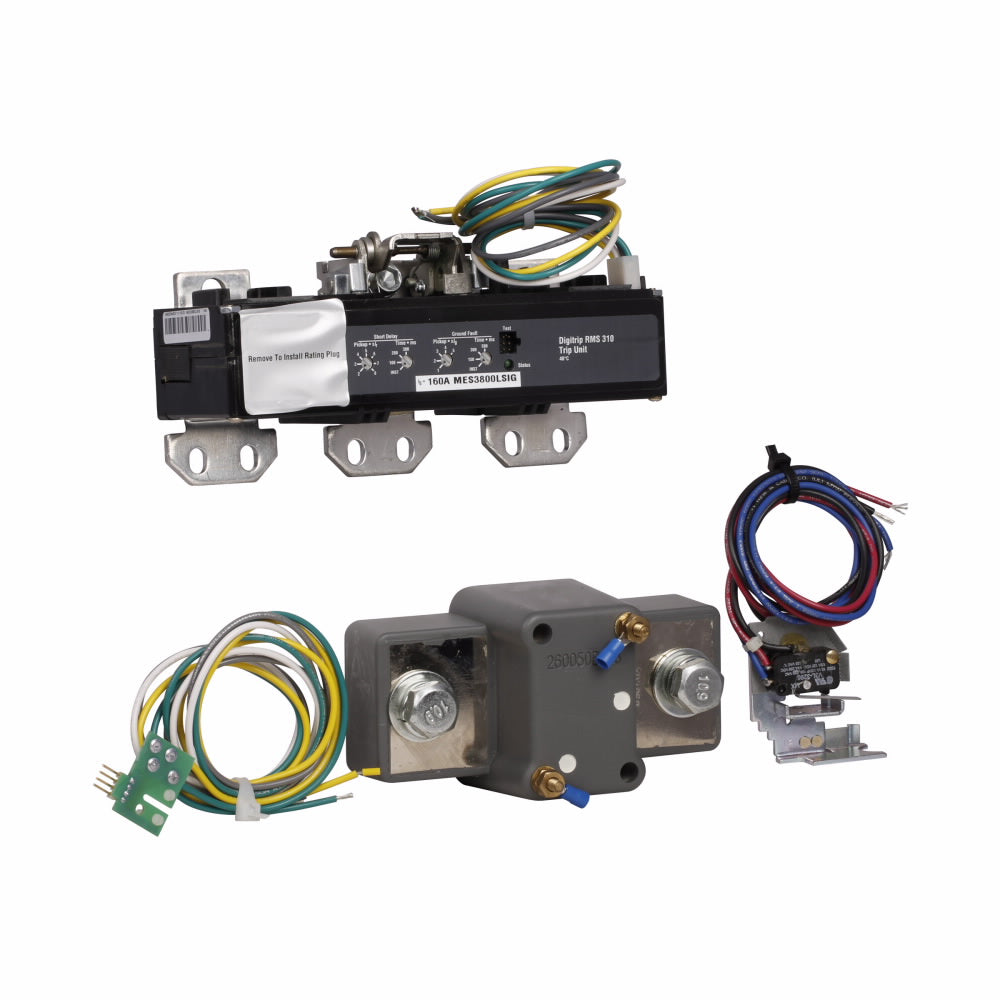

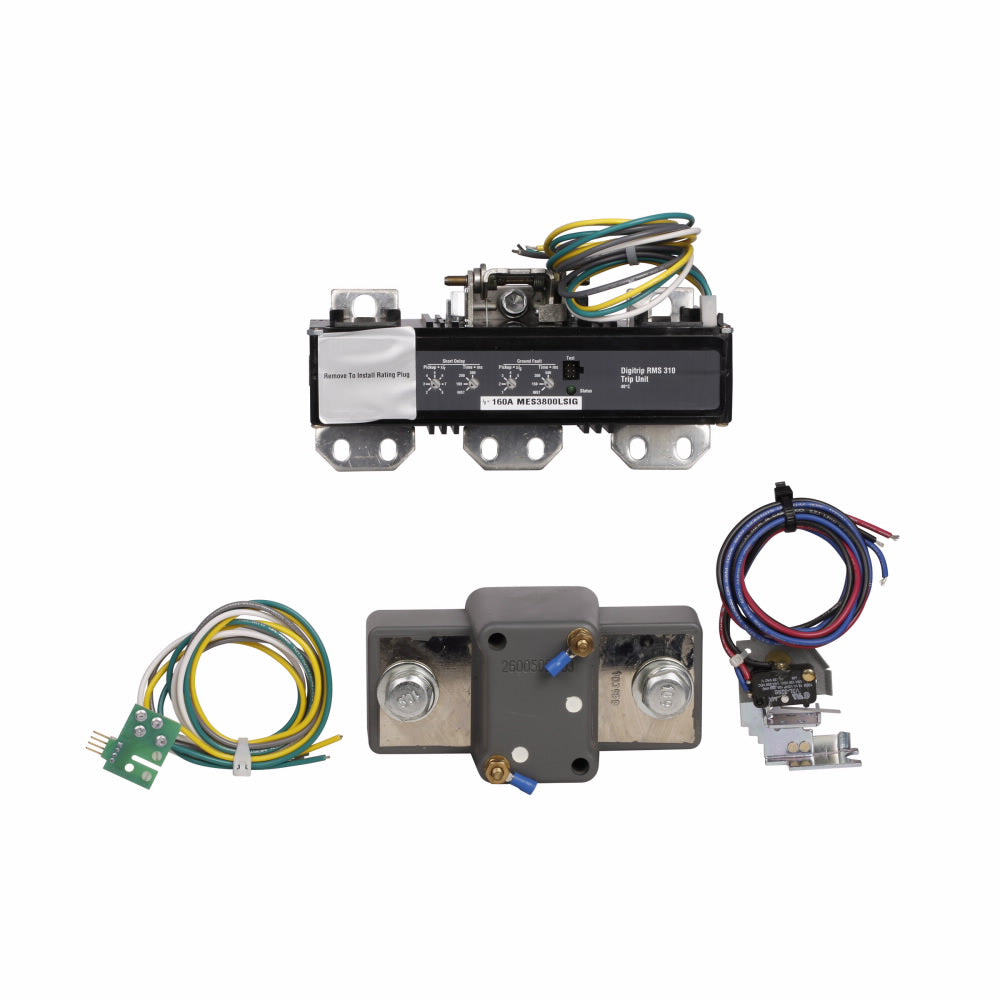

MES3800LSI is an Eaton molded case circuit breaker accessory trip unit designed for Series C applications. This electronic trip unit features 800 ampere rating with three-pole configuration and 600VAC voltage rating, incorporating LSI (Long-Time, Short-Time, Instantaneous) protection functions and ground fault capability. The unit is compatible with Frame J-K molded case circuit breakers and provides reliable overcurrent and ground fault protection for industrial and commercial power distribution systems.
- Amperage Rating: 800 A
- Voltage Rating: 600 VAC
- Number of Poles: 3
- Trip Type: LSI (Long-Time, Short-Time, Instantaneous)
- Frame Size: Frame J-K
- Series: Series C
- Type: Electronic Trip Unit
- Protection: Ground Fault
- Certifications: UL Listed
- Product Weight: 4.5 lb
Specifications
- Part Number: MES3800LSI
- Manufacturer : Cutler Hammer
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Trip Units & Programmers
- Family : Series C
- Type : ME
- Voltage : 600
- Poles : 3
- Functions : LSI - Long-Time, Short-Time and Instantaneous
- Frame Size : 800
- Amperage Maximum : 800
- Amperage Minimum : 800
- Protection : Solid State
Product Data
- UPC : 782114371367
- GTIN : 00782114371367
- Country of Origin : United States
- Dimensions : 9 in x 6 in x 5.5 in (Length/Depth x Height x Width)
- Weight : 4.5
- Certification : UL Listed and CSA Certified
