Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
MD63T600

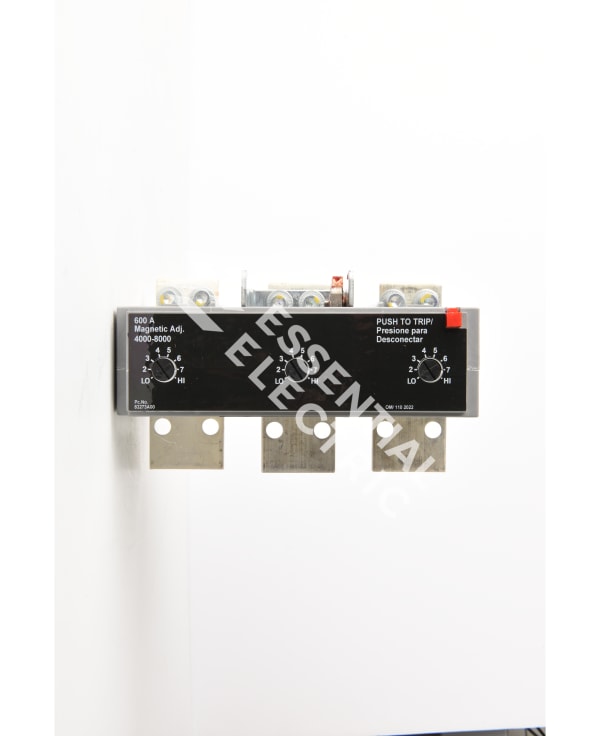

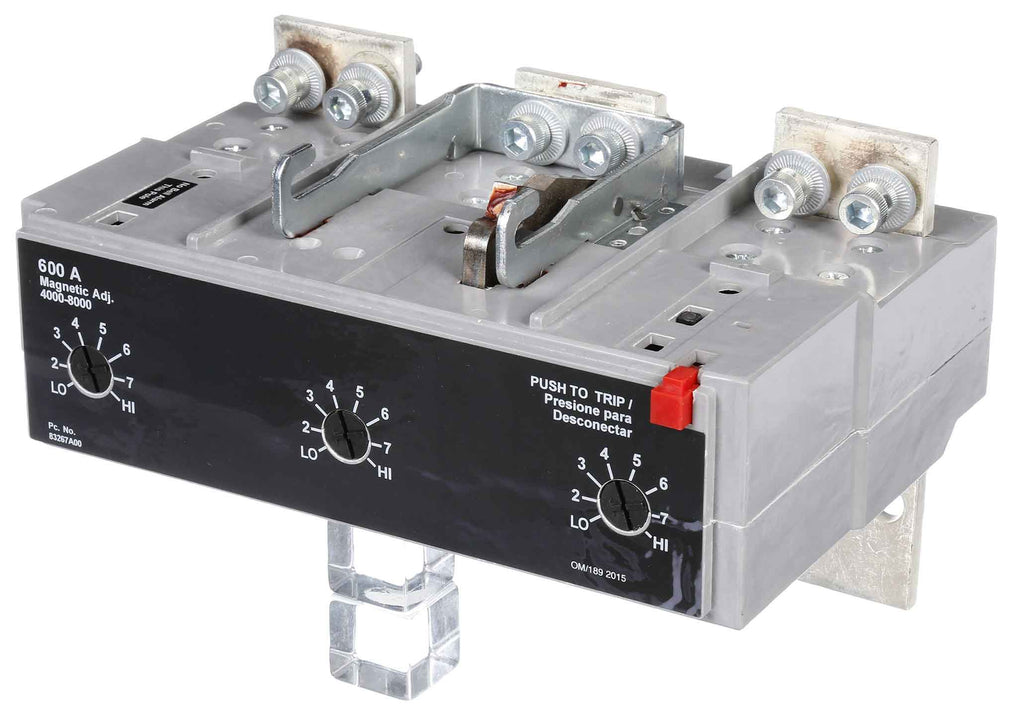

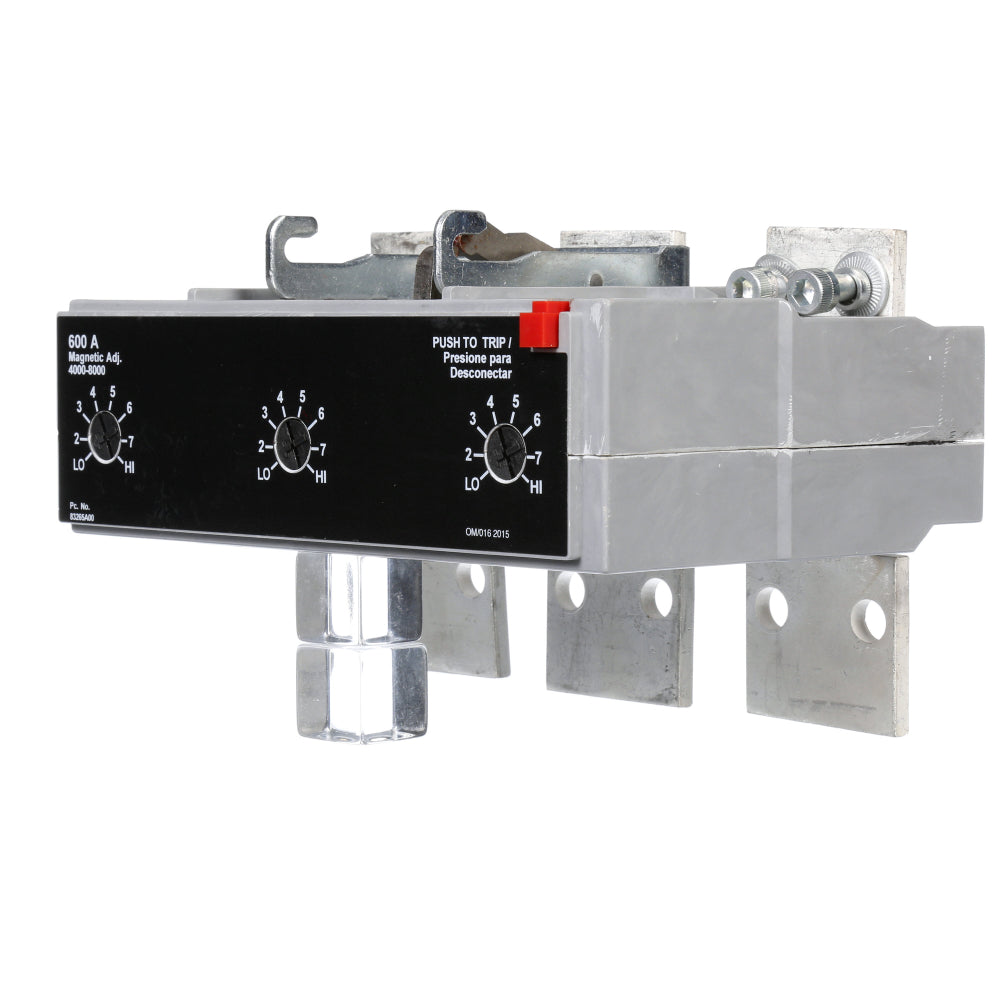

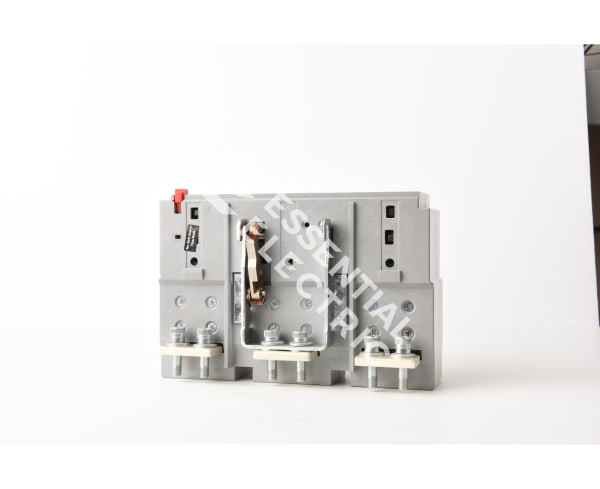

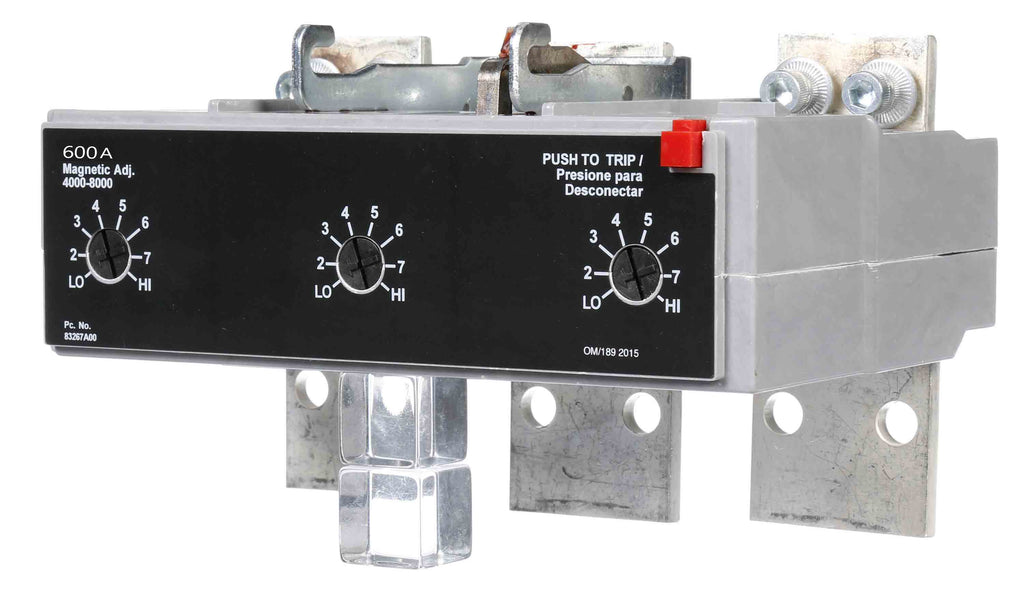

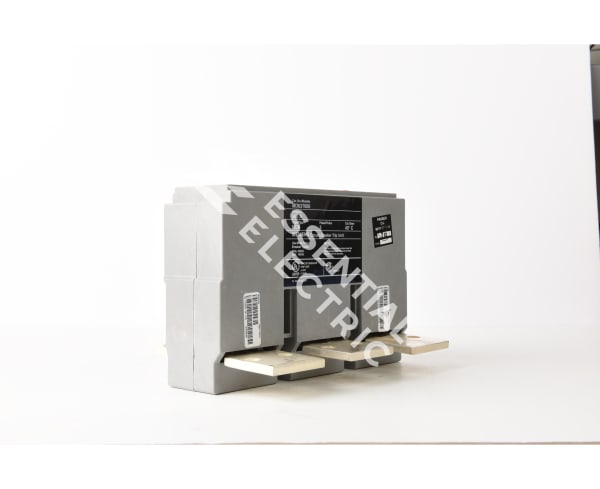

MD63T600 is a Siemens Sentron series thermal magnetic trip unit designed for MD frame molded case circuit breakers, rated at 600 amps and 600 volts with 3 poles.This interchangeable trip unit features long-time and instantaneous (LI) trip functions, suitable for use with MD and HMD series breakers. It supports a 25 kA interrupt rating at 600 VAC and 250 VDC voltage rating, operating at 40°C ambient temperature. The unit complies with UL listing and HACR standards, ensuring reliable protection and performance.
- Key Specifications
- Manufacturer: Siemens
- Part Number: MD63T600
- Current Rating: 600 Amps
- Voltage Rating: 600 VAC / 250 VDC
- Number of Poles: 3
- Interrupt Rating: 25 kA at 600V
- Trip Unit Type: Thermal Magnetic with LI (Long-Time and Instantaneous)
- Frame Type: MD, HMD
- Operating Temperature: 40°C
- Frequency: 50/60 Hz
- UL Listed and HACR Rated
Specifications
- Part Number: MD63T600
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : MD
- Voltage : 600
- Amperage : 600
- Phase : 3
- Poles : 3
- AIC rating : 50kA@480V
- Connection : Bolt-On
- Functions : LI - Long Time and Instantaneous Trip
- Amperage Maximum : 600
- Protection : Thermal Magnetic
- Compatible Frames : MD,HMD
Product Data
- UPC : 783643214828
- GTIN : 00783643214828
- Country of Origin : Mexico
- Weight : 5.8
- Wire Size : AWG 1/0 to 500KCM, Cu/Al
