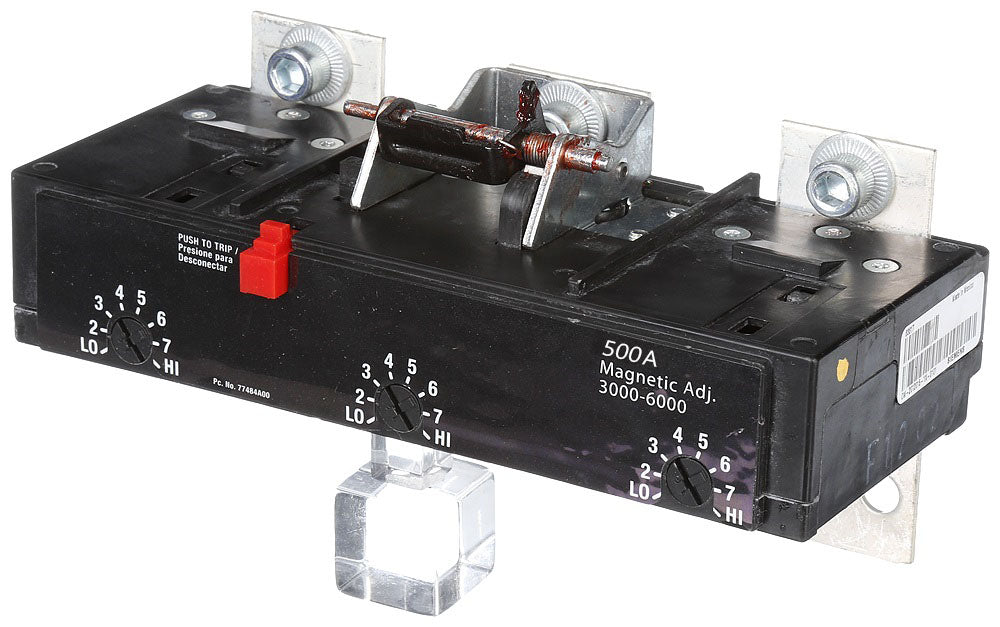

MD63T500 - Siemens 500A 600V 3-Pole Molded Case Circuit Breaker Thermal Magnetic Trip

MD63T500

This Siemens Sentron MD63T500 breaker offers a 25 kA interrupting rating at 600 VAC and 50/60 Hz frequency rating. It is designed for use in low voltage power distribution with a thermal-magnetic trip unit providing reliable long-time and instantaneous trip functions. The breaker fits MD frame applications and supports both AC and DC systems up to 600 volts AC and 250 volts DC.

Key Specifications
• Amperage: 500 A
• Voltage Rating: 600 VAC / 250 VDC
• Poles: 3
• Interrupt Rating: 25 kA at 600 VAC
• Trip Unit: Thermal Magnetic
• Frequency Rating: 50/60 Hz
• Series/Frame: MD Frame
• Mounting Type: Molded Case
• Certifications: Siemens Sentron standard compliance

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: MD63T500
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Trip Units & Programmers
• Family : Sentron Series
• Type : MD
• Voltage : 600
• Amperage : 500
• Phase : 3
• Poles : 3
• AIC rating : 50kA@480V
• Connection : Bolt-On
• Functions : LI - Long Time and Instantaneous
• Frame Size : 500
• Temp Rating : -13–158 °F (-25–70 °C)
• Amperage Maximum : 500
• Protection : Thermal Magnetic
• Compatible Frames : MD,HMD



Product Data

• UPC : 783643214811
• GTIN : 00783643214811
• Country of Origin : Mexico
• Weight : 5.851
• Wire Size : 1/0 AWG to 500 KCM CU/AL
