2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
MD63F800

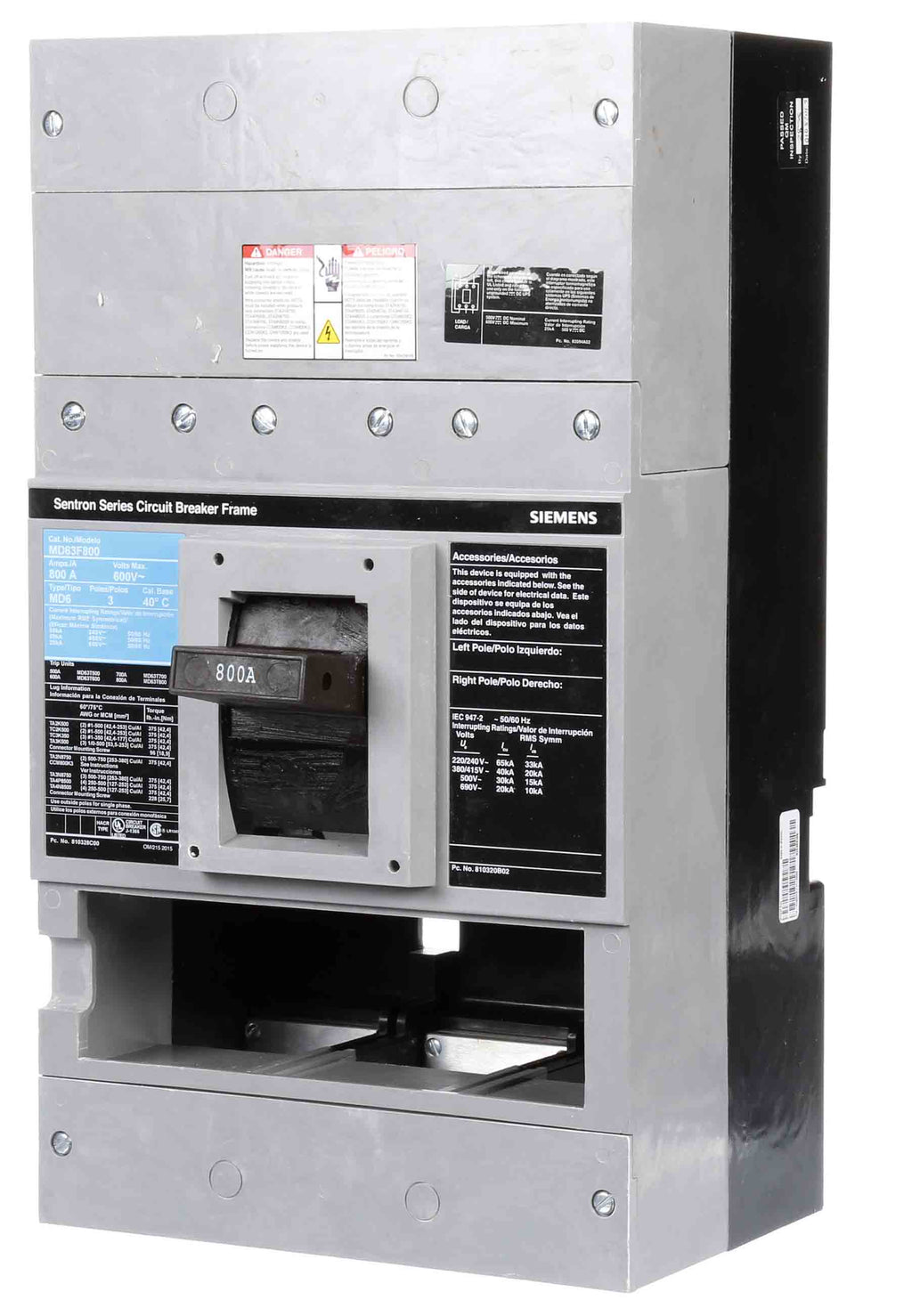

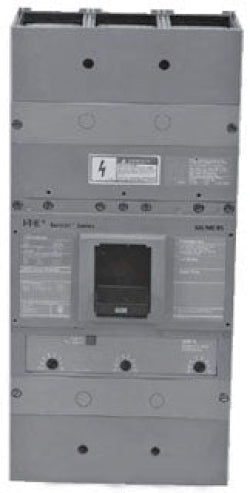

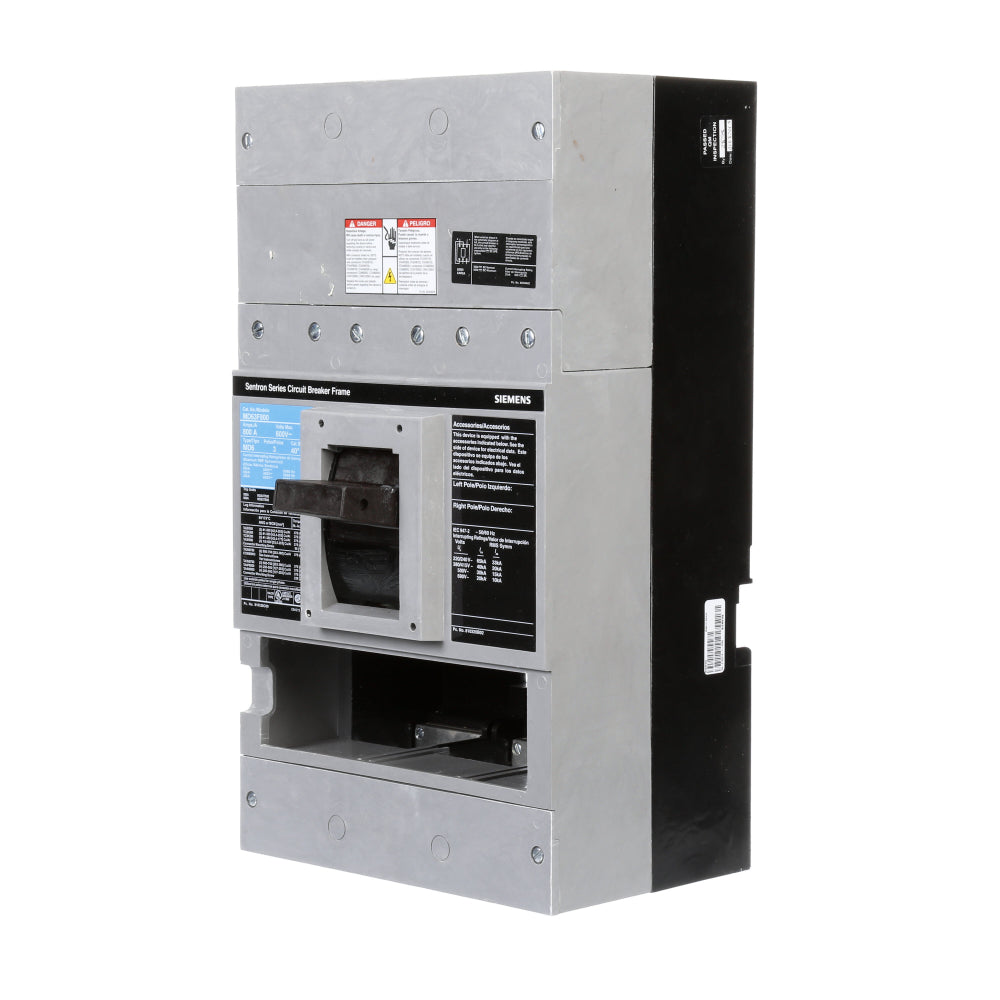

MD63F800 is a Siemens 800 Amp, 600 Volt, 3 Pole bolt-on circuit breaker frame designed for industrial power distribution applications.This Siemens MD frame breaker offers a standard interrupting capacity with a 25 kAIC rating at 600V and 50 kAIC at 480V, meeting UL 489 and IEC 60947-2 standards. It features a thermal magnetic trip unit and is suitable for use in 3-pole configurations with bolt-on mounting style, supporting reliable circuit protection.
- Key Specifications
- Amperage: 800 Amps
- Voltage Rating: 600 Volts AC, 250 Volts DC
- Number of Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 25 kAIC @ 600V, 50 kAIC @ 480V
- Series/Frame: MD Frame
- Trip Unit: Thermal Magnetic
- Standards: UL 489, IEC 60947-2
- Operating Temperature: 40°C
- Feed-Thru Connection: Yes
- Weight: Approximately 54 lbs
- Part Number: MD63F800
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : MD
- Voltage : 600
- Amperage : 800
- Phase : 3
- Poles : 3
- AIC rating : 50kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : MD Frame
- Protection : Thermal Magnetic
- UPC : 783643214507
- GTIN : 00783643214507
- Country of Origin : Mexico
- Weight : 48.5 lb
- Certification : UL, IEC
Additional Information
Frame only, Trip unit and lugs not included.
