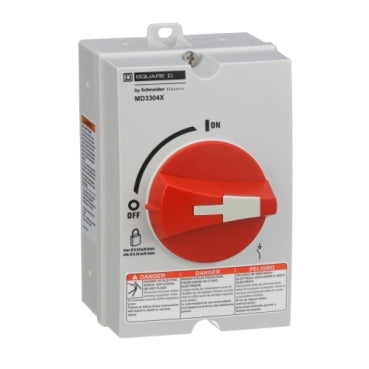

MD3304X - Square D 30A 600VAC 3-Pole Motor Disconnect Switch NEMA 4X Enclosure

MD3304X

MD3304X is a 30 Amp, 600 VAC, 3-pole motor disconnect switch with a NEMA 4X polycarbonate enclosure designed for rugged industrial and washdown applications.This Square D motor disconnect switch features a 3-pole design rated for 7.5 HP at 220/240 VAC, 20 HP at 440/480 VAC, and 25 HP at 600 VAC. It is UL 508 listed and CSA certified, suitable for NEMA 1, 3, 3R, 4, 4X, and 12 environments. The compact switch includes a red handle interlock to prevent cover removal when ON, and its durable polycarbonate enclosure ensures corrosion resistance.

• Amperage Rating: 30 A
• Voltage Rating: 600 VAC
• Number of Poles: 3
• Horsepower Ratings: 7.5 HP at 220/240 VAC, 20 HP at 440/480 VAC, 25 HP at 600 VAC
• Enclosure Type: NEMA 4X (also suitable for NEMA 1, 3, 3R, 4, and 12)
• Mounting Type: Door Mount
• Material: Polycarbonate
• Certifications: UL 508 Listed, CSA Certified
• Dimensions: 6.38 in H x 3.9 in W x 4.37 in D
• Red handle interlock for safety
• Country of Origin: China

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: MD3304X
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Switch
• Item Subcategory : Disconnect
• Type : MD
• Amperage : 30
• Poles : 3
• Nema Rating : 1,3,3R,4,4X,12
• Compatible Frames : NSX

Product Data

• UPC : 060648019022
• GTIN : 03606480190223
• Country of Origin : Tunisia
• Dimensions : 6.38 in (162.05 mm) x 3.90 in (99.06 mm) x 4.37 in (111.00 mm) (Height x Width x Depth)
• Weight : 1.519
• Certification : UL Listed
