Product Info
- Manufacturer:Siemens
- Sub-Category:Mounting Hardware
Description
MBKJD3A

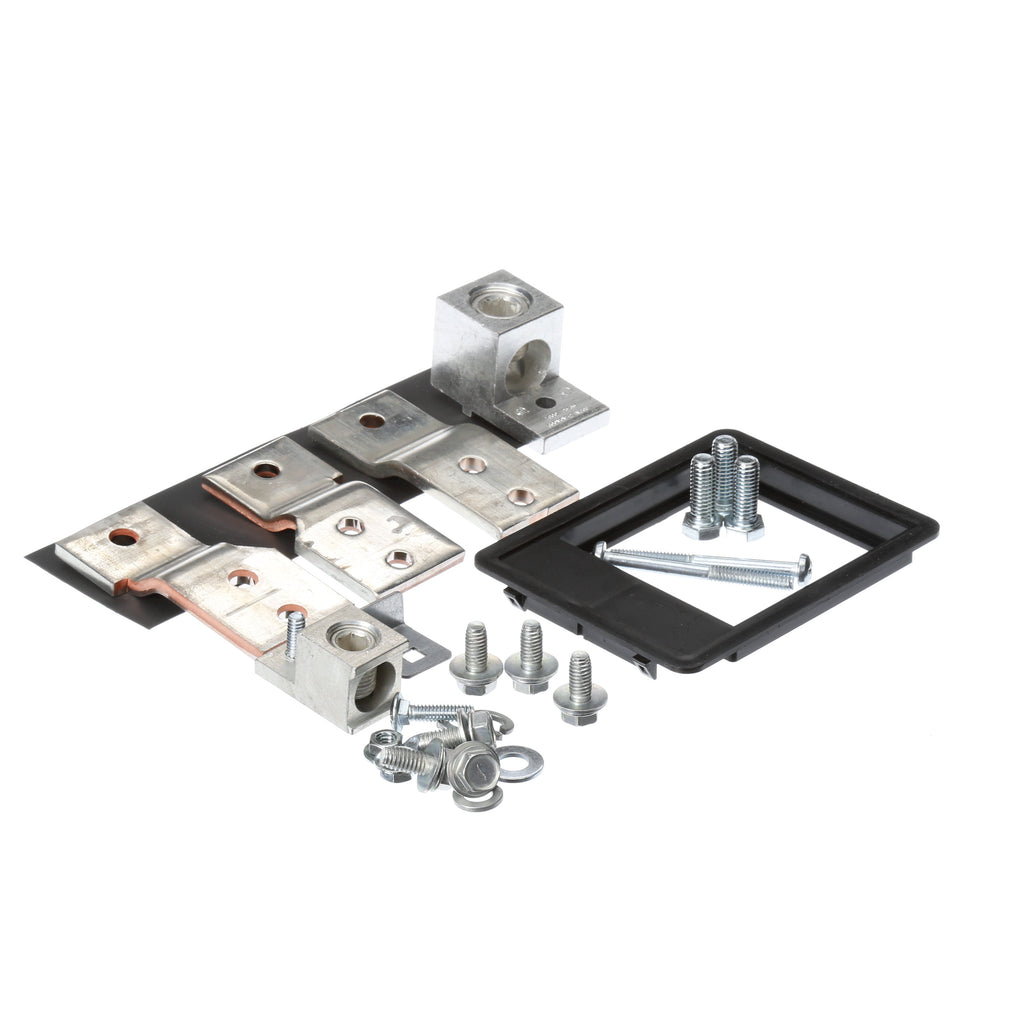

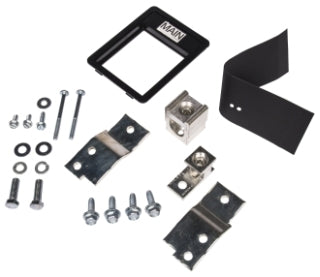

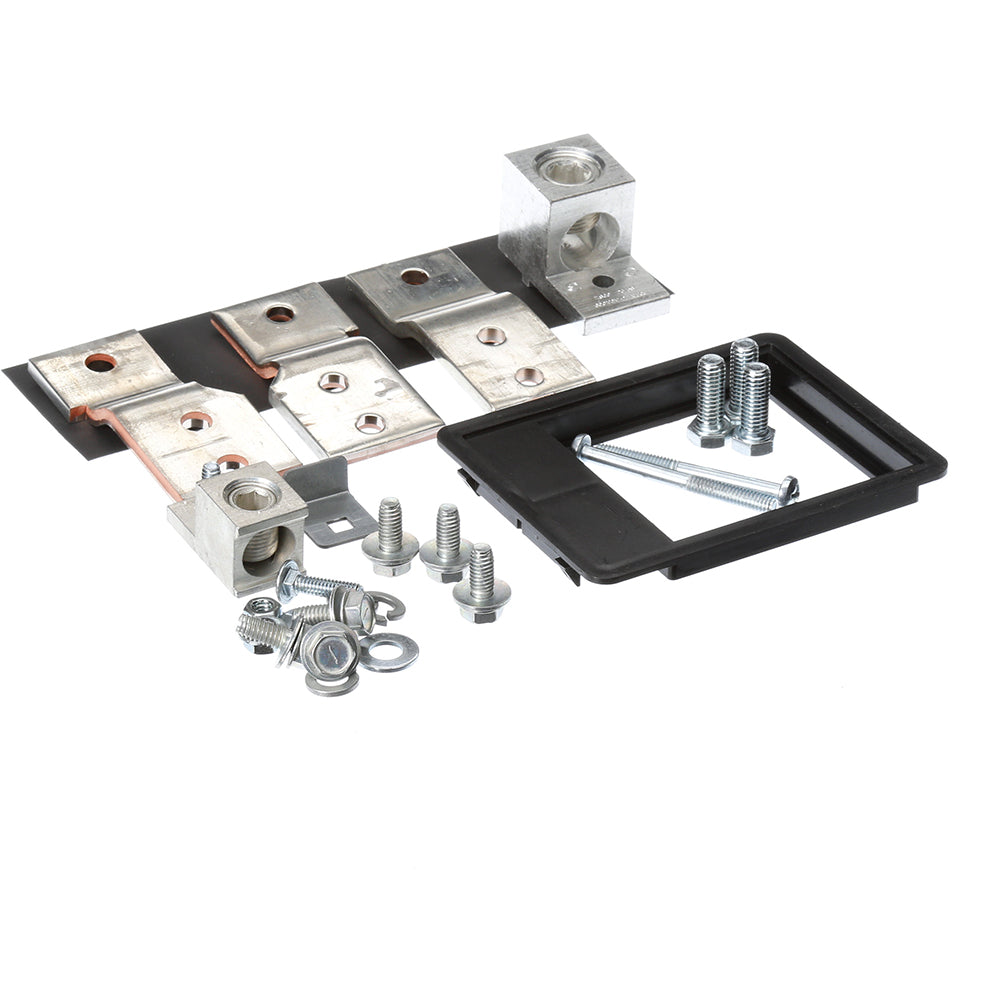

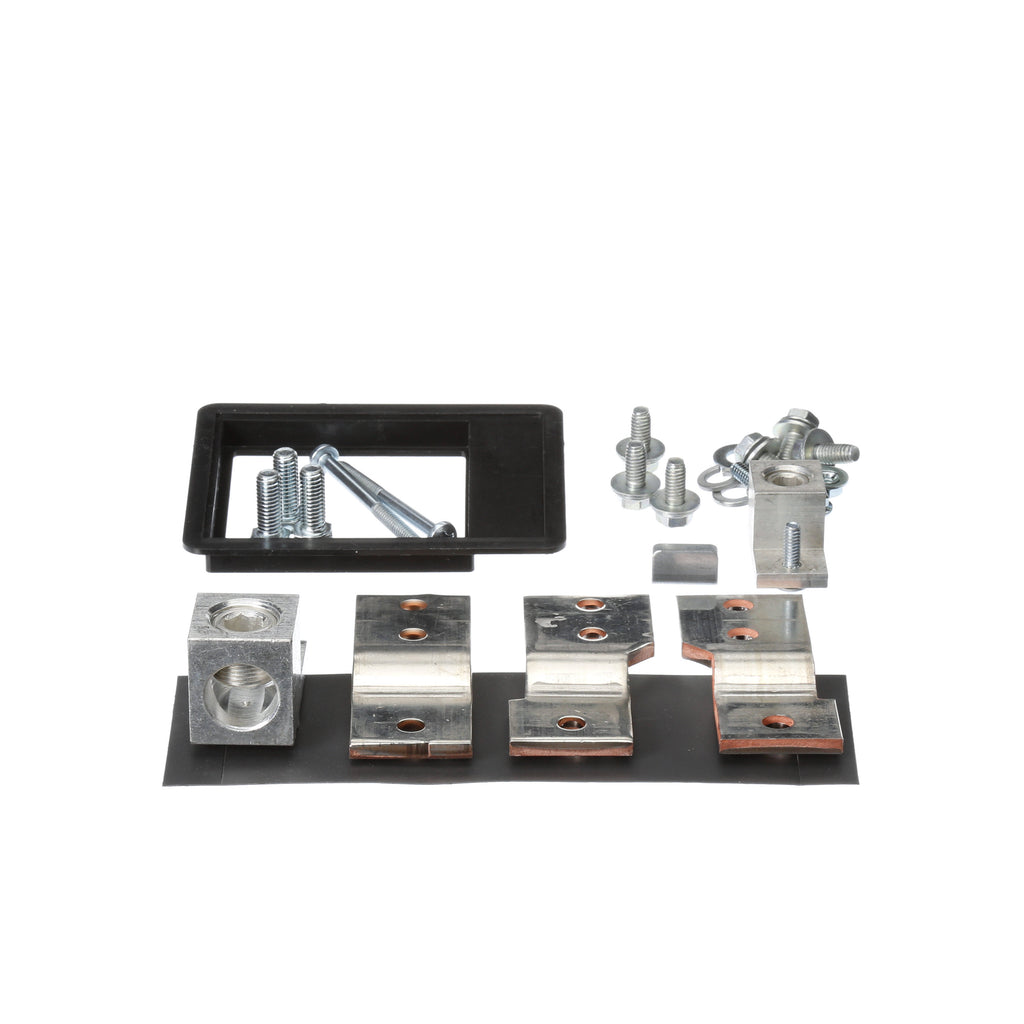

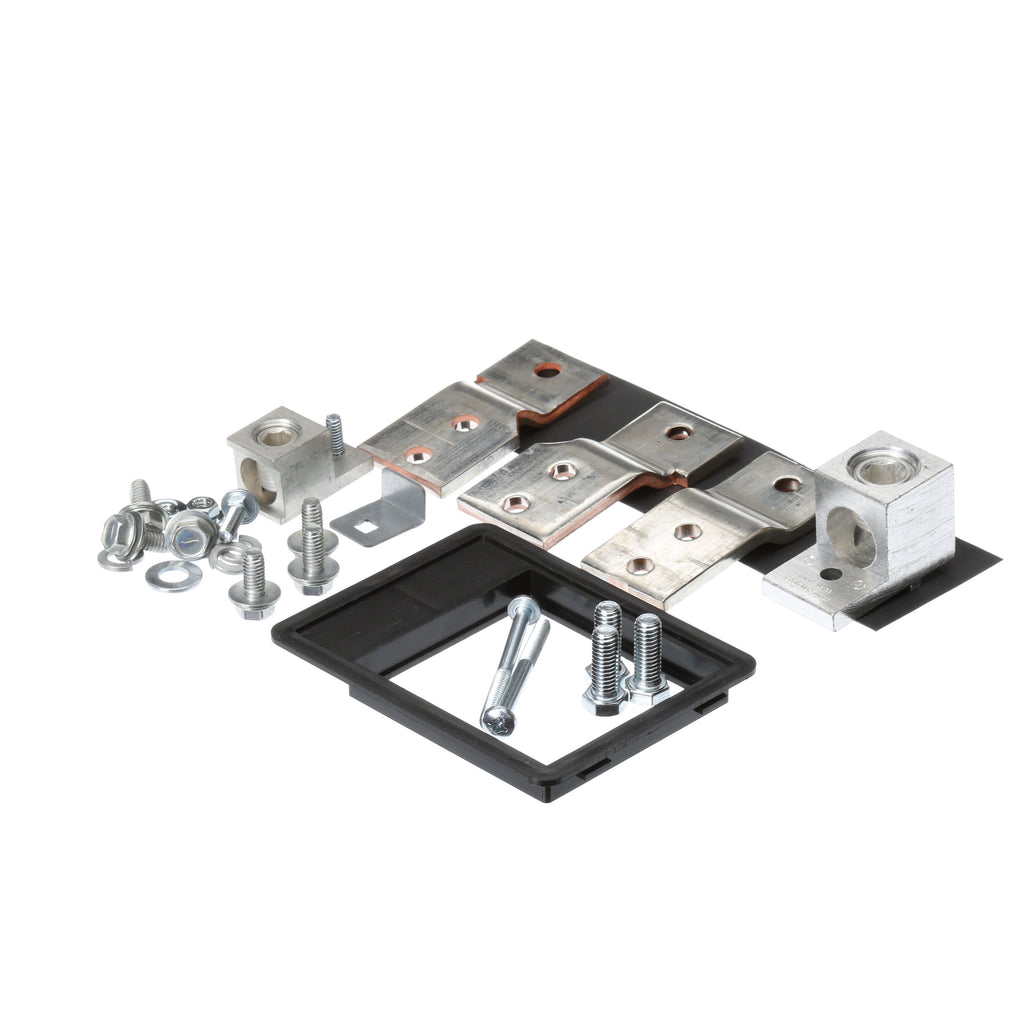

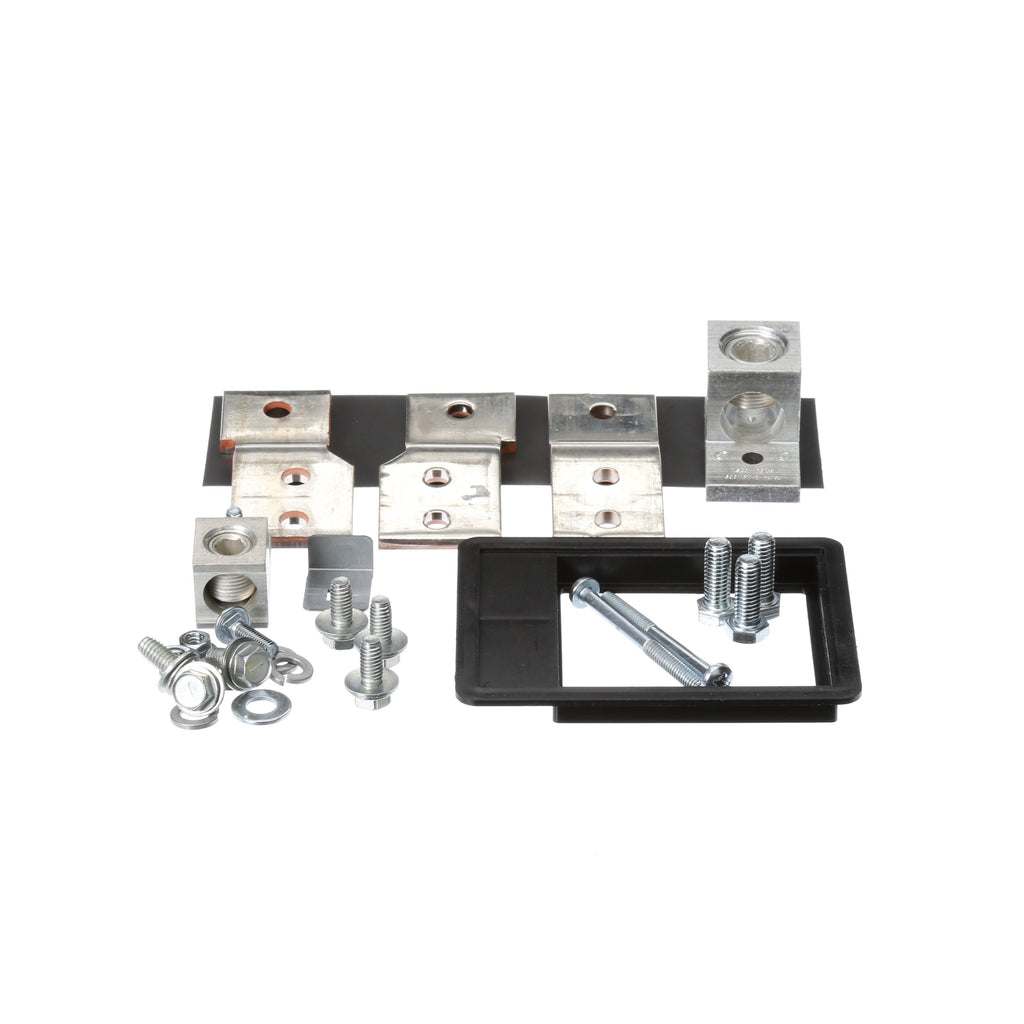

MBKJD3A is a Siemens main or subfeed breaker mounting kit designed for revised P1 panelboards and P1-400 amp systems. This kit provides all necessary mounting hardware for converting main lug configurations to main breaker panels and is suitable for use with JD, JXD, HJD, and HJXD circuit breaker types in 3-phase applications. The kit is rated for a maximum of 400 amperes and supports both top-feed and bottom-feed main breaker installations. Installation includes connection provisions for 1-phase 2 or 3-wire systems as well as 3-phase 3 or 4-wire systems. The breaker unit is sold separately and must be selected based on the specific voltage, system type, and feed location requirements.
- Amperage Rating: 400A Maximum
- Voltage: 600V
- Phase: 3-Phase
- Poles: 3
- Configuration: Main or Subfeed Breaker
- Compatible Breaker Types: JD6, JXD2, JXD6, HJD6, HJXD6
- Panelboard Series: Revised P1, P1-400
- Includes Complete Mounting Hardware
- Interrupt Capacity: 100kA at 240V
- Trip Range: 200-400 Amps
Specifications
- Part Number: MBKJD3A
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Mounting Hardware
- Family : Sentron Series
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- Configuration : Main
- Amperage Maximum : 400
- Compatible Frames : JD
Product Data
- UPC : 088762158090
- GTIN : 00887621580902
- Weight : 3.307
- Panel Type : P1
- Certification : CSA
