Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Parts & Accessories
Description
MA4IMA24H

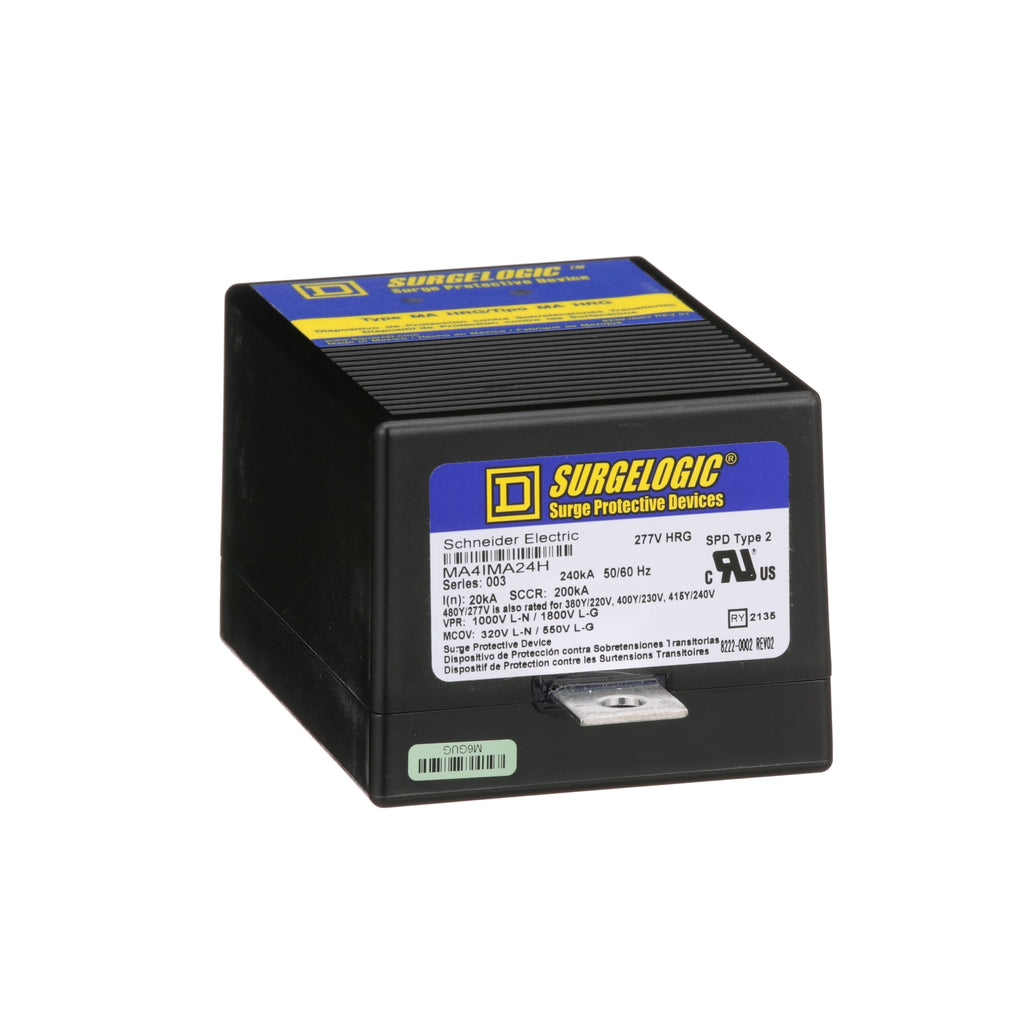

MA4IMA24H is a Square D Surgelogic surge protection module designed for 3-phase, 4-wire electrical systems with a 240kA surge current rating and 480Y/277VAC voltage compatibility.This externally mounted replacement module provides fast, easy service and replacement, featuring noise filtering and transient surge suppression for reliable protection in demanding environments. The module is part of the MA series and is compatible with QO frame enclosures.
- Part Number: MA4IMA24H
- Manufacturer: Square D
- Series: MA
- Frame Type: QO
- Surge Current: 240kA per phase
- Voltage: 480Y/277VAC
- Phase: 3
- Wires: 4
- SPD Type: Type 2
- Mounting: Externally mounted replacement module
- Short Circuit Current Rating: 200kA
- Application: HRG (High Resistance Grounded) systems
Specifications
- Part Number: MA4IMA24H
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Parts & Accessories
- Section : Surge Protection
- Family : SURGELOGIC
- Type : MA
- Voltage : 480Y/277VAC
- Amperage : 240000
- Phase : 3
- Temp Rating : -13–158 °F (-25–70 °C)
- Compatible Frames : QO
Product Data
- UPC : 785901933434
- GTIN : 00785901933434
- Country of Origin : United States
- Dimensions : 6.3 in (158.8 mm) x 3.3 in (82.8 mm) x 2.7 in (68.3 mm) (Height x Width x Depth)
- Weight : 2.441
- Standards : UL 1449:ed. 4, UL 1283:ed. 5, CSA C22.2 No 8:1986, ANSI/IEEE C62.41, ANSI/IEEE C62.45, NEC 285
