MA1IMA24 - Square D 120/240V 1-Phase 3-Wire Surge Suppressor Module SurgeLogic EMA

MA1IMA24

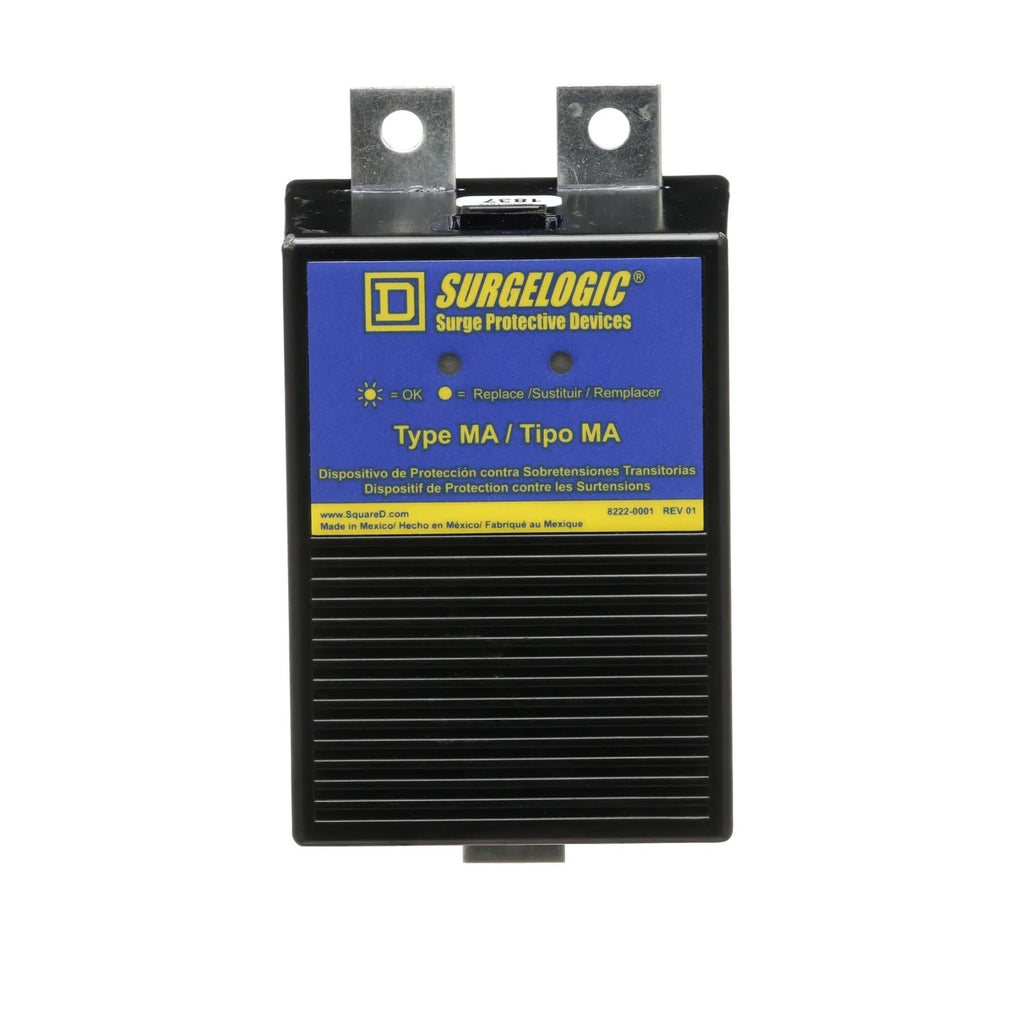

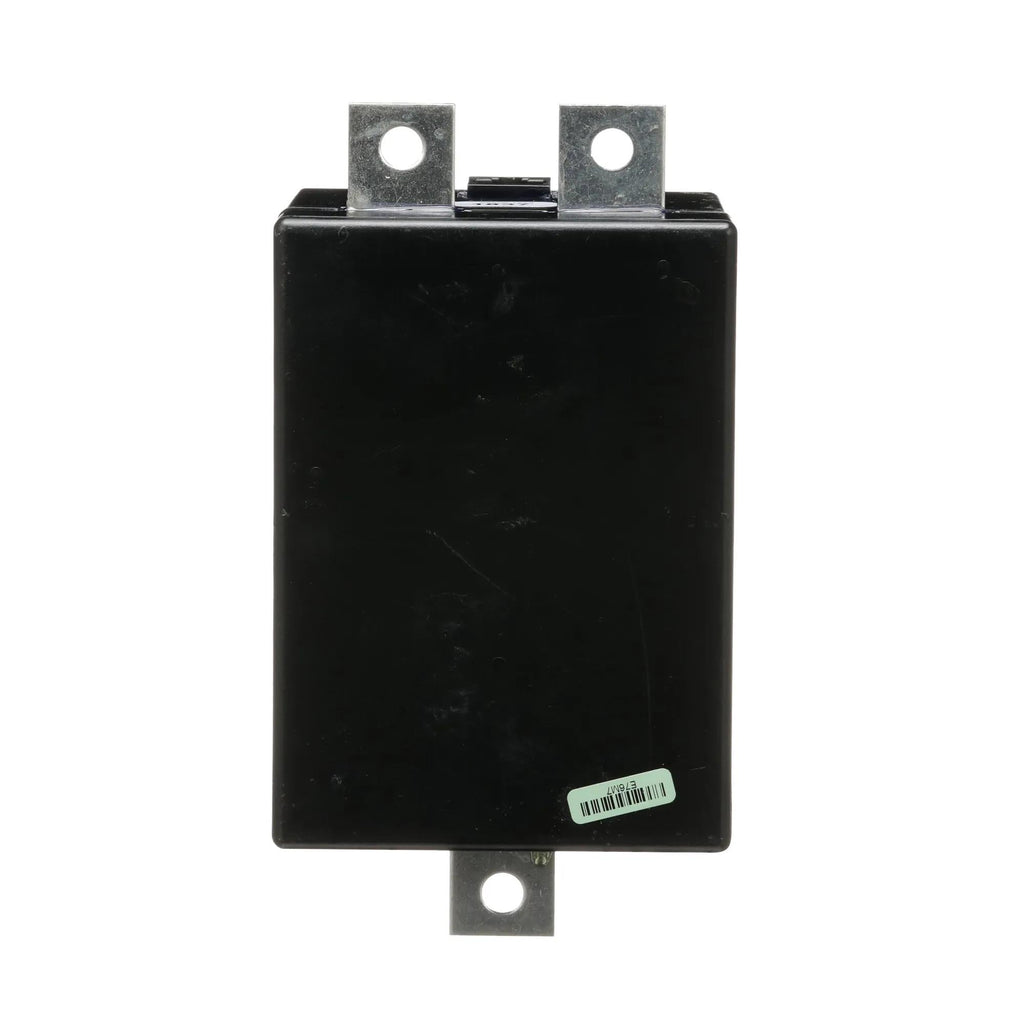

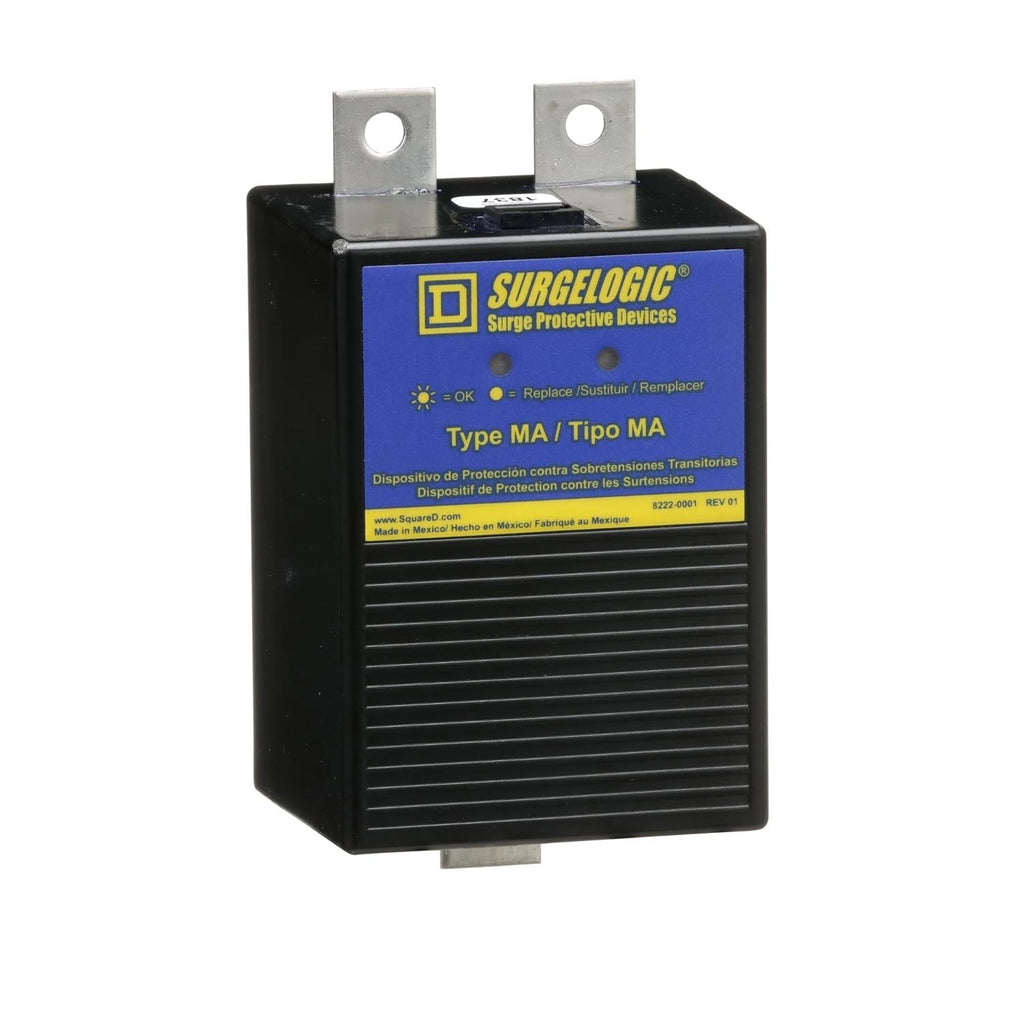

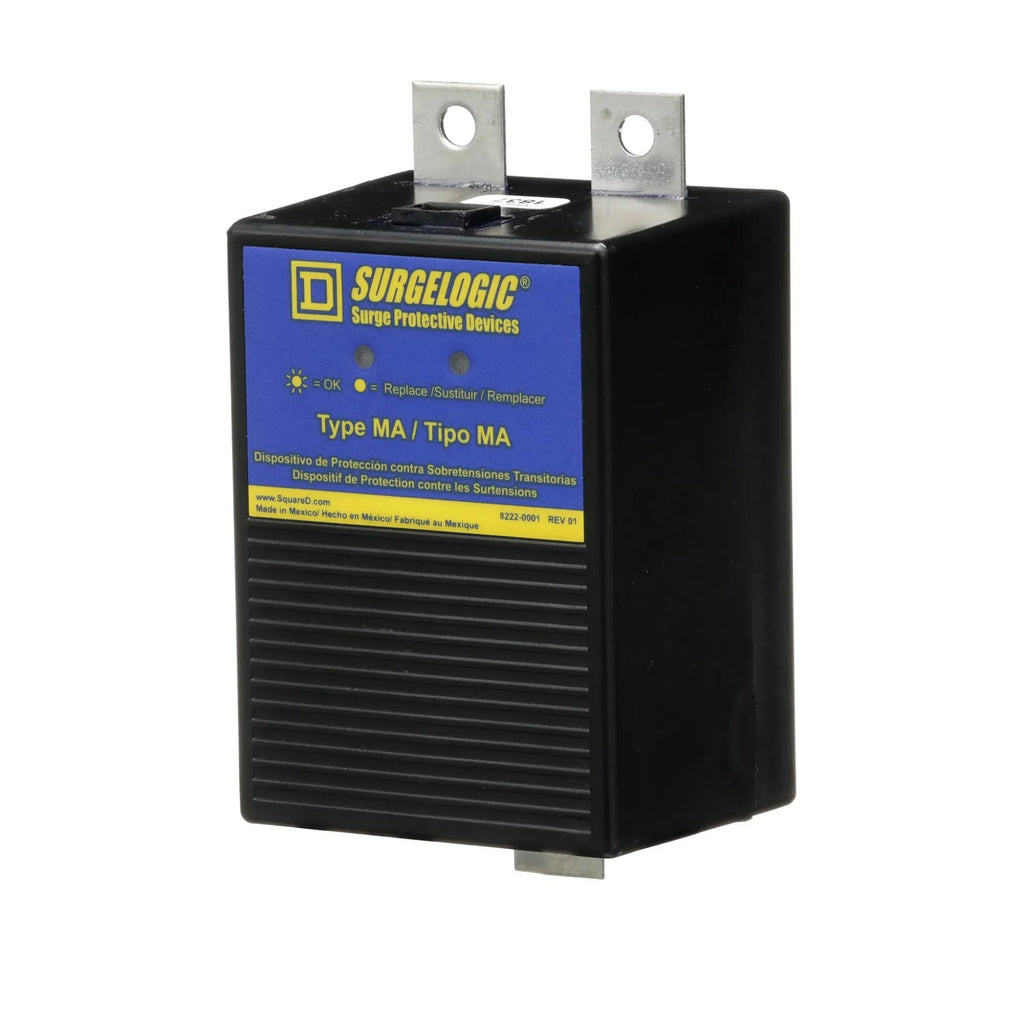

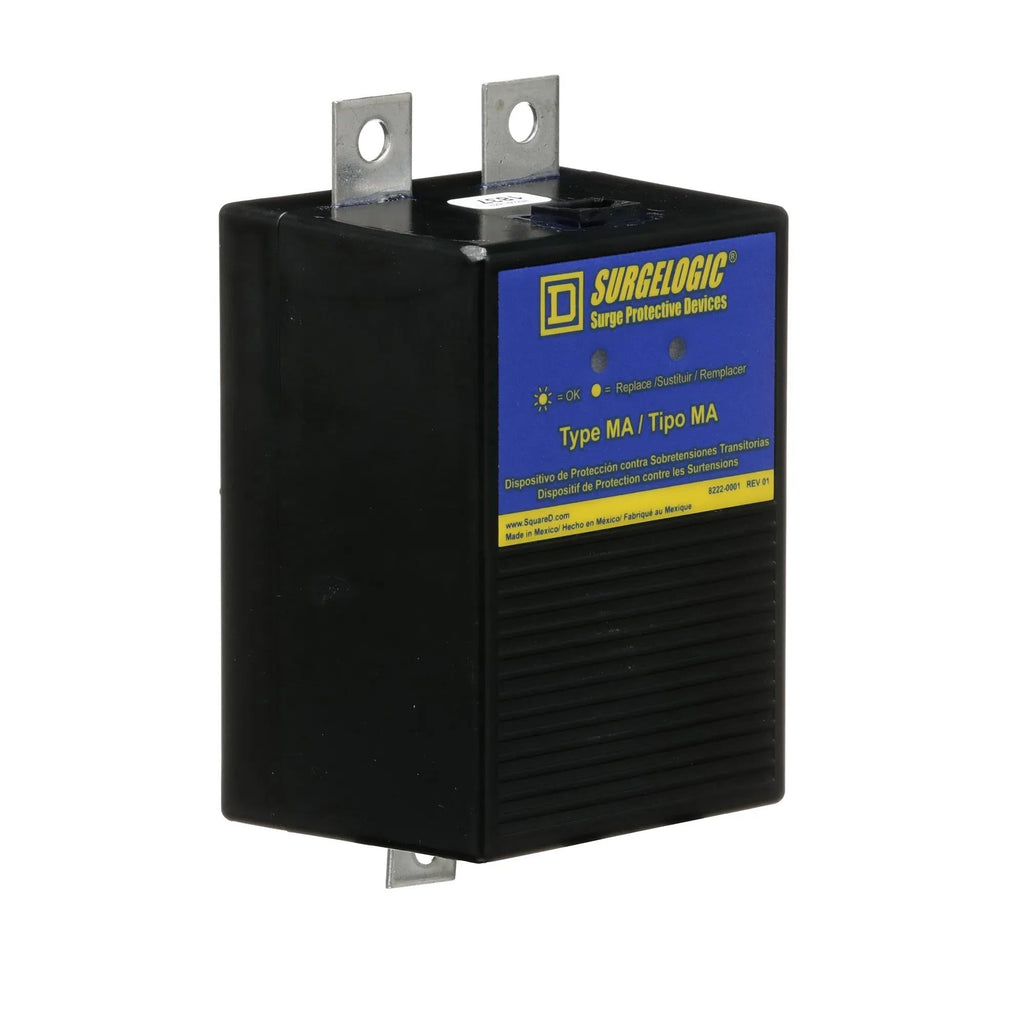

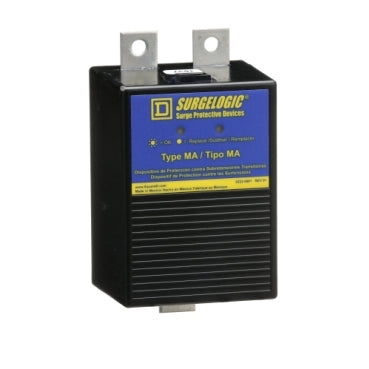

MA1IMA24 is a Square D SurgeLogic EMA series surge suppressor module designed for 120/240V AC applications. This module provides reliable surge protection for switchboards, switchgear, panel boards, motor control centers, and busway systems. It features an audible alarm and a disable/enable switch for easy maintenance and monitoring. The unit is externally mounted and suitable for service entrance to point-of-use equipment. This surge suppressor module is UL and CSA listed, meeting UL 1449, NEC Article 285, and CSA 22.2 No. 8-M1986 standards. It is designed for 1-phase, 3-wire systems and offers a nominal discharge current of 20 kA with a short-circuit current rating (SCCR) of 200 kA. The enclosure is NEMA 2 rated and constructed from durable plastic.

• Part Number: MA1IMA24
• Manufacturer: Square D
• Series: SurgeLogic EMA
• Mounting Type: Panel/Externally Mounted
• Voltage Rating: 120/240 VAC
• Phase: 1-Phase, 3-Wire
• Nominal Discharge Current: 20 kA
• Short-Circuit Current Rating (SCCR): 200 kA
• Enclosure Material: Plastic
• NEMA Rating: NEMA 2
• Approvals: UL 1449, CSA 22.2 No. 8-M1986
• Weight: 1.93 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: MA1IMA24
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Parts & Accessories
• Section : Surge Protection
• Family : SURGELOGIC
• Type : MA
• Phase : 1

Product Data

• UPC : 785901292937
• GTIN : 00785901292937
• Country of Origin : Mexico
• Dimensions : 6.3 in (158.8 mm) x 3.3 in (82.8 mm) x 2.7 in (68.3 mm) (Height x Width x Depth)
• Weight : 1.96
• Standards : UL 1449:ed. 4, UL 1283:ed. 5, CSA C22.2 No 8:1986, ANSI/IEEE C62.41, ANSI/IEEE C62.45, NEC 285
