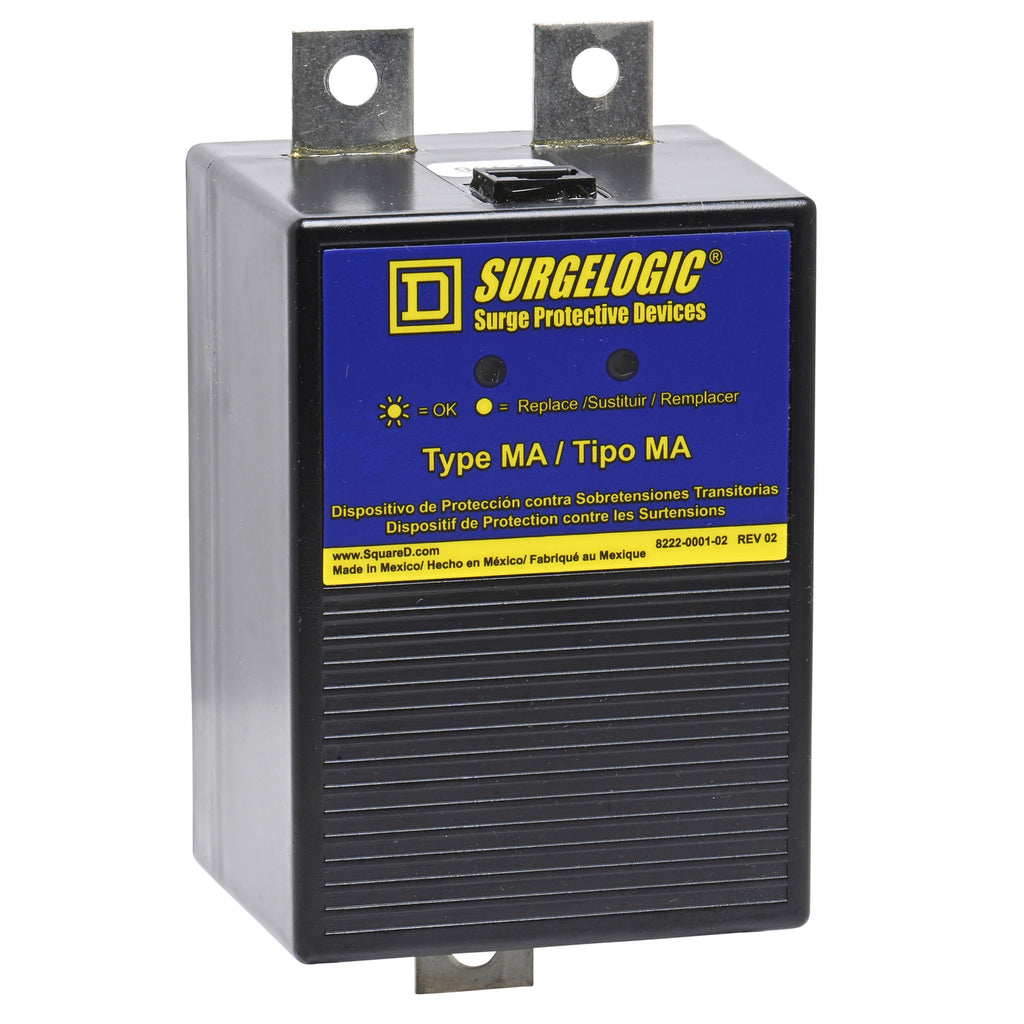

MA1IMA161 - Square D Surge Protection Module, 160A, 120/240VAC, 1 Phase, 3 Wire, QO Frame, Panel Mount, SPD Type 1, 160kA, UL/CSA/ANSI/IEEE/NEC/RoHS

MA1IMA161

MA1IMA161 is a Square D surge protection module designed to safeguard electrical circuits from voltage spikes and surges.

This Surgelogic MA series module provides robust protection for 120/240VAC single-phase systems, featuring a high surge current rating and panel mounting for easy integration into QO load centers. It is engineered for reliability and compliance with major electrical standards.

Key Specifications
• Part Number: MA1IMA161
• Manufacturer: Square D (Schneider Electric)
• Amperage: 160A
• Voltage: 120/240VAC
• Poles: 1
• Mounting Type: Panel
• Interrupt Rating: 160kA surge current
• Series/Frame: MA, QO
• Trip Unit: Not applicable (surge protection device)
• Connection: 3-wire, terminal
• Certifications: UL, CSA, ANSI/IEEE, NEC, RoHS
• Short Circuit Current Rating: 200kA
• Body Material: Plastic
• Color: Black

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: MA1IMA161
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Parts & Accessories
• Section : Surge Protection
• Family : SURGELOGIC
• Type : MA
• Voltage : 120/240VAC
• Amperage : 160
• Phase : 1
• Connection : Terminal
• Compatible Frames : QO

Product Data

• UPC : 785901974963
• GTIN : 00785901974963
• Country of Origin : Mexico
• Dimensions : 6.3 in (158.8 mm) x 3.3 in (82.8 mm) x 2.7 in (68.3 mm) (Height x Width x Depth)
• Weight : 2 lb
• Standards : UL 1449:ed. 4, UL 1283:ed. 5, CSA C22.2 No 8:1986, ANSI/IEEE C62.41, ANSI/IEEE C62.45, NEC 285
