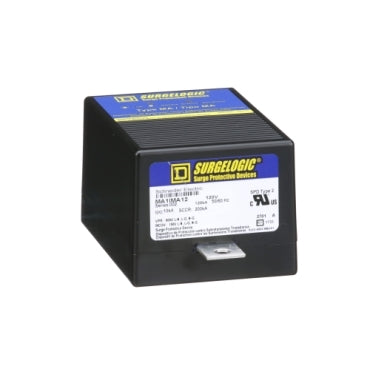

MA1IMA12 - Square D Surgelogic Surge Protection Module, 120/240VAC, 1 Pole, 3 Wire, 120kA, Type 2 SPD, Panel Mount, NEMA 2, CSA/UL

MA1IMA12

MA1IMA12 is a Square D Surgelogic surge protection module designed for reliable overvoltage protection in electrical panels.

This Type 2 surge protective device (SPD) is rated for 120/240VAC systems, offering robust protection against transient voltage spikes with a maximum surge current capacity of 120kA per phase. It features a 150VAC clamping voltage, 20kA nominal discharge current, and 200kA short circuit current rating. The module is panel-mounted in a NEMA 2 enclosure, suitable for a wide range of commercial and industrial applications.

Key Specifications
• Part Number: MA1IMA12
• Manufacturer: Square D
• Category: Surge Protection Device (SPD)
• Voltage: 120/240VAC
• Frequency: 47–63 Hz
• Poles: 1
• Wires: 3
• Mounting Type: Panel mount
• Enclosure: NEMA 2
• Peak Surge Current: 120kA
• Nominal Discharge Current: 20kA
• Short Circuit Current Rating: 200kA
• Clamping Voltage: 150VAC
• Certifications: CSA, UL
• Dimensions: 3.26 in W x 2.69 in D x 6.25 in H
• Operating Temperature: Up to 149°F
• LED status indicator
• Modes of Protection: L-N, L-G, L-L

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: MA1IMA12
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Parts & Accessories
• Section : Surge Protection
• Family : SURGELOGIC
• Type : Surgelogic
• Voltage : 120/240VAC
• Phase : 1
• Connection : Terminals
• Temp Rating : -13–158 °F (-25–70 °C)

Product Data

• UPC : 078590129291
• GTIN : 00785901292913
• Country of Origin : Mexico
• Dimensions : 6.3 in (158.8 mm) x 3.3 in (82.8 mm) x 2.7 in (68.3 mm) (Height x Width x Depth)
• Weight : 1.8 lb
• Standards : UL 1449:ed. 4, UL 1283:ed. 5, CSA C22.2 No 8:1986, ANSI/IEEE C62.41, ANSI/IEEE C62.45, NEC 285
• Certification : UL, CSA,
