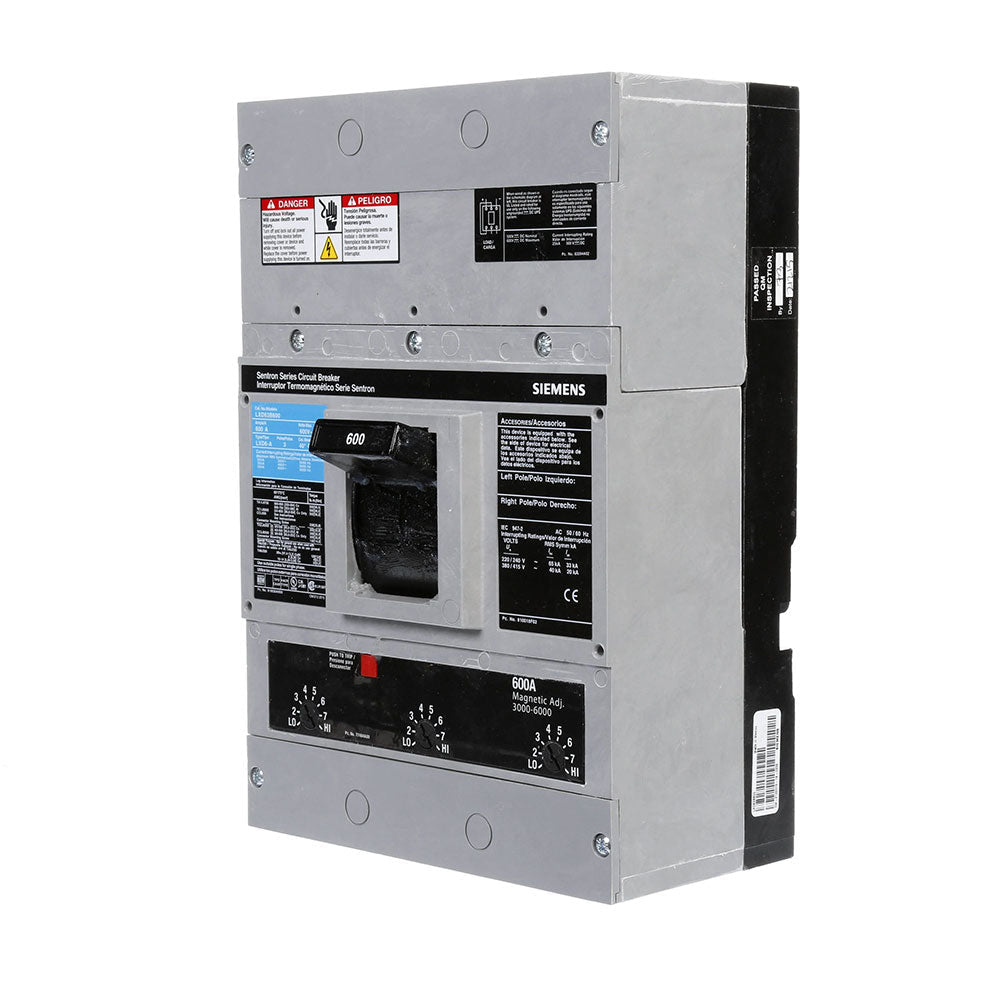

LXD63B600L - Siemens 600A 600V 3 Pole Molded Case Circuit Breaker LD Frame

LXD63B600L

LXD63B600L - Siemens 3-pole molded case circuit breaker rated at 600A and 600V with LD frame and thermal-magnetic trip unit.This Siemens Sentron LD series circuit breaker features a molded case design with feed-thru mounting, line and load lugs (TA2J6500), and interrupting ratings including 65kA at 240VAC, 35kA at 480VAC, and 25kA at 600VAC. It supports 600VAC at 50/60Hz and 500VDC, with dimensions approximately 7.5in W x 5.44in D x 11in H for reliable protection in commercial and industrial applications.Key Specifications

• Amperage: 600A
• Voltage: 600VAC / 500VDC
• Poles: 3
• Frame/Series: LD (LXD6-A)
• Trip Unit: Thermal-Magnetic
• Mounting Type: Feed-Thru
• Interrupt Rating: 65kA@240VAC, 35kA@480VAC, 25kA@600VAC
• Terminals: Line/Load Lugs (TA2J6500)
• Certifications: UL Listed, CSA Certified, UL 489, IEC 60947-2
• UPC/GTIN: 783643011243

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LXD63B600L
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : LXD
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : LD Frame
• Temp Rating : -13¡F-158¡F
• Protection : Thermal Magnetic

Product Data

• UPC : 783643011243
• GTIN : 00783643011243
• Country of Origin : Mexico
• Dimensions : 8.661 x 12.992 x 6.712
• Weight : 19.495
• Certification : Ul Listed
