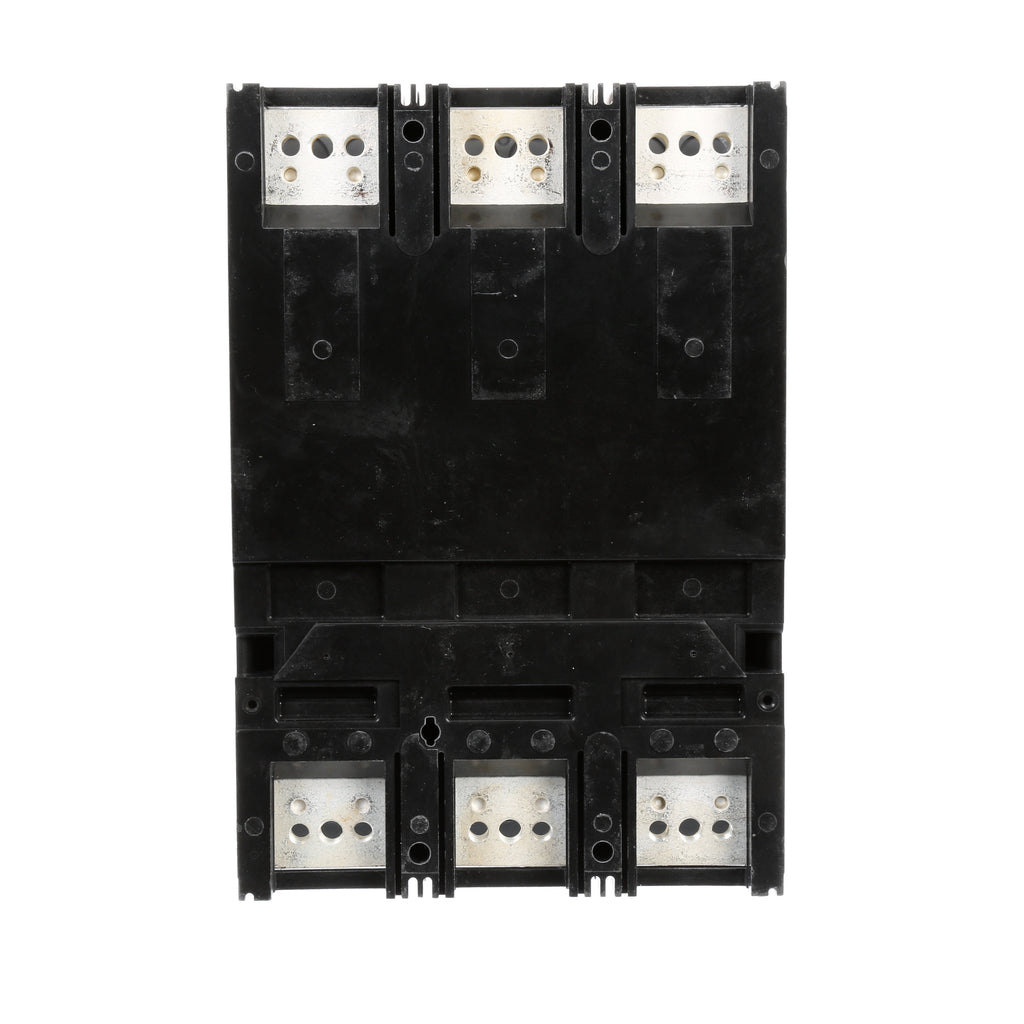

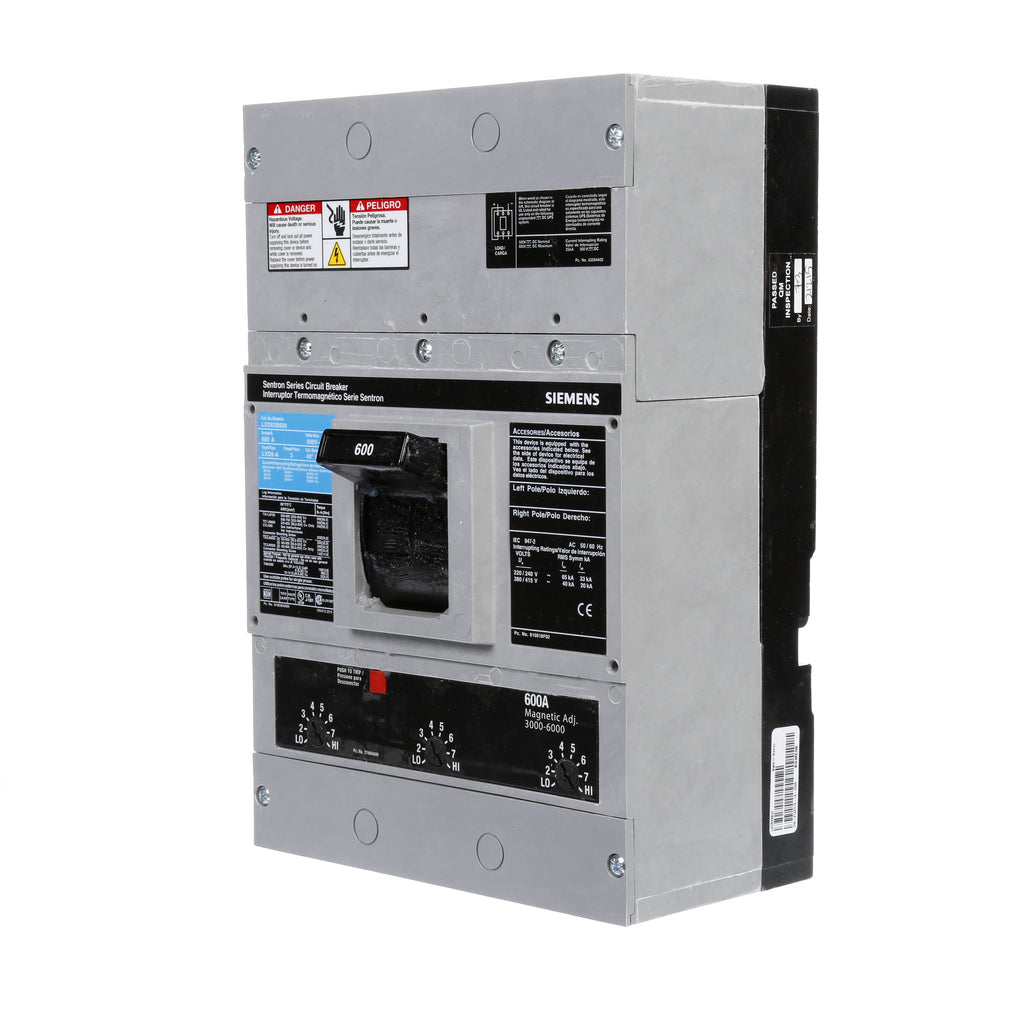

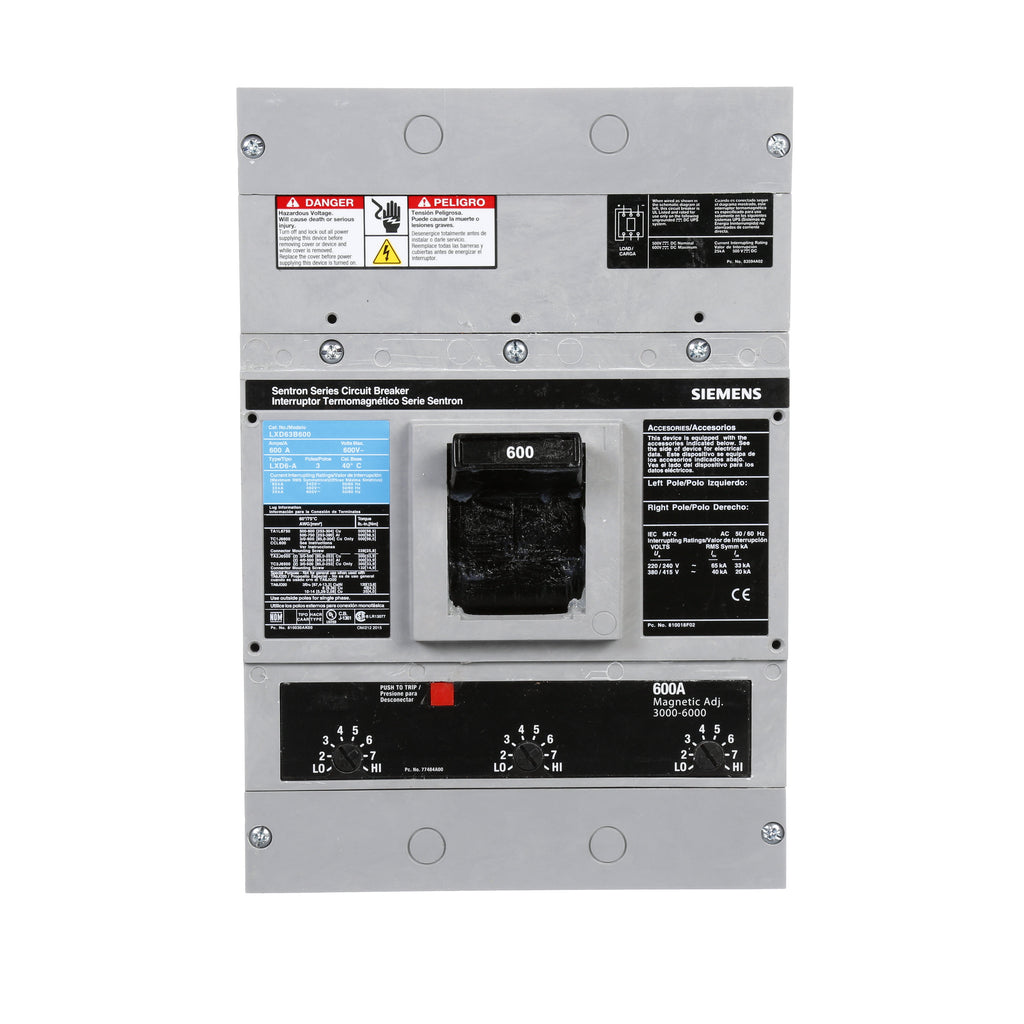

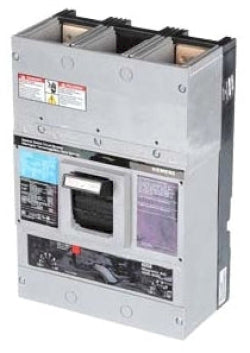

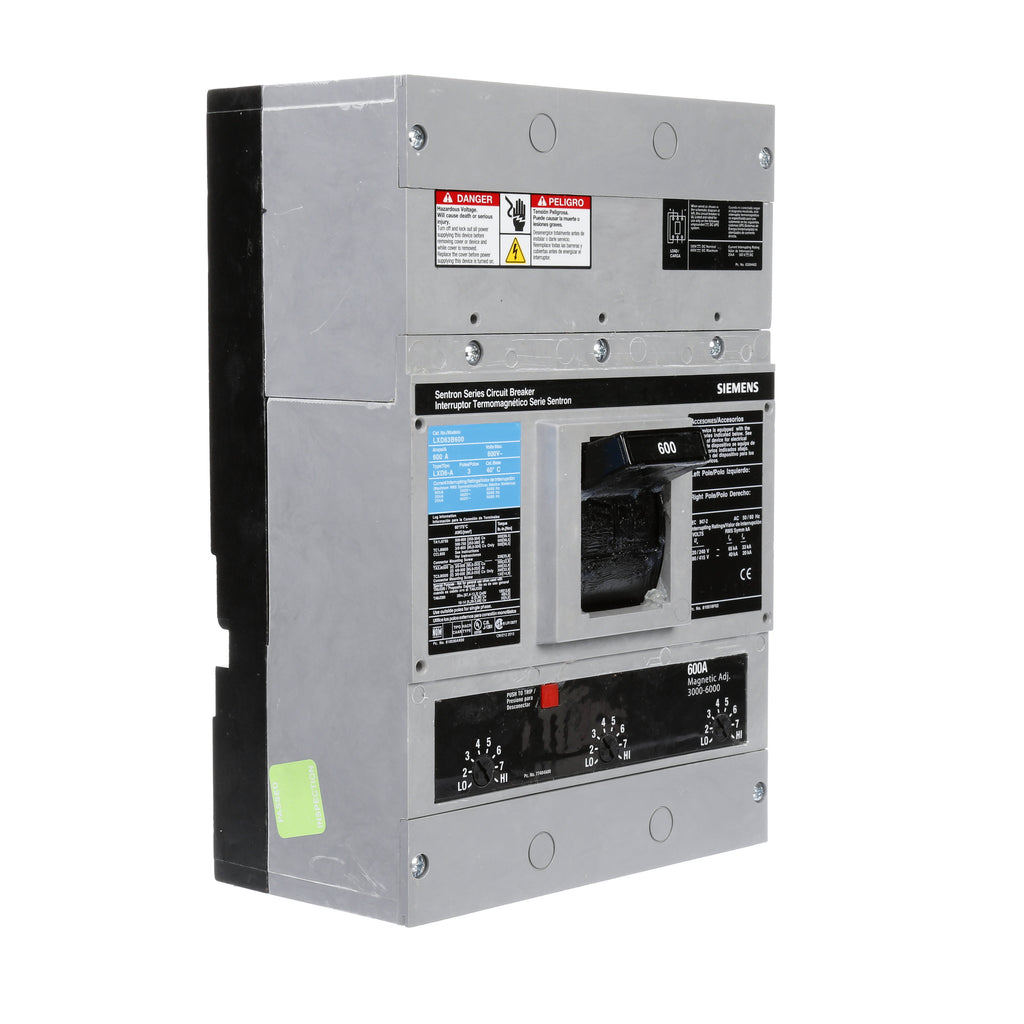

LXD63B600 - Siemens 600 Amp 600 VAC 3 Pole Molded Case Circuit Breaker, Bolt-On, Thermal Magnetic, Sentron Series

LXD63B600

LXD63B600 is a Siemens 3 Pole molded case circuit breaker rated for 600 Amps and 600 VAC, designed for reliable thermal magnetic protection.This Siemens Sentron Series LXD63B600 breaker features a bolt-on mounting type with a 25 kA interrupting rating at 600V and 35 kA at 480V. It includes long time, short time, and instantaneous trip functions, meeting UL 489 and IEC 60947-2 standards. The breaker is rated for 40¡C ambient temperature and is UL and IEC certified.

Key Specifications
• Amperage: 600 A
• Voltage: 600 VAC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 25 kA at 600 V, 35 kA at 480 V
• Series/Frame: Sentron LXD
• Trip Unit: Thermal Magnetic with Long Time, Short Time, Instantaneous
• Certifications: UL, IEC
• Temperature Rating: 40 ¡C
• Phase: 3

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: LXD63B600
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : LXD
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : Long Time, Short Time and Instantaneous Trip
• Frame Size : LD Frame
• Temp Rating : -13¡F-158¡F
• Protection : Thermal Magnetic

Product Data

• UPC : 783643213760
• GTIN : 00783643213760
• Country of Origin : Mexico
• Dimensions : 8.661 x 12.992 x 6.708
• Weight : 18.387
• Certification : Ul Listed
