Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
LXD63B500

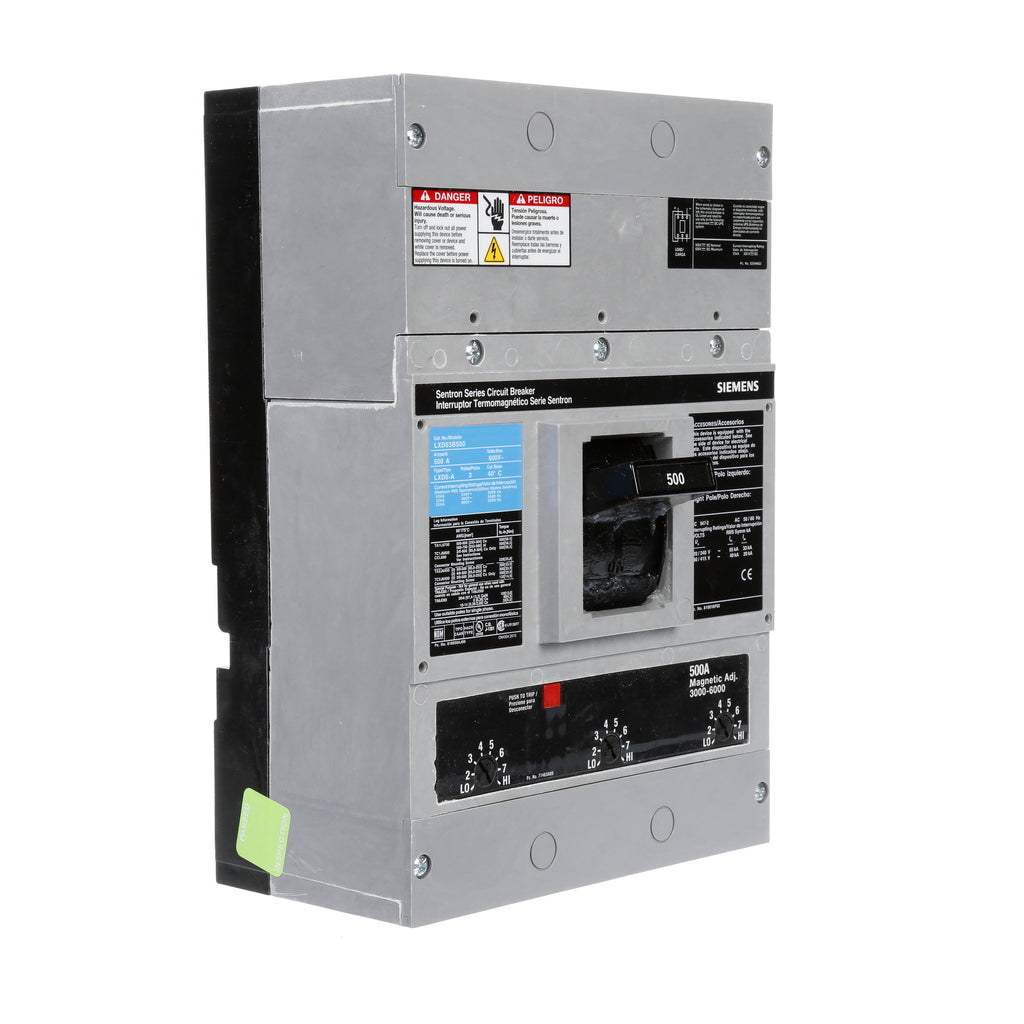

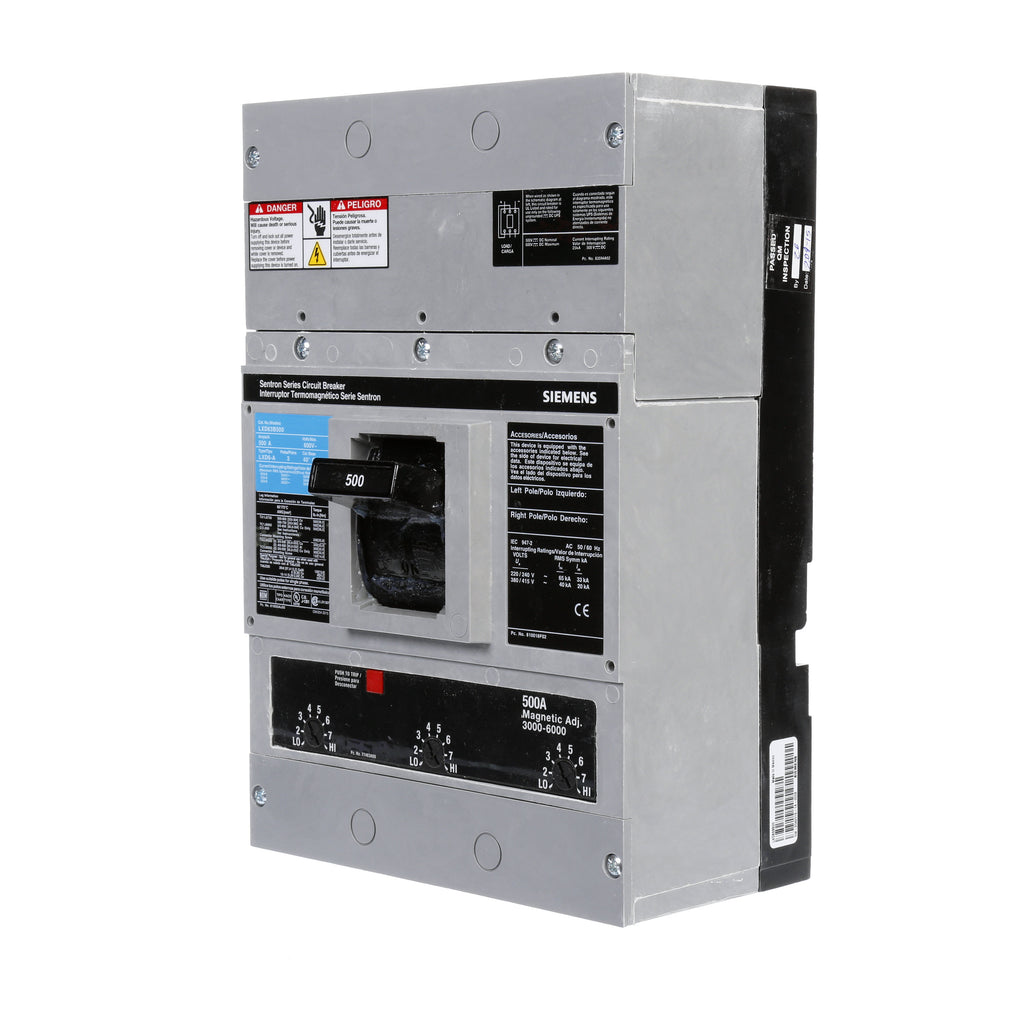

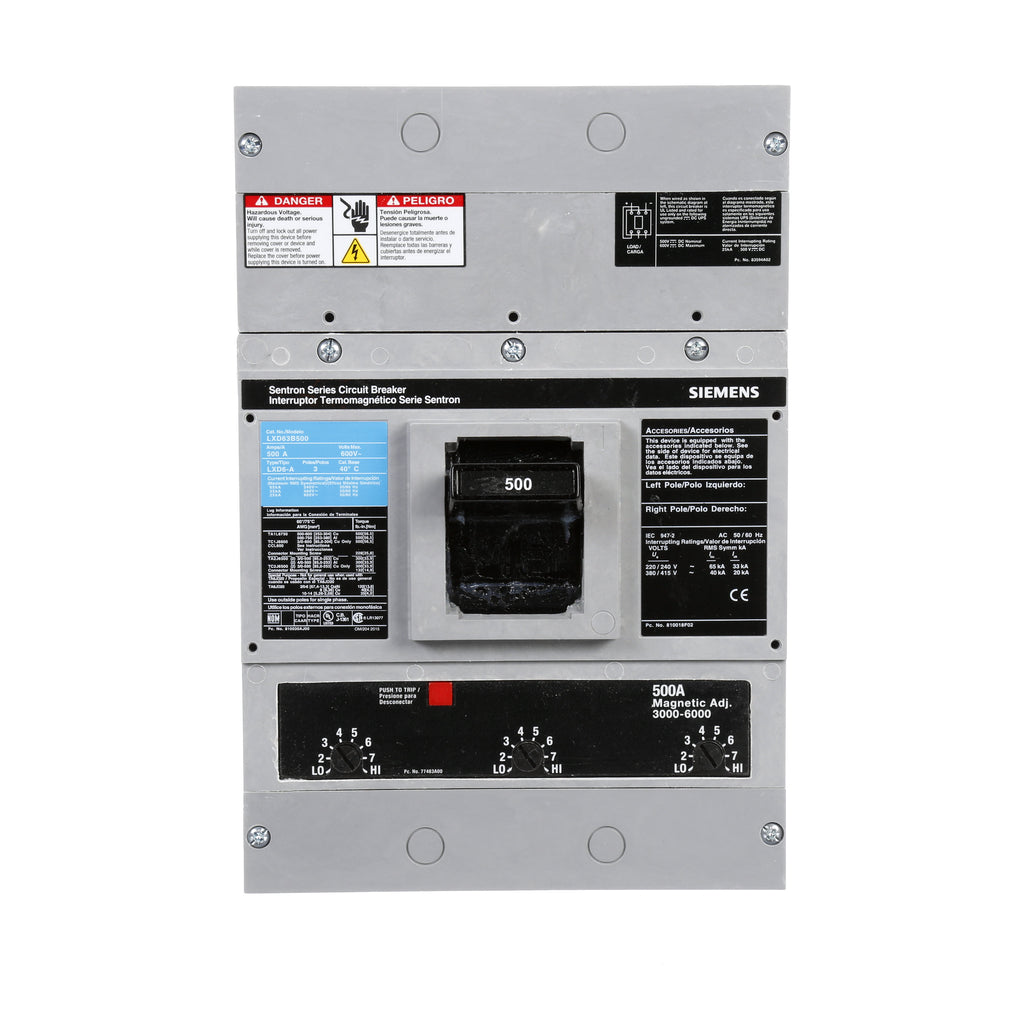

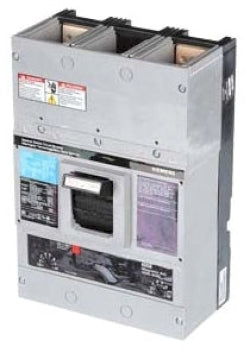

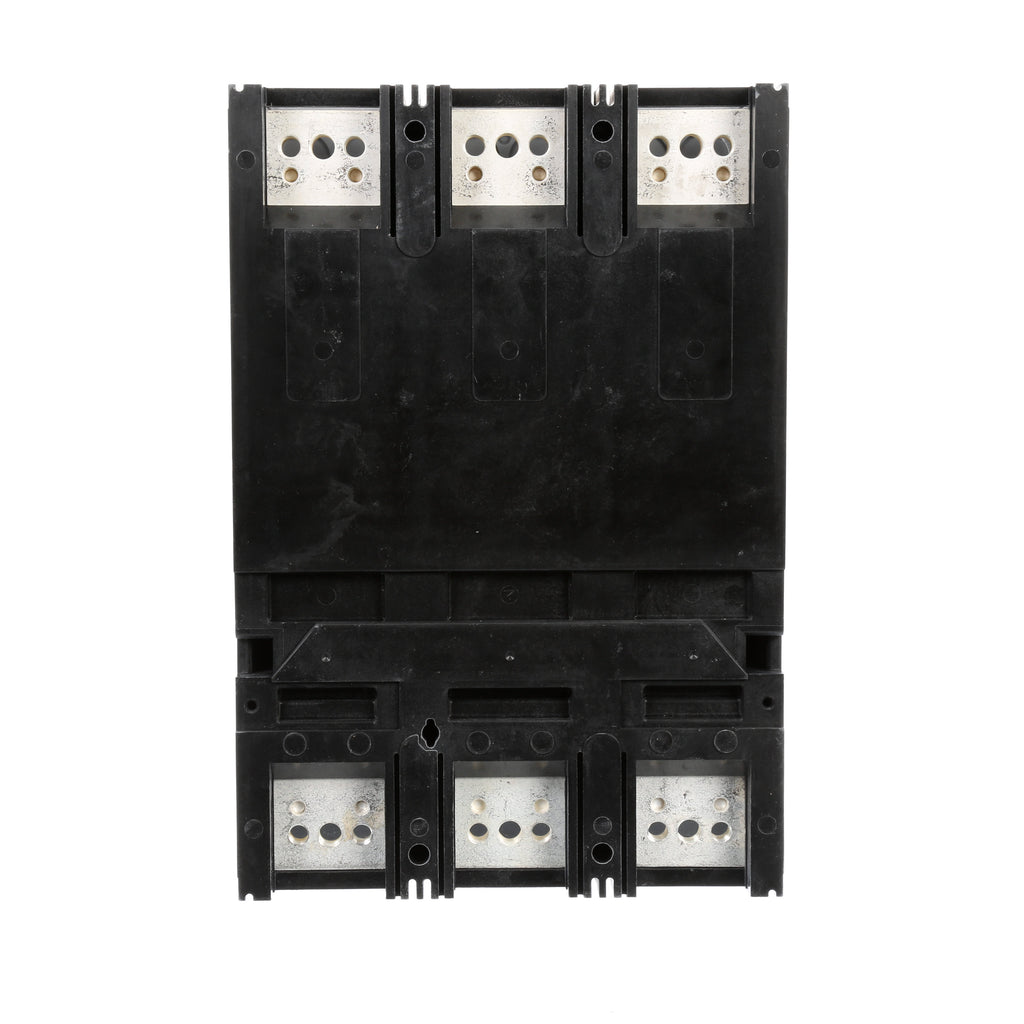

LXD63B500 - Siemens Sentron molded case circuit breaker with LD frame, 500A rating, 3 poles, and thermal-magnetic trip unit.This Siemens LXD63B500 is a type LXD6 low voltage molded case circuit breaker featuring a non-interchangeable thermal-magnetic trip unit with LI functions (long-time and instantaneous). It offers standard breaking capacity of 25kA at 600VAC and 35kA at 480VAC, bolt-on mounting, and 40 degree C temperature rating. Designed for 50/60 Hz frequency and 3-phase applications.
- Part Number: LXD63B500
- Manufacturer: Siemens
- Amperage Rating: 500A
- Voltage Rating: 600VAC
- Number of Poles: 3
- Frame Size: LD
- Mounting Type: Bolt-On
- Trip Unit: Thermal-Magnetic, Non-Interchangeable
- Trip Functions: LI (Long-Time/Instantaneous)
- Interrupt Rating: 25kA@600V, 35kA@480V
- Frequency: 50/60 Hz
- Temperature Rating: 40 deg C
Additional Information
Lugs are not included
Specifications
- Part Number: LXD63B500
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : LXD
- Voltage : 600
- Amperage : 500
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : Long Time, Short Time and Instantaneous Trip
- Frame Size : LD Frame
- Temp Rating : -13¡F-158¡F
- Protection : Thermal Magnetic
Product Data
- UPC : 783643213753
- GTIN : 00783643213753
- Country of Origin : Mexico
- Dimensions : 8.661 x 12.992 x 6.705
- Weight : 18.248
- Certification : Ul Listed
