LX36600G - Square D 600 Amp 600 Volt 3 Pole Molded Case Circuit Breaker L Frame with Ground Fault

LX36600G

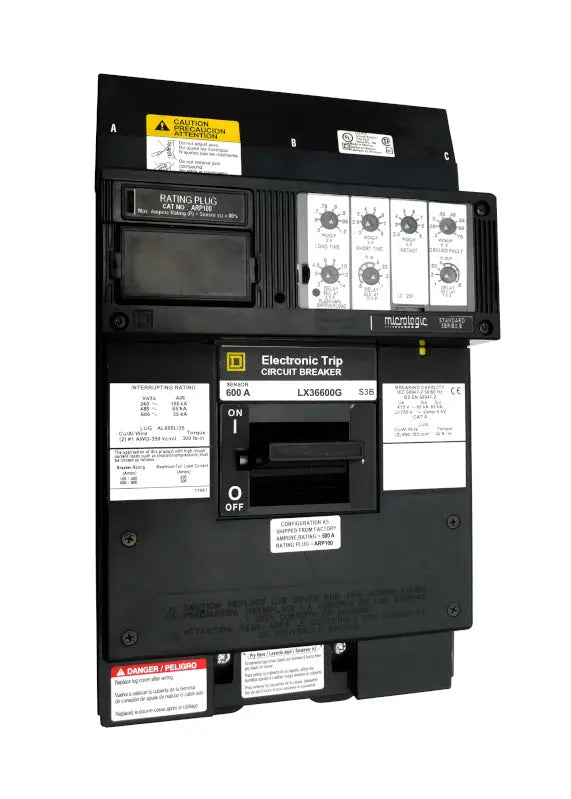

LX36600G is a Square D 3 pole molded case circuit breaker with a 600 ampere current rating and 600 volt maximum AC voltage rating. It features an electronic trip unit with ground fault protection for reliable circuit interruption.This breaker is designed with an I-Line style plug-in mounting and an L frame type. It offers a high interrupting rating of 100kA at 240VAC, 65kA at 277/480VAC, and 35kA at 347/600VAC. The trip unit includes long-time, short-time, instantaneous, and ground fault functions, ensuring comprehensive protection. It is UL, CSA, and CE certified and supports aluminum or copper load lug terminals.

Key Specifications
• Manufacturer: Square D
• Part Number: LX36600G
• Current Rating: 600 Amps
• Voltage Rating: 600 Volts AC
• Poles: 3
• Frame Type: L Frame
• Mounting Type: I-Line Style Plug-In
• Interrupting Rating: 100kA @ 240VAC, 65kA @ 277/480VAC, 35kA @ 347/600VAC
• Trip Unit: Electronic LSIG with Ground Fault
• Terminal Type: Aluminum/Copper Load Lug
• Certifications: UL, CSA, CE
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: LX36600G
• Manufacturer : Square D
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Micrologic
• Type : LX
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Protection : Solid State



Product Data

• UPC : 785901758358
• Weight : 41
• Certification : UL, CSA, CE, NOM
