LV434550 - Schneider Electric Micrologic 2.2 AB Electronic Trip Unit 100A 4 Poles 4D for Compact NSX Circuit Breakers

LV434550

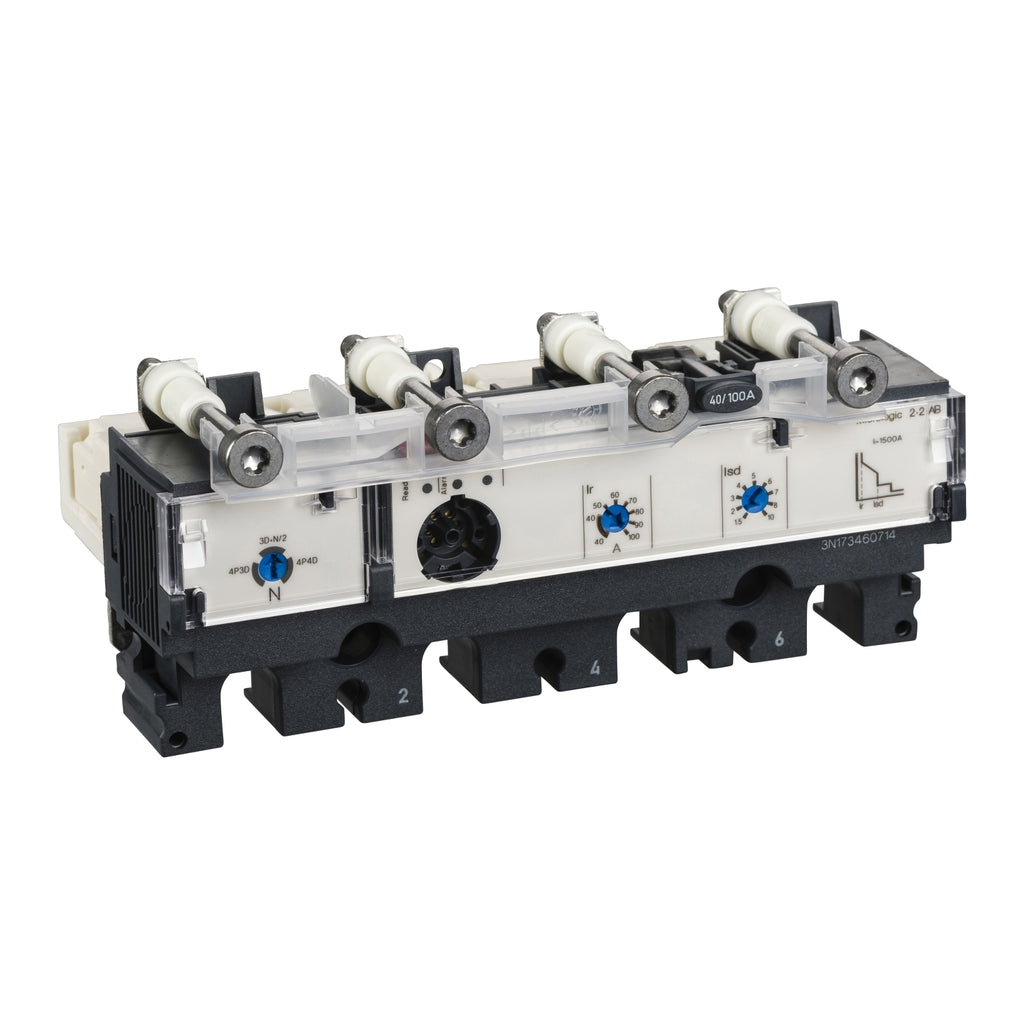

LV434550 is a Micrologic 2.2 AB electronic trip unit designed for Schneider Electric Compact NSX 100, 160, and 250 circuit breakers with a 100 ampere rating and 4 poles 4D configuration.LV434550 provides precise electronic protection and control for Compact NSX circuit breakers, featuring adjustable overload and short-circuit release settings. It supports a rated permanent current of 100 A, with an overload release current setting range from 42 to 120 A and an undelayed short-circuit release setting fixed at 1500 A. This trip unit is self-powered and does not include ground fault protection.

Key Specifications
• Manufacturer: Schneider Electric
• Part Number: LV434550
• Type: Micrologic 2.2 AB Electronic Trip Unit
• Compatible with: Compact NSX 100/160/250 Circuit Breakers
• Rated Current: 100 A
• Number of Poles: 4 Poles 4D
• Overload Release Setting Range: 42-120 A
• Undelayed Short-Circuit Release Setting: 1500 A
• Voltage Type: Self Powered
• Ground Fault Protection: No
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: LV434550
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Compact NSX
• Type : LV4
• Voltage : 690
• Amperage : 100
• Poles : 4
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Trip Type : MicroLogic 2.2 AB



Product Data

• Weight : 1.257
• Standards : UL 508, EN/IEC 60947-2
• Certification : EAC, CCC, Marine
