LV431516 - Schneider Electric MicroLogic 6.2 E Trip Unit 250A 4P4D

LV431516

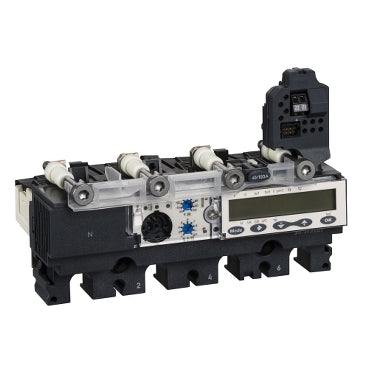

LV431516 is a MicroLogic 6.2 E electronic trip unit designed for Compact NSX 250 circuit breakers.

This 4 poles 4d trip unit delivers advanced protection and monitoring capabilities for industrial power distribution systems. The MicroLogic 6.2 E provides LSIG protection functions (Long-time, Short-time, Instantaneous, and Ground fault) with adjustable settings to match application requirements. Rated at 250A with operational voltage of 690V AC at 50/60 Hz, this trip unit integrates seamlessly into Compact NSX 250 molded case circuit breaker frames.

• Rated Current: 250A at 40°C
• Rated Operational Voltage: 690V AC, 50/60 Hz
• Configuration: 4 Poles 4d
• Trip Unit Type: MicroLogic 6.2 E Electronic
• Protection Functions: LSIG (Long-time, Short-time, Instantaneous, Ground fault)
• Long-time Pickup Adjustment Range: 100-250A with 9 settings
• Compatible Frame: Compact NSX 250
• Application: Industrial power distribution and circuit protection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LV431516
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Trip Units & Programmers
• Family : Compact
• Type : LV4
• Voltage : 690
• Poles : 4
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Amperage Maximum : 250
• Amperage Minimum : 250
• Protection : Solid State
• Compatible Frames : NS,NSF,NSX,NFNF,NFNL,NFHF,NFHL
• Trip Type : MicroLogic 6.2 E

Product Data

• GTIN : 03606480017131
• Dimensions : Depth 23.62 in (600 mm) Width 35.43 in (900 mm) Height 82.68 in (2100 mm)
• Weight : 1.469
• Standards : EN/IEC 60947-2, UL 508
