Description
LV431515

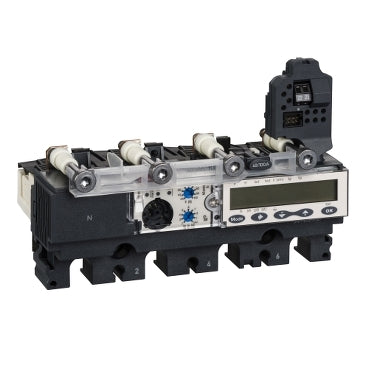

LV431515 is a Micrologic 6.2A electronic trip unit designed for Compact NSX250 circuit breakers, providing reliable protection for electrical distribution systems. This trip unit features a 250A rating and 4 poles, supporting advanced protection functions including LSIG (Long-time, Short-time, Instantaneous, Ground fault). It is engineered for use in Compact NSX100 to NSX250 series breakers, offering precise ammeter monitoring and flexible configuration for demanding applications.
- Part Number: LV431515
- Manufacturer: Schneider Electric
- Series/Frame: Compact NSX250
- Amperage: 250A
- Poles: 4
- Mounting Type: Plug-in
- Interrupt Rating: 65kA
- Voltage: 690V AC
- Trip Unit Type: Micrologic 6.2A (LSIG)
- Application: Distribution
- Neutral Position: Left
- Protected Poles: 3t, 3t + 1.6N, 3t + N/2, 4t
Specifications
- Part Number: LV431515
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Circuit Breaker
- Item Subcategory : Trip Units & Programmers
- Family : Compact
- Type : LV4
- Voltage : 690
- Poles : 4
- Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
- Amperage Maximum : 250
- Amperage Minimum : 250
- Protection : Solid State
- Compatible Frames : NS,NSF,NSX,NFNF,NFNL,NFHF,NFHL
- Trip Type : MicroLogic 6.2 A
Product Data
- GTIN : 03606480016677
- Dimensions : Depth 23.62 in (600 mm) Width 35.43 in (900 mm) Height 82.68 in (2100 mm)
- Weight : 4
- Standards : UL 508, EN/IEC 60947-2
