LV431506 - Schneider Electric MicroLogic 6.2 E Electronic Trip Unit 250A 3P for Compact NSX 250 Circuit Breakers

Save $972.92
SKU: LV431506-New
Condition: New
Price:
$2,686.48 $3,659.40
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

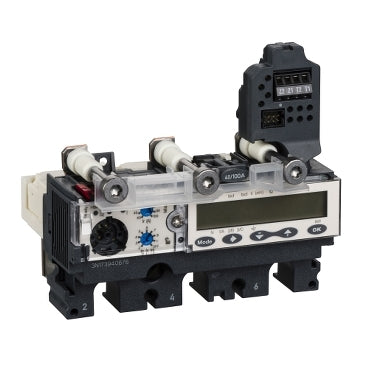

LV431506 Schneider Electric Circuit Breaker Trip Unit Compact - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
LV431506 Schneider Electric Circuit Breaker Trip Unit Compact - Essential Electric Supply

Description

LV431506


LV431506 is a MicroLogic 6.2 E electronic trip unit designed for use with Compact NSX 250 circuit breakers. This trip unit provides advanced protection and monitoring for distribution applications. The LV431506 trip unit is compatible with Schneider Electric Compact NSX 250 circuit breakers and features a 250A electronic rating. It is a 3-pole, 3 protected pole device intended for AC networks with a frequency of 50/60 Hz. The MicroLogic 6.2 E (Energy) trip unit offers enhanced energy monitoring and protection functions for improved system reliability.
  • Part Number: LV431506
  • Manufacturer: Schneider Electric
  • Series/Frame: Compact NSX 250
  • Amperage: 250A
  • Poles: 3P
  • Protected Poles: 3t
  • Network Type: AC
  • Network Frequency: 50/60 Hz
  • Application: Distribution
  • Mounting Type: Circuit Breaker Integrated
  • Trip Unit Type: MicroLogic 6.2 E (Energy)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: LV431506
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Circuit Breaker
  • Item Subcategory : Trip Units & Programmers
  • Family : Compact
  • Type : LV4
  • Voltage : 690
  • Poles : 3
  • Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
  • Amperage Maximum : 250
  • Amperage Minimum : 250
  • Protection : Solid State
  • Compatible Frames : NS,NSF,NSX,NFNF,NFNL,NFHF,NFHL
  • Trip Type : MicroLogic 6.2 E

Product Data

  • GTIN : 03606480017124
  • Dimensions : Depth 23.62 in (600 mm) Width 35.43 in (900 mm) Height 82.68 in (2100 mm)
  • Weight : 1.238
  • Standards : UL 508, EN/IEC 60947-2
