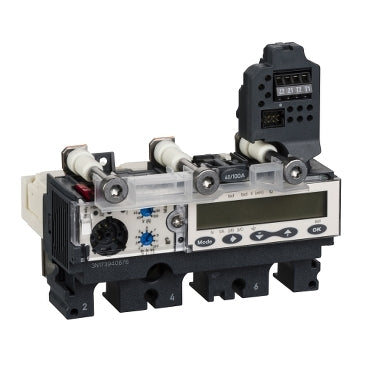

LV430506 - Schneider Electric MicroLogic 6.2 E Trip Unit 160A 3 Pole 3D for Compact NSX 160/250 Circuit Breakers

LV430506

LV430506 is a MicroLogic 6.2 E electronic trip unit designed for use with Schneider Electric Compact NSX 160/250 circuit breakers. This trip unit provides advanced protection and monitoring features for electrical distribution systems. The LV430506 trip unit offers LSIG distribution protection, a 160A rating, and is compatible with 3 pole 3D Compact NSX 160/250 breakers. It features an LCD display, maintenance indicators, and a fixed mounting mode for reliable installation. The unit supports ground fault protection and is engineered for energy management applications.

• Part Number: LV430506
• Manufacturer: Schneider Electric
• Series: MicroLogic 6.2 E
• Current Rating: 160A
• Rated Operational Voltage: 690V AC
• Poles: 3
• Mounting Type: Fixed
• Frame Compatibility: Compact NSX 160/250
• Trip Unit Type: Electronic
• Protection Type: LSIG, Ground Fault
• Display: LCD
• Indicators: Maintenance

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LV430506
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Trip Units & Programmers
• Family : Compact
• Type : LV4
• Voltage : 690
• Poles : 3
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Amperage Maximum : 160
• Amperage Minimum : 160
• Protection : Solid State
• Compatible Frames : NS,NSF,NSX,NFNF,NFNL,NFHF,NFHL
• Trip Type : MicroLogic 6.2 E

Product Data

• Dimensions : Depth 31.50 in (80 cm) Width 23.62 in (60 cm) Height 82.68 in (210 cm)
• Weight : 1.238
• Standards : EN/IEC 60947-2, UL 508
