LV430490 - Schneider Electric MicroLogic 5.2 A Trip Unit 160A 3-Pole NSX

Save $2,967.02
SKU: LV430490-New
Condition: New
Price:
$1,989.98 $4,957.00
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

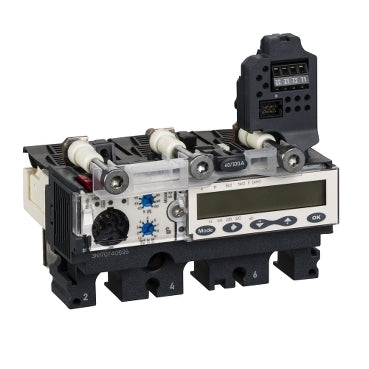

LV430490 Schneider Electric Circuit Breaker Trip Unit Compact - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
LV430490 Schneider Electric Circuit Breaker Trip Unit Compact - Essential Electric Supply

Description

LV430490


LV430490 is a MicroLogic 5.2 A electronic trip unit designed for ComPact NSX 160/250 circuit breakers. This trip unit provides advanced protection and monitoring capabilities for three-phase distribution applications. The unit features a 160A electronic rating with 3-pole, 3-phase configuration and operates on 50/60 Hz AC networks. The overload release current setting is adjustable from 66A to 192A, allowing customization for specific circuit protection requirements. Key Specifications
  • Part Number: LV430490
  • Manufacturer: Schneider Electric
  • Trip Unit Type: MicroLogic 5.2 A
  • Electronic Rating: 160A
  • Poles: 3-Pole (3P)
  • Protected Poles: 3-Phase (3t)
  • Network Type: AC
  • Frequency: 50/60 Hz
  • Overload Release Current Setting: 66A - 192A
  • Compatible Circuit Breakers: ComPact NSX 160/250
  • Application: Distribution
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: LV430490
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Circuit Breaker
  • Item Subcategory : Trip Units & Programmers
  • Family : Compact
  • Type : LV4
  • Voltage : 690
  • Poles : 3
  • Functions : LSI - Long-Time, Short-Time and Instantaneous
  • Amperage Maximum : 160
  • Amperage Minimum : 160
  • Protection : Solid State
  • Compatible Frames : NS,NSF,NSX,NFNF,NFNL,NFHF,NFHL
  • Trip Type : MicroLogic 5.2 A

Product Data

  • GTIN : 03606480016561
  • Dimensions : Depth 36.42 in (92.5 cm) Width 20.59 in (52.3 cm) Height 59.02 in (149.9 cm)
  • Weight : 2
  • Standards : UL 508, EN/IEC 60947-2
