LV430505 - Schneider Electric MicroLogic 6.2A Electronic Trip Unit 160A 3P for NSX 160/250 Circuit Breakers

LV430505

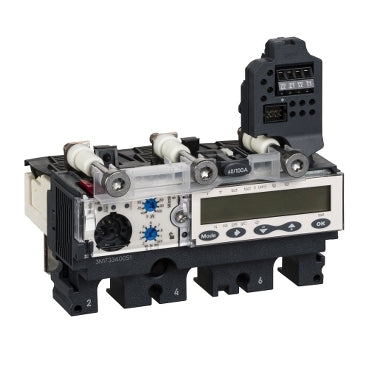

LV430505 is a MicroLogic 6.2A electronic trip unit designed for use with Schneider Electric Compact NSX 160/250 circuit breakers. This 3-pole trip unit provides advanced protection features including overload, short circuit, and ground fault protection, with adjustable settings for precise application requirements. The LV430505 trip unit offers electronic rating of 160A, 3 poles, and is compatible with NSX 160/250 frames. It features an LCD display for monitoring, local signaling LEDs, and supports energy metering, event logging, and maintenance indicators. The unit is suitable for distribution applications and provides reliable, customizable protection for electrical systems.

• Part Number: LV430505
• Manufacturer: Schneider Electric
• Series/Frame: NSX 160/250
• Amperage: 160A
• Poles: 3
• Mounting Type: Plug-in for NSX 160/250
• Trip Unit Type: MicroLogic 6.2A (Ammeter)
• Protection Functions: Overload, Short Circuit, Ground Fault
• Adjustable Long Time Pickup: 63–160A
• Adjustable Long Time Delay: 15–400s at 1.5 x Ir
• Adjustable Short Time Pickup: 1.5–10 x Ir
• Adjustable Short Time Delay: 0–0.4s

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LV430505
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Trip Units & Programmers
• Family : Compact
• Type : LV4
• Voltage : 690
• Poles : 3
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Amperage Maximum : 160
• Amperage Minimum : 160
• Protection : Solid State
• Compatible Frames : NS,NSF,NSX,NFNF,NFNL,NFHF,NFHL
• Trip Type : MicroLogic 6.2 A

Product Data

• GTIN : 03606480016646
• Dimensions : Depth 14.84 in (377 mm) Width 35.04 in (890 mm) Height 54.72 in (1390 mm)
• Weight : 2
• Standards : EN/IEC 60947-2, UL 508
