LV430495 - Schneider Electric Micrologic 5.2 A Trip Unit 160A 4-Pole

LV430495

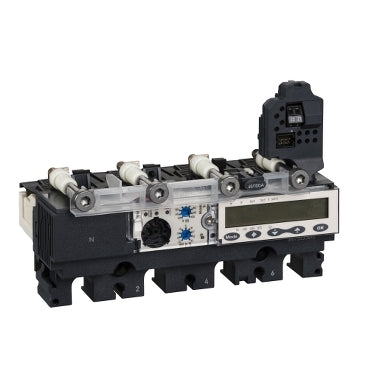

LV430495 is a Micrologic 5.2 A electronic trip unit designed for Compact NSX 160/250 circuit breakers.

This trip unit is engineered for distribution applications requiring precise electronic protection. The Micrologic 5.2 A provides ammeter functionality with 4-pole 4d configuration, delivering reliable overcurrent and short-circuit protection for industrial and commercial power distribution systems. Compatible with NSX Compact circuit breaker frames, this unit integrates seamlessly into existing installations.

Key Specifications

• Part Number: LV430495
• Manufacturer: Schneider Electric
• Trip Unit Type: Micrologic 5.2 A
• Amperage Rating: 160A
• Poles: 4 Poles 4d
• Voltage: 690V
• Circuit Breaker Series: Compact NSX 160/250
• Application: Distribution
• Protection Type: Electronic

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LV430495
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Trip Units & Programmers
• Family : Compact
• Type : LV4
• Voltage : 690
• Poles : 4
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Amperage Maximum : 160
• Amperage Minimum : 160
• Protection : Solid State
• Compatible Frames : NS,NSF,NSX,NFNF,NFNL,NFHF,NFHL
• Trip Type : MicroLogic 5.2 A

Product Data

• GTIN : 03606480016578
• Dimensions : Depth 36.42 in (92.5 cm) Width 20.59 in (52.3 cm) Height 59.06 in (150 cm)
• Weight : 1.444
• Standards : EN/IEC 60947-2, UL 508
