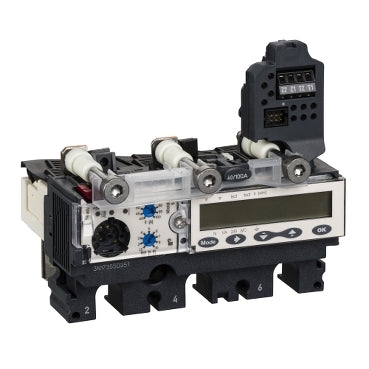

LV430491 - Schneider Electric Micrologic 5.2 E Electronic Trip Unit 160A 3 Poles for Compact NSX 160/250 Circuit Breakers

LV430491

LV430491 is a Micrologic 5.2 E electronic trip unit designed for Schneider Electric Compact NSX 160/250 circuit breakers, providing advanced protection and control.This trip unit offers a 160 ampere rating with 3 poles and 3d configuration, delivering precise electronic overload, short-circuit, and instantaneous protection for molded case circuit breakers. It is compatible with NSX 160 and NSX 250 frames, enhancing breaker functionality with reliable and adjustable trip settings.

Key Specifications
• Manufacturer: Schneider Electric
• Part Number: LV430491
• Trip Unit Type: Micrologic 5.2 E Electronic
• Current Rating: 160A
• Number of Poles: 3
• Compatible Breaker Series: Compact NSX 160/250
• Protection Functions: Overload (Long Time), Short Time, Instantaneous
• Mounting Type: For molded case circuit breakers
• Voltage Rating: Up to 690V
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: LV430491
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Trip Units & Programmers
• Family : Compact
• Type : LV4
• Voltage : 690
• Poles : 3
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Amperage Maximum : 160
• Amperage Minimum : 160
• Protection : Solid State
• Compatible Frames : NS,NSF,NSX,NFNF,NFNL,NFHF,NFHL
• Trip Type : MicroLogic 5.2 E



Product Data

• UPC : 060648001702
• GTIN : 03606480017025
• Dimensions : Depth 36.42 in (92.5 cm) Width 20.59 in (52.3 cm) Height 59.02 in (149.9 cm)
• Weight : 1.238
• Standards : EN/IEC 60947-2, UL 508
