LV430480 - Schneider Electric MicroLogic 2.2 Trip Unit 160A 4 Poles

Save $1,365.27
SKU: LV430480-New
Condition: New
Price:
$905.43 $2,270.70
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

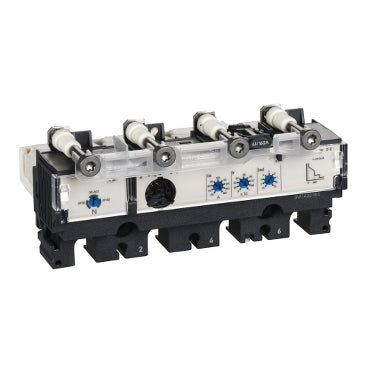

LV430480 Schneider Electric Circuit Breaker Trip Unit Compact - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
LV430480 Schneider Electric Circuit Breaker Trip Unit Compact - Essential Electric Supply

Description

LV430480


LV430480 is a MicroLogic 2.2 electronic trip unit designed for Compact NSX 160/250 circuit breakers with a 160A rating and 4 poles 4d configuration.

This electronic trip unit provides instantaneous short-circuit protection and is engineered as an optimum solution for power distribution applications. The MicroLogic 2.2 technology delivers reliable protection and coordination capabilities for industrial and commercial electrical systems using Compact NSX circuit breaker platforms.

Key Specifications

  • Trip Unit Type: MicroLogic 2.2 Electronic
  • Amperage Rating: 160A at 40 degrees Celsius
  • Poles Configuration: 4 poles 4d
  • Compatible Circuit Breaker Series: Compact NSX 160/250
  • Protection Functions: LSoI (Long Short Overload Instantaneous)
  • Protection Type: Instantaneous short-circuit

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

  • Part Number: LV430480
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Circuit Breaker
  • Item Subcategory : Trip Units & Programmers
  • Family : Compact
  • Type : LV4
  • Voltage : 690
  • Poles : 4
  • Functions : LSI - Long-Time, Short-Time and Instantaneous
  • Amperage Maximum : 160
  • Amperage Minimum : 160
  • Protection : Solid State
  • Compatible Frames : NS,NSF,NSX,NFNF,NFNL,NFHF,NFHL
  • Trip Type : MicroLogic 2.2

Product Data

  • UPC : 060648001622
  • GTIN : 03606480016226
  • Dimensions : Depth 32.99 in (83.8 cm) Width 22.01 in (55.9 cm) Height 59.02 in (149.9 cm)
  • Weight : 1.263
  • Standards : UL 508, EN/IEC 60947-2
