Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Motor Operator
Description
LV429441

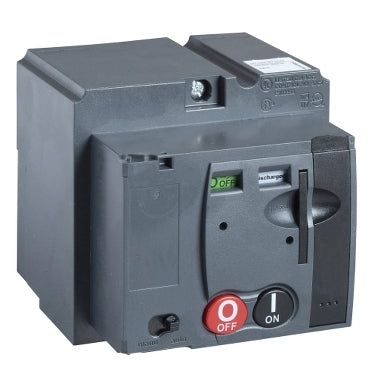

LV429441 is a communicating motor mechanism module designed for use with Schneider Electric ComPacT NSX100/160 circuit breakers, providing remote operation and integration capabilities. This module enables remote control of the circuit breaker through a communicating interface, supporting both impulse and maintained control signals. It is compatible with the ComPacT NSX100 and NSX160 frames and operates on a control voltage of 220/240VAC at 50/60Hz. The device features a fast response time, with less than 700ms to open and less than 80ms to close, and supports a maximum operating frequency of four cycles per minute. The module is designed for easy installation and integration into existing systems.
- Compatible with ComPacT NSX100/160 frames
- Control voltage: 220/240VAC 50/60Hz
- Maximum power consumption: less than 500VA
- Control signal type: Impulse, Maintained
- Response time: < 700ms open, < 80ms closed
- Maximum operating frequency: 4 per minute
- Padlocking capability
- Communicating motor mechanism module
- Designed for remote operation
- Fast installation and integration
Specifications
- Part Number: LV429441
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Circuit Breaker
- Item Subcategory : Motor Operator
- Family : Compact
- Type : LV4
- Control Voltage Minimum : 220
- Compatible Frames : NSX
- Control Voltate Maximum : 240
Product Data
- GTIN : 03606480020247
- Country of Origin : Italy
- Dimensions : Depth 33.35 in (84.7 cm) Width 21.65 in (55 cm) Height 77.56 in (197 cm)
- Weight : 3.058
