Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Auxiliary
Description

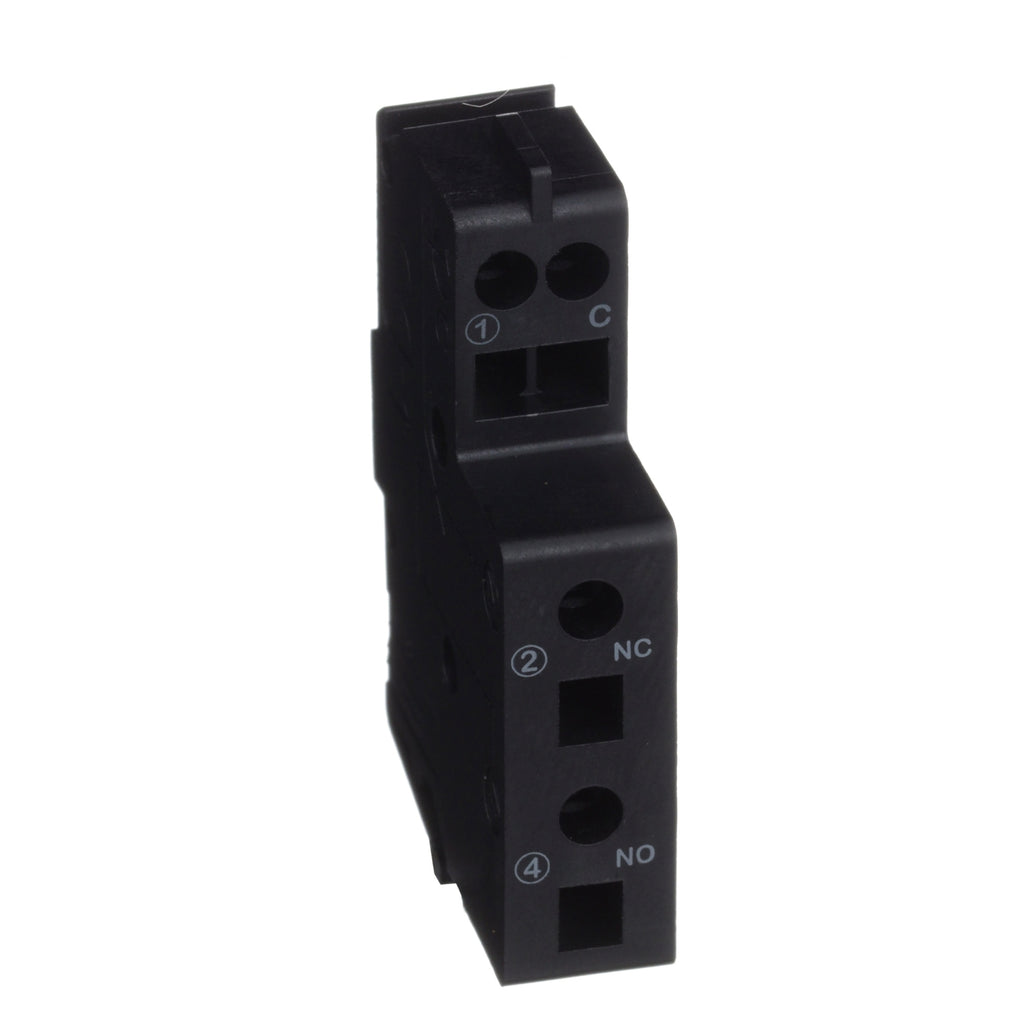

LV426950
LV426950 is a standard auxiliary contact designed for use with Compact NSXm and PowerPact B circuit breakers. This device provides two remote status signals for monitoring breaker position and alarm functions. The LV426950 features a clip-on mounting design for easy installation and reliable operation. It is rated for 5A current and supports a wide voltage range from 48 to 480VAC and 48 to 250VDC. The auxiliary contact is suitable for AC12, AC13, DC12, DC13, and DC14 utilization categories, ensuring compatibility with a variety of control circuits.
- Part Number: LV426950
- Manufacturer: Square D
- Mounting Type: Clip-on
- Rated Current: 5A
- Minimum Load: 2mA @ 17VDC
- AC Voltage Rating: 48-480VAC
- DC Voltage Rating: 48-250VDC
- Utilization Categories: AC12, AC13, DC12, DC13, DC14
- Series Compatibility: Compact NSXm, PowerPact B
- Function: Standard Auxiliary Contact (1a/1b)
- Application: Remote status monitoring and alarm signaling
- Standards: UL Listed
Specifications
- Part Number: LV426950
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Circuit Breaker
- Item Subcategory : Auxiliary
- Family : Powerpact
- Type : LV4
- Voltage : 48 to 480VAC, 48 to 250VDC
- Configuration : 1A/1B
- Compatible Frames : B
Product Data
- UPC : 606485444218
- GTIN : 03606490000000
- Country of Origin : China
- Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
- Weight : 0.055
- Standards : RoHS
- Certification : CCC, EAC, IEC, EN
