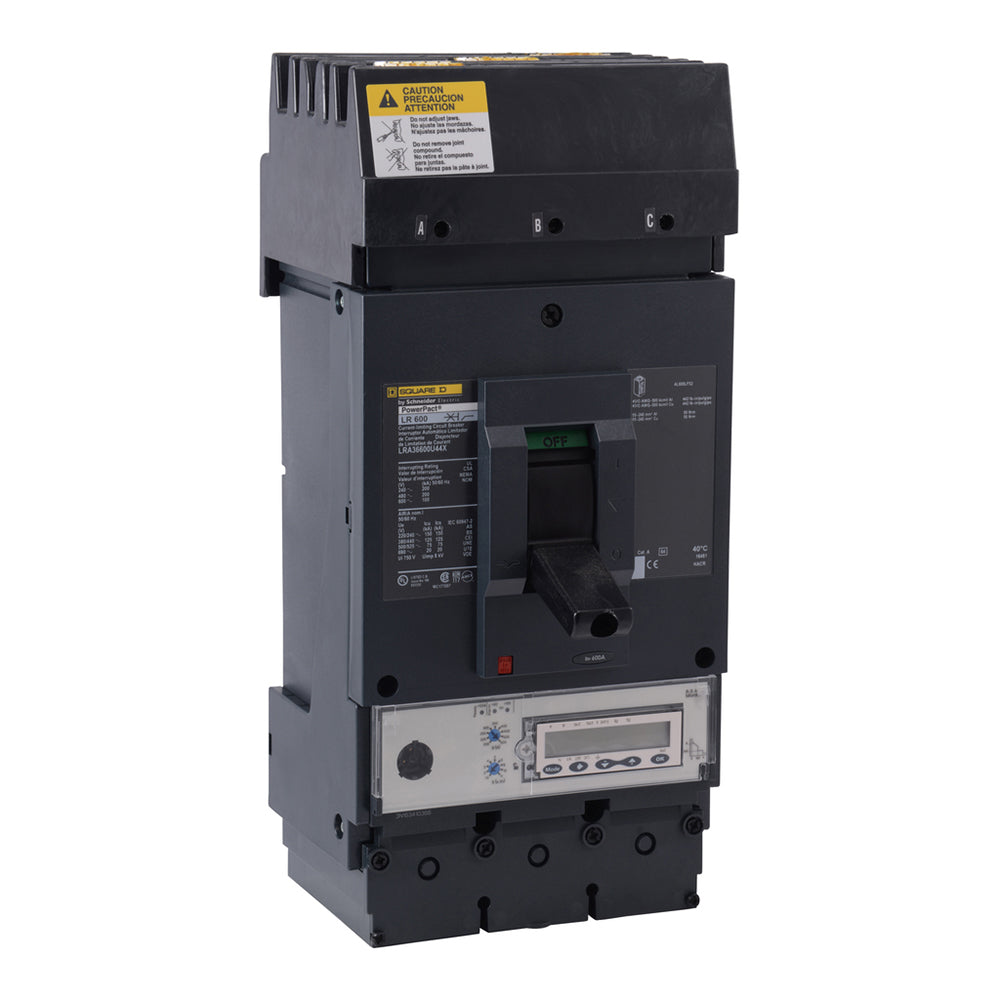

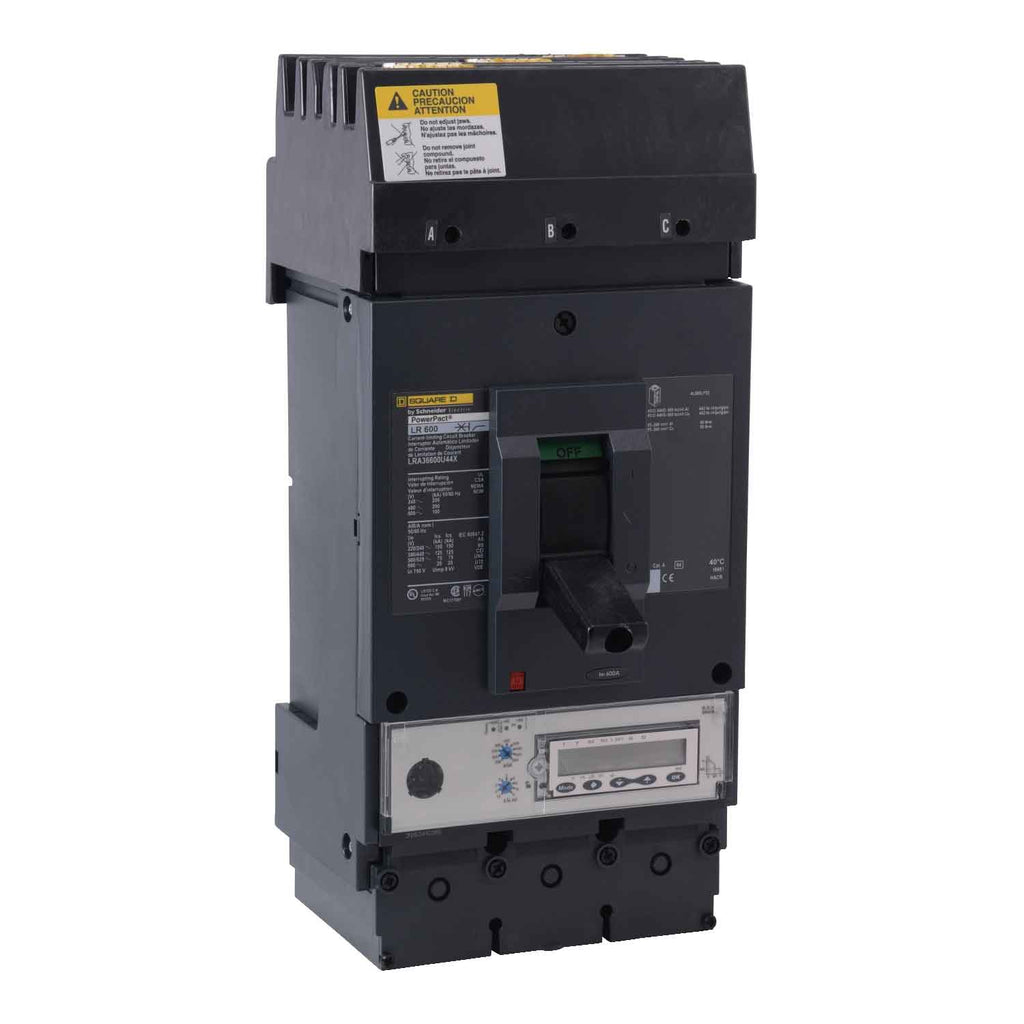

LRA36600U44X - Square D 600A 600V 3-Pole PowerPact L Molded Case Circuit Breaker with MicroLogic Trip Unit

LRA36600U44X

LRA36600U44X is a Square D PowerPact L molded case circuit breaker designed for reliable power distribution and protection.This 3-pole circuit breaker is rated for 600 amps and 600 volts AC, featuring a MicroLogic trip unit with a 6.3A trip setting. It provides an interrupting rating of 100kA at 600VAC and is compatible with I-Line style plug-in mounting. The breaker is UL 489 listed and certified by CSA, NEMA, IEC, and other standards, ensuring compliance and safety in industrial and commercial applications.

• Manufacturer: Square D
• Amperage: 600A
• Voltage: 600V AC
• Poles: 3
• Frame/Series: PowerPact L
• Trip Unit: MicroLogic with 6.3A trip setting
• Interrupt Rating: 100kA at 600VAC
• Mounting Type: I-Line plug-in
• Certifications: UL 489, CSA, NEMA, IEC, CE

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LRA36600U44X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : LRA
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 200kA@480V
• Connection : I-Line Style Plug-In
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Solid State

Product Data

• Country of Origin : United States
• Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
• Weight : 0.014
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 2 x AWG 2/0...500 kcmil aluminium/copper
