Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
LRA36600U31X

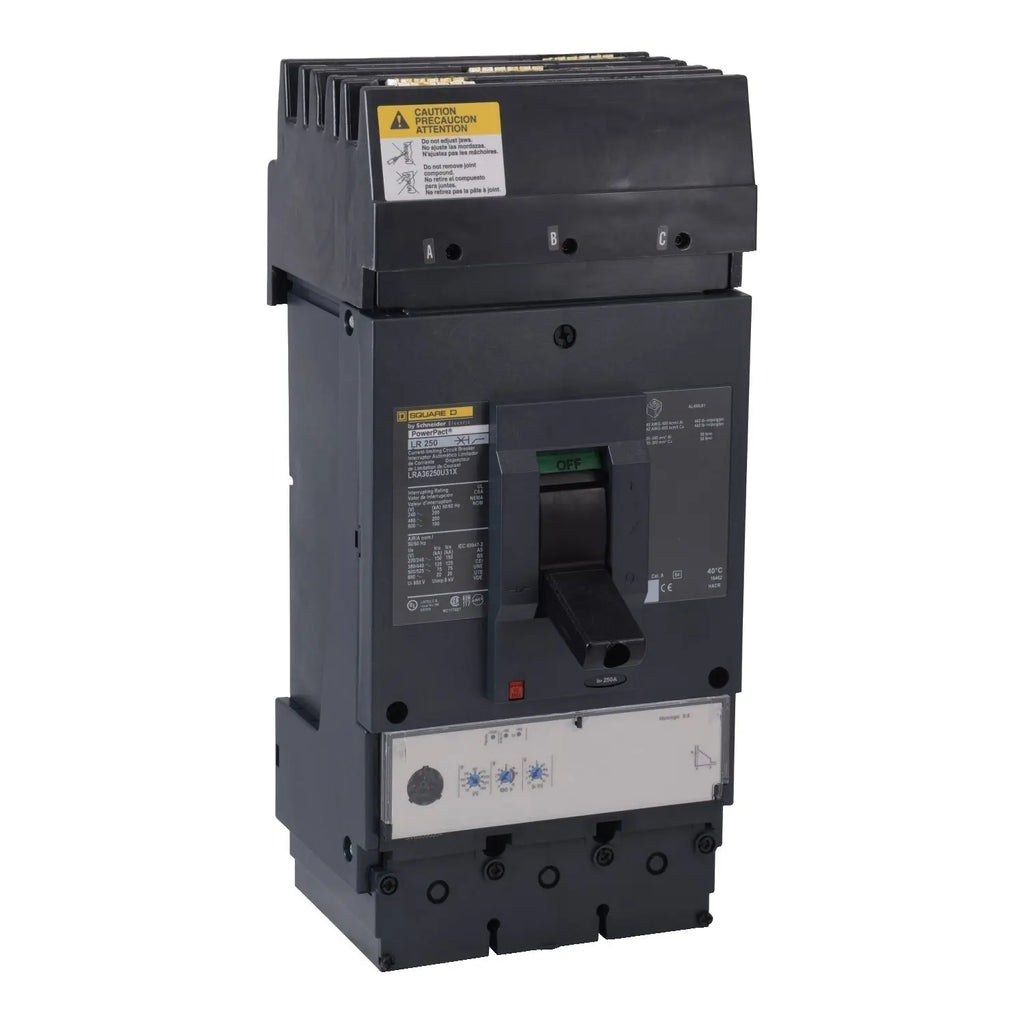

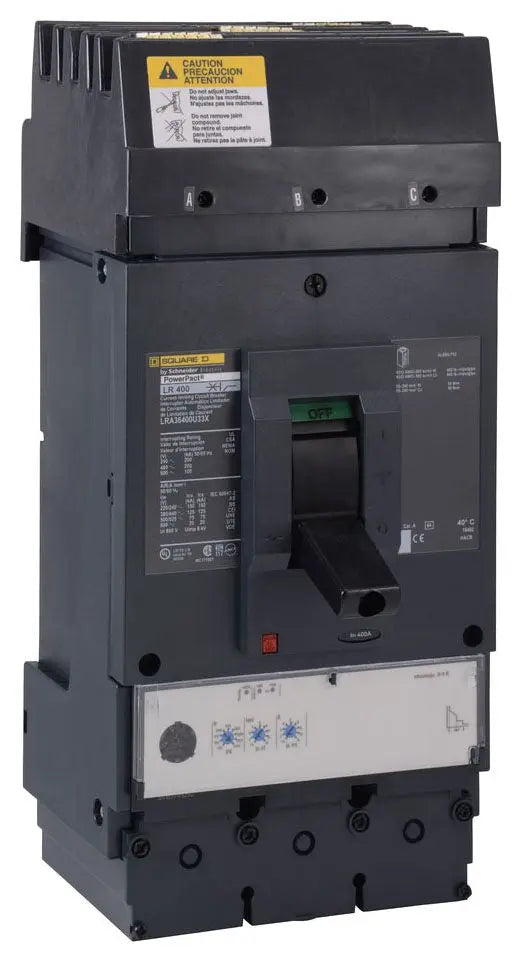

LRA36600U31X is a Square D PowerPact L-Frame molded case circuit breaker designed for reliable protection of electrical systems.This 3-pole circuit breaker features a 600 ampere rating and operates at 600 volts AC. It has a high interrupt rating of 200kA at 480V, ensuring robust short circuit and overload protection. The breaker uses an I-Line style plug-in mounting type, allowing easy installation and replacement. It is UL listed and suitable for reverse connection applications.
- Manufacturer: Square D
- Model: LRA36600U31X
- Amperage: 600A
- Voltage: 600 VAC
- Poles: 3
- Interrupt Rating: 200kA at 480V
- Series/Frame: PowerPact L
- Mounting Type: I-Line Plug-In
- Trip Unit: Thermal-Magnetic
- Certifications: UL Listed
Specifications
- Part Number: LRA36600U31X
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : LRA
- Voltage : 600
- Amperage : 600
- Phase : 3
- Poles : 3
- AIC rating : 200kA@480V
- Connection : I-Line Style Plug-In
- Functions : LI - Long-Time and Instantaneous
- Frame Size : L Frame
- Temp Rating : 28-158 °F (-2-70 °C)
- Protection : Solid State
Product Data
- UPC : 060648628391
- GTIN : 03606486283912
- Country of Origin : United States

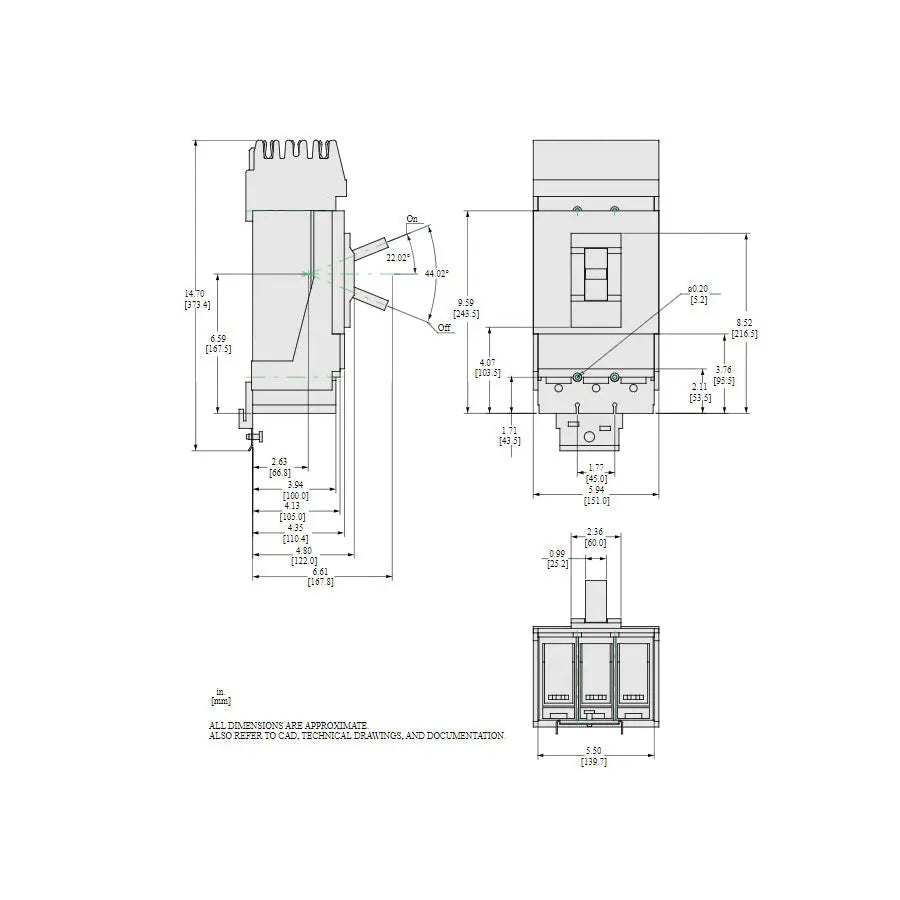

- Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
- Weight : 14
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
- Certification : UL, CSA, NOM
- Wire Size : 2 x AWG 2/0...500 kcmil aluminium/copper
