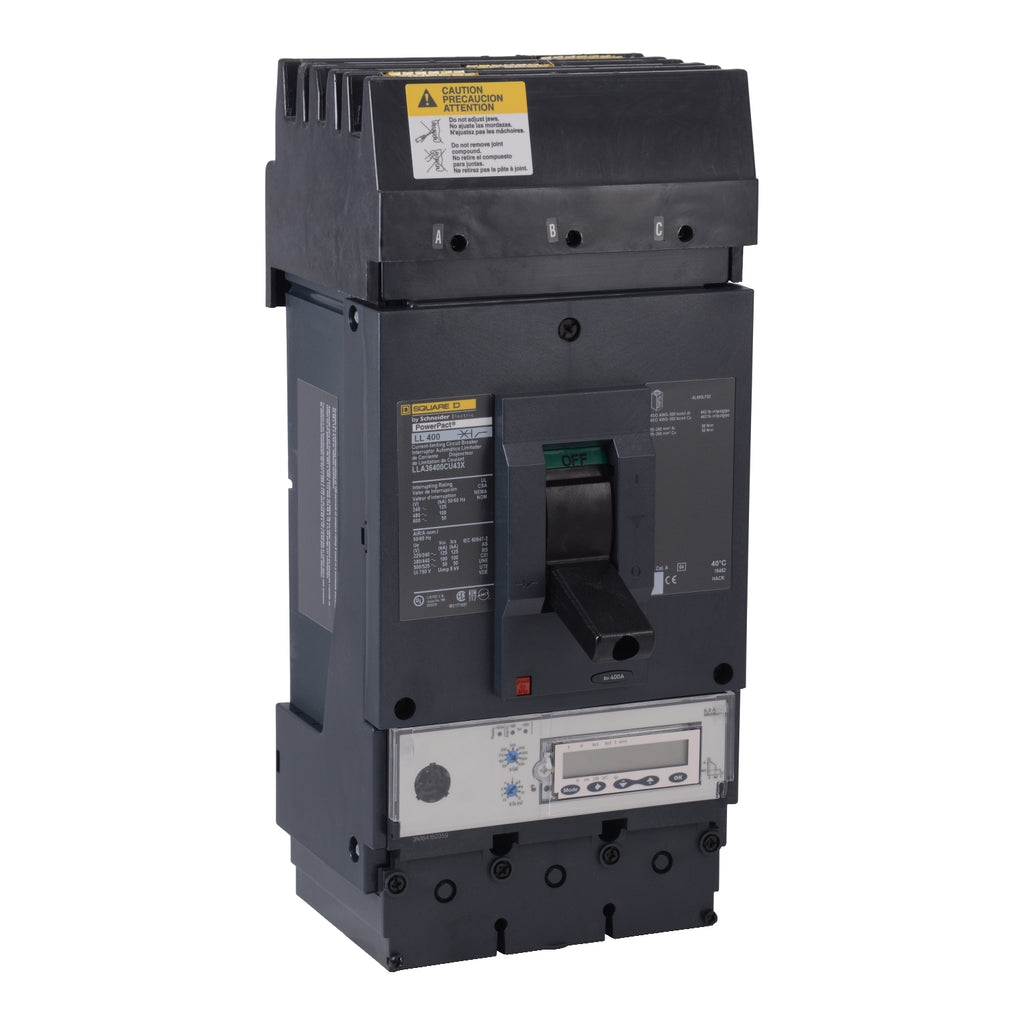

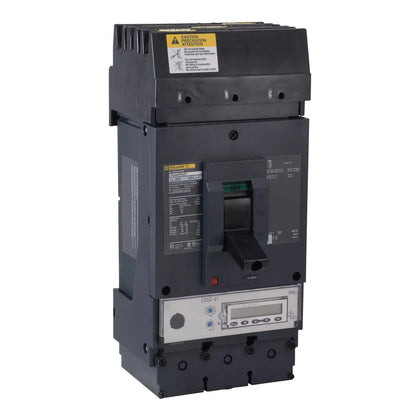

LRA36600U43X - Square D Powerpact L 600A 600V 3-Pole I-Line Molded Case Circuit Breaker with MicroLogic 5.3A Trip Unit

LRA36600U43X

LRA36600U43X is a Square D Powerpact L series molded case circuit breaker designed for reliable power distribution and protection.This 3-pole breaker features a 600 ampere rating, 600 volt AC voltage rating, and an interrupt rating of 100kA at 600VAC. It uses an I-Line style plug-in mounting and includes a MicroLogic 5.3A electronic trip unit for advanced protection and control. The breaker is suitable for industrial and commercial applications requiring high interrupt capacity and precise trip characteristics.

• Amperage: 600A
• Voltage: 600VAC
• Poles: 3
• Interrupt Rating: 100kA at 600VAC
• Series/Frame: Powerpact L
• Mounting Type: I-Line Plug-In
• Trip Unit: MicroLogic 5.3A Electronic
• Continuous Current Rating: 80%
• Control Type: Toggle
• Certifications: UL, CSA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LRA36600U43X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : LRA
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 200kA@480V
• Connection : I-Line Style Plug-In
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Solid State

Product Data

• UPC : 606486283939
• GTIN : 03606490000000

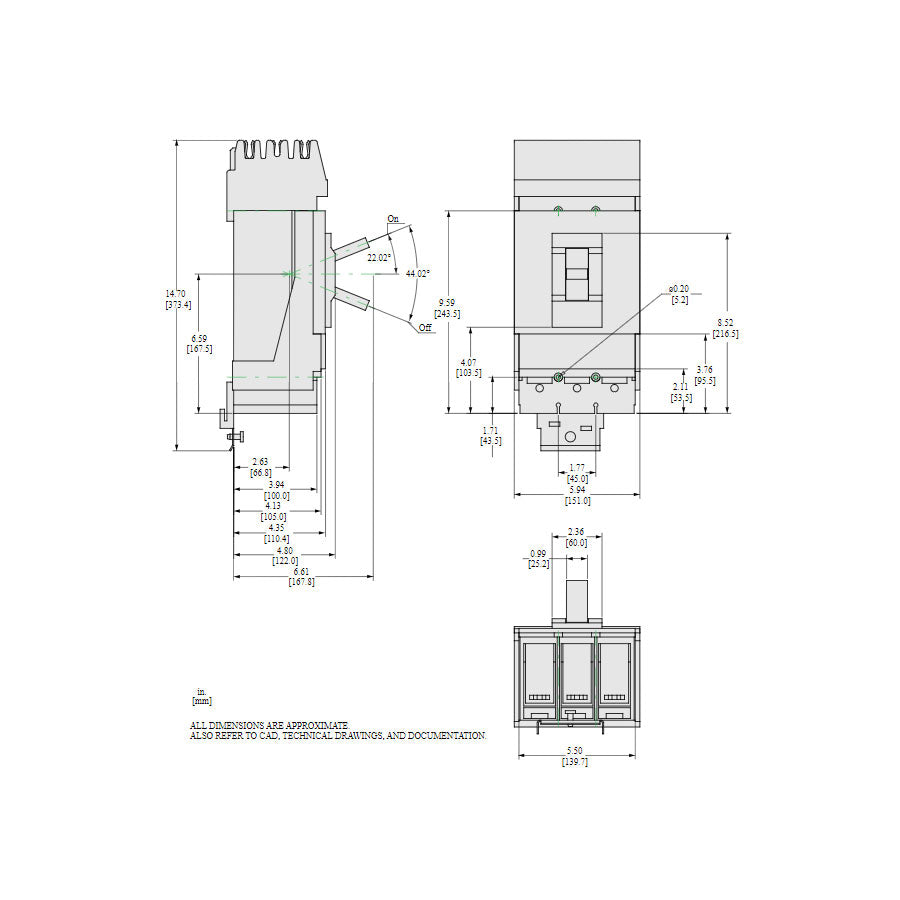

• Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
• Weight : 14
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 2 x AWG 2/0...500 kcmil aluminium/copper
