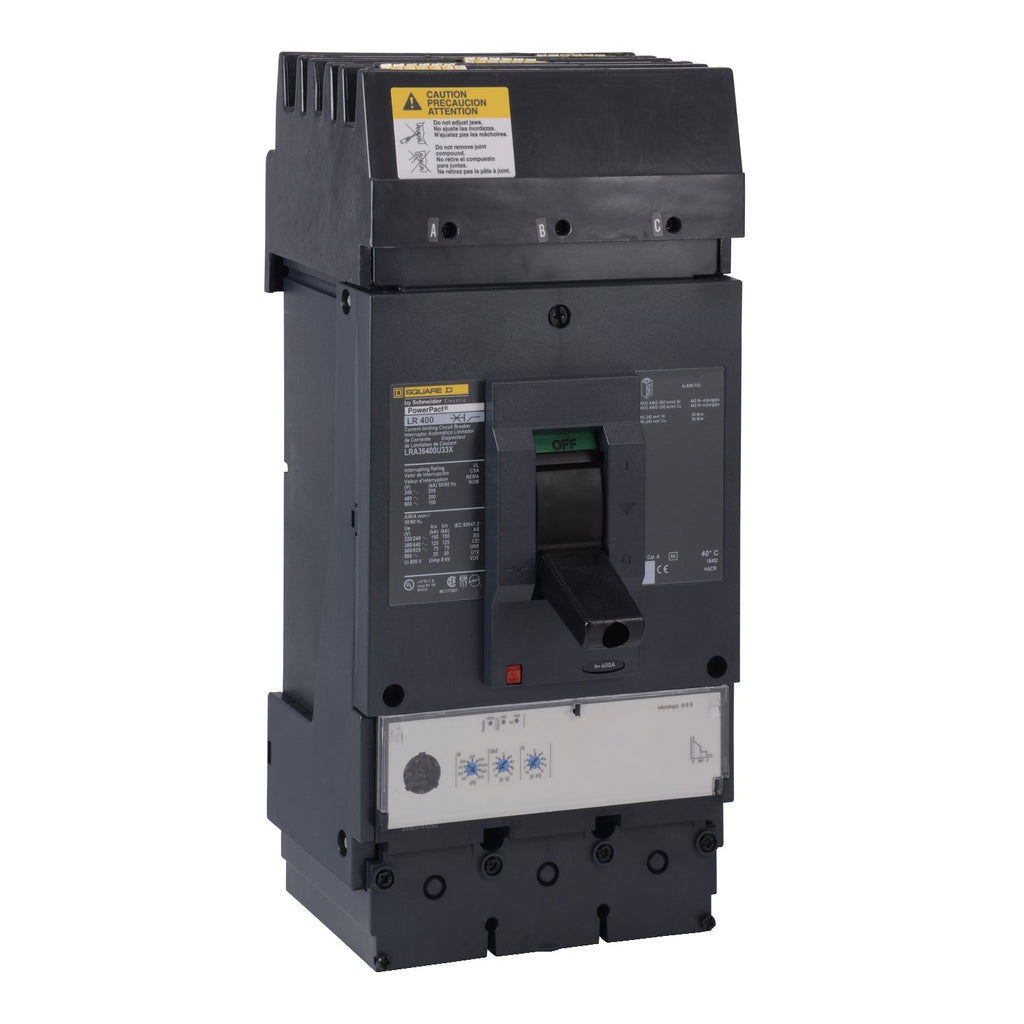

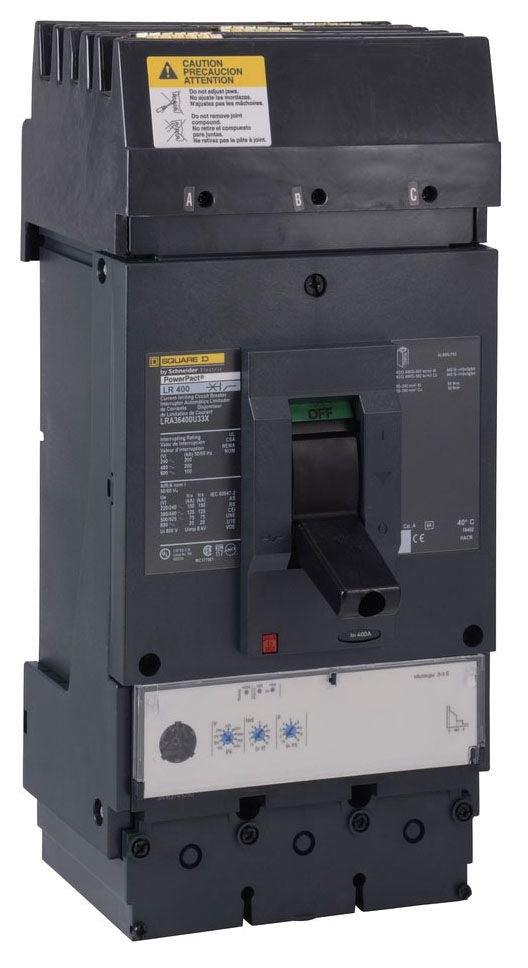

LRA36600U33X - Square D PowerPact L 600A 3-Pole 600V Circuit Breaker MicroLogic 3.3S I-Line

LRA36600U33X

LRA36600U33X is a high-performance Square D PowerPact L circuit breaker designed for demanding power distribution applications. This 3-pole, 600A, 600V circuit breaker features advanced MicroLogic 3.3S electronic trip technology for reliable protection and precise control. Engineered for I-Line mounting, the LRA36600U33X is part of the PowerPact L series and offers robust performance in industrial and commercial environments. The breaker is equipped with LSI (Long, Short, Instantaneous) protection and is built to handle high fault currents with dependable operation.

• Part Number: LRA36600U33X
• Manufacturer: Square D
• Series/Frame: PowerPact L
• Amperage: 600A
• Number of Poles: 3
• Voltage Rating: 600V AC
• Mounting Type: I-Line
• Interrupt Rating: 100kA
• Frame Type: L-Frame
• Line Rated Current: 600A
• Trip Unit Technology: MicroLogic 3.3S, Electronic, LSI
• Application: Molded Case Circuit Breaker

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LRA36600U33X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : LRA
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 200kA@480V
• Connection : I-Line Style Plug-In
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Frame Size : L Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Solid State

Product Data

• UPC : 060648628392
• GTIN : 03606486283929

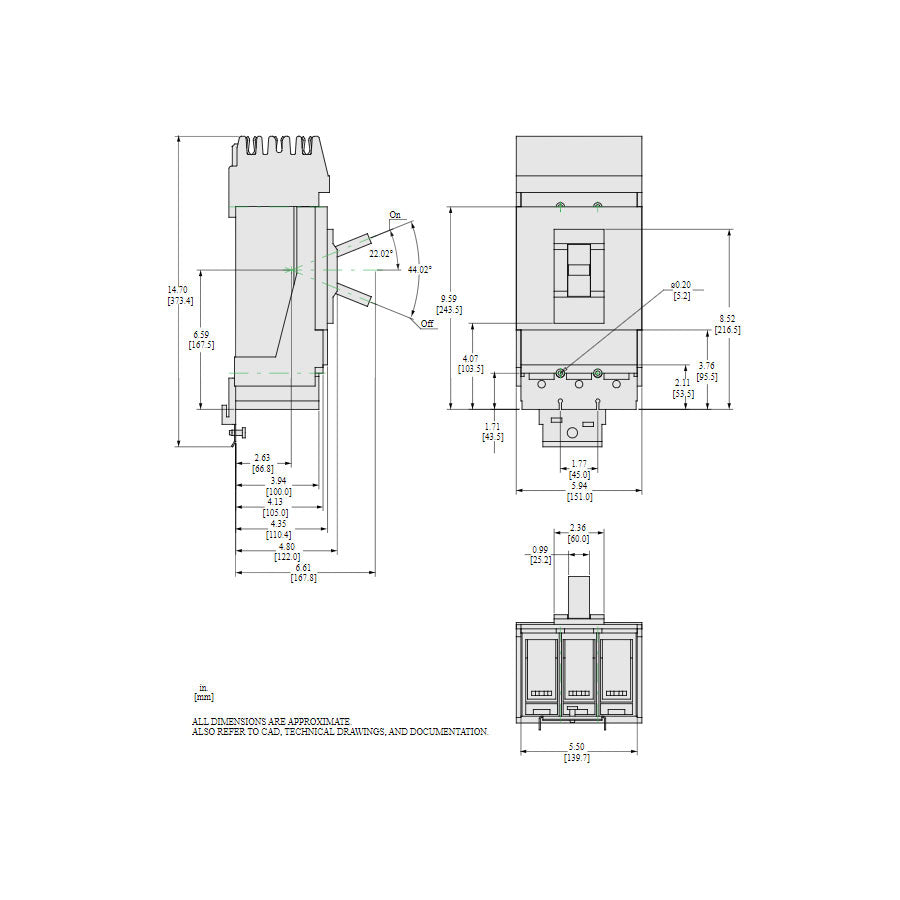

• Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
• Weight : 15
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 2 x AWG 2/0...500 kcmil aluminium/copper
