Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
LMD63F800

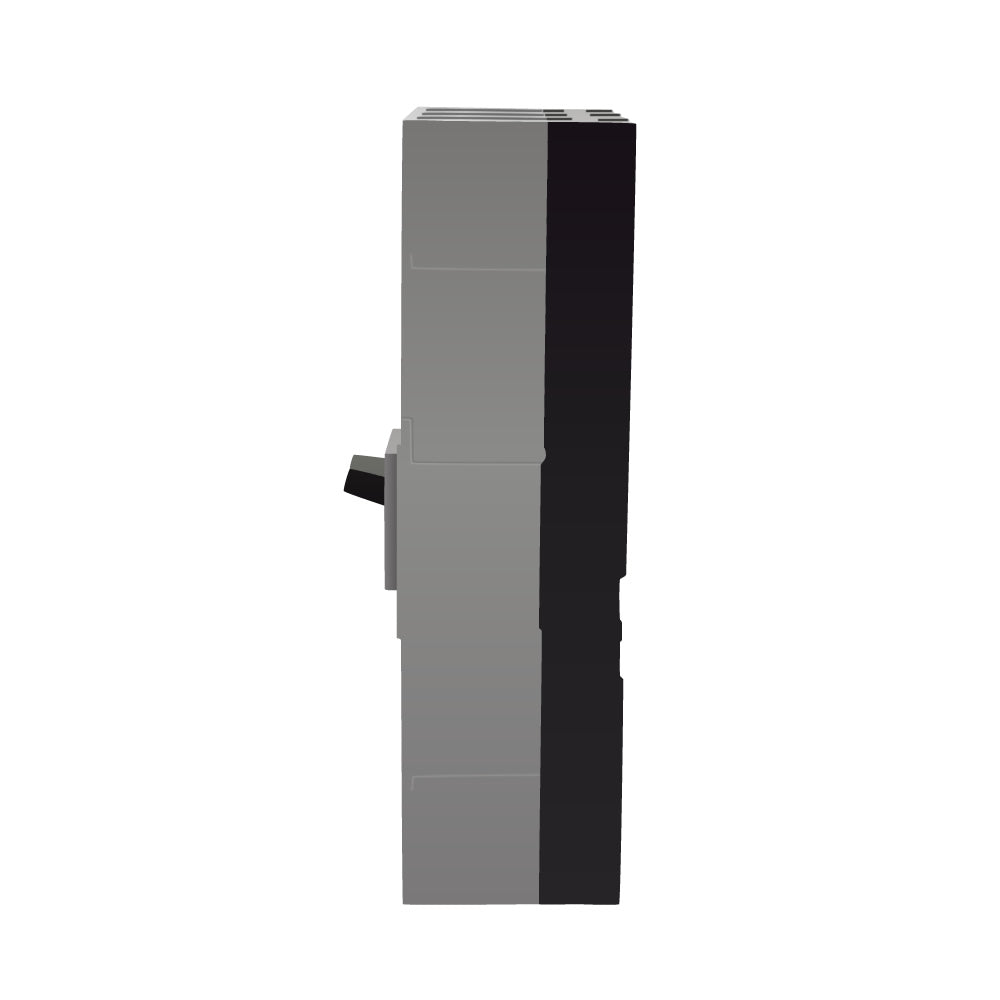

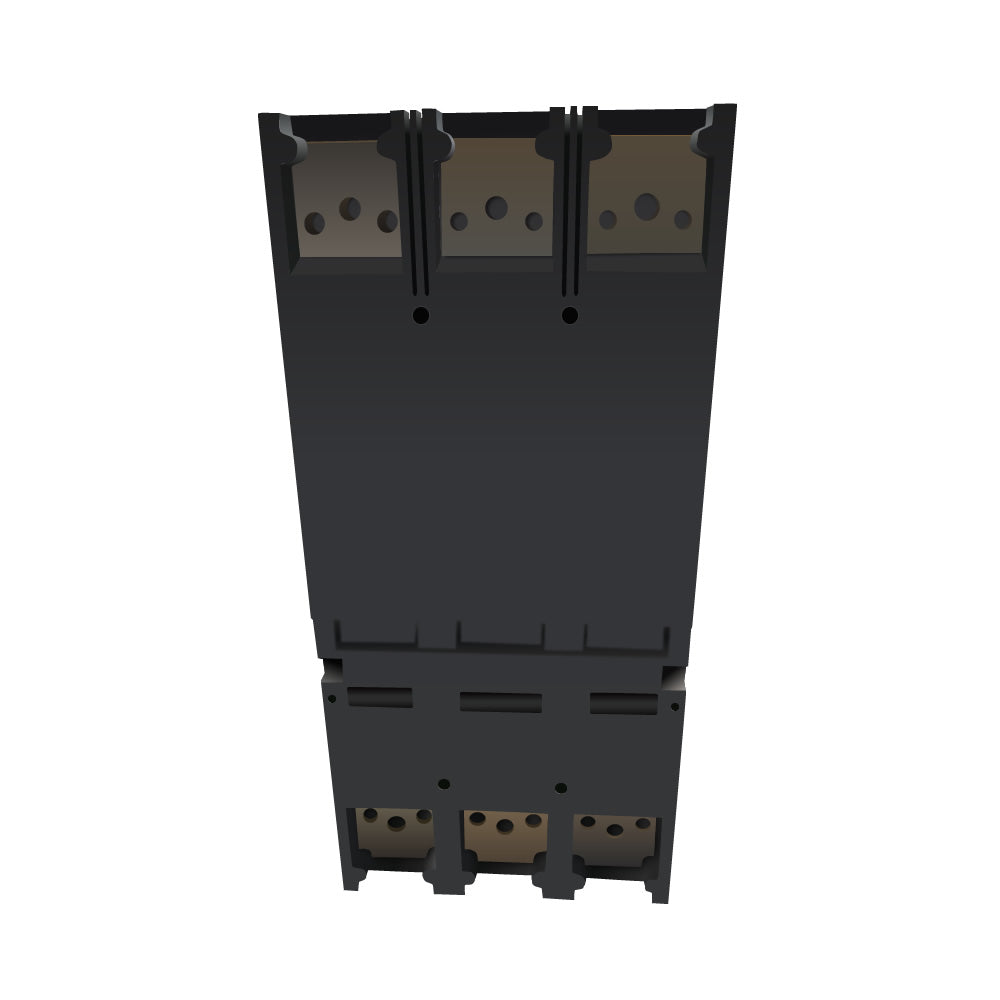

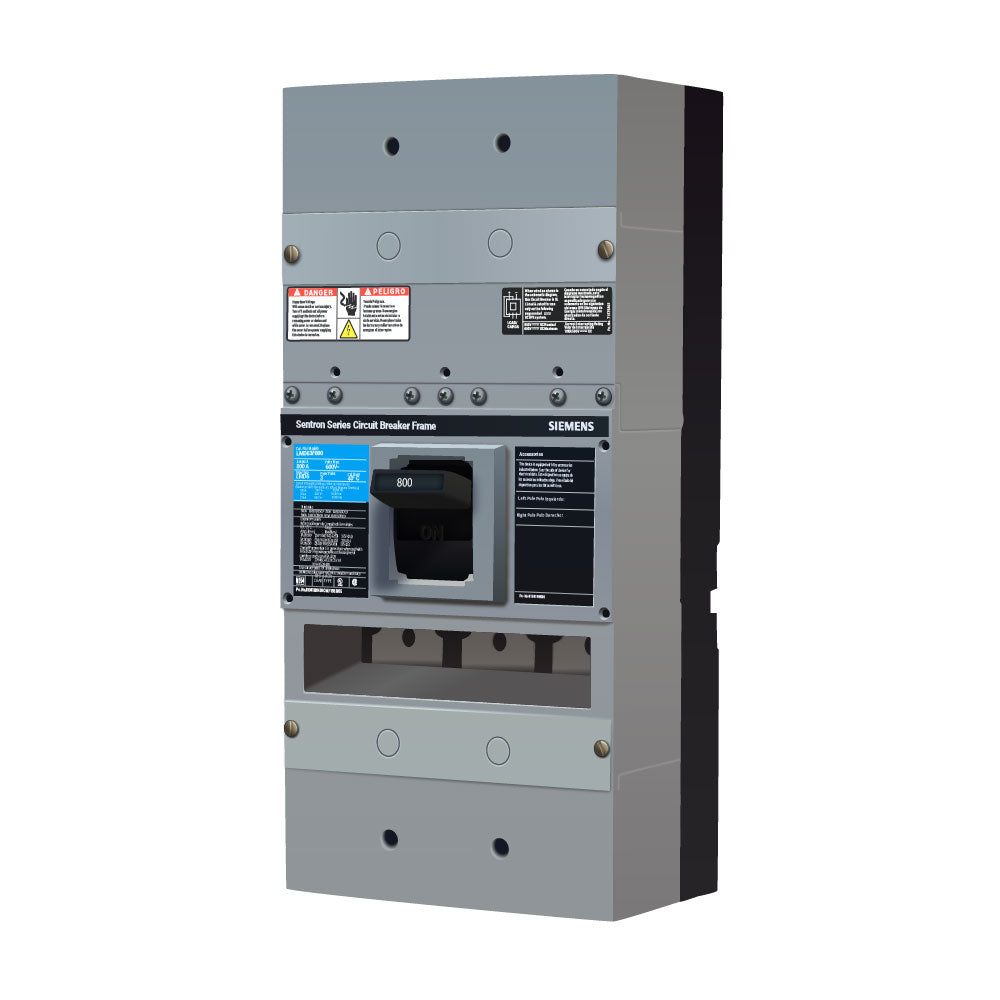

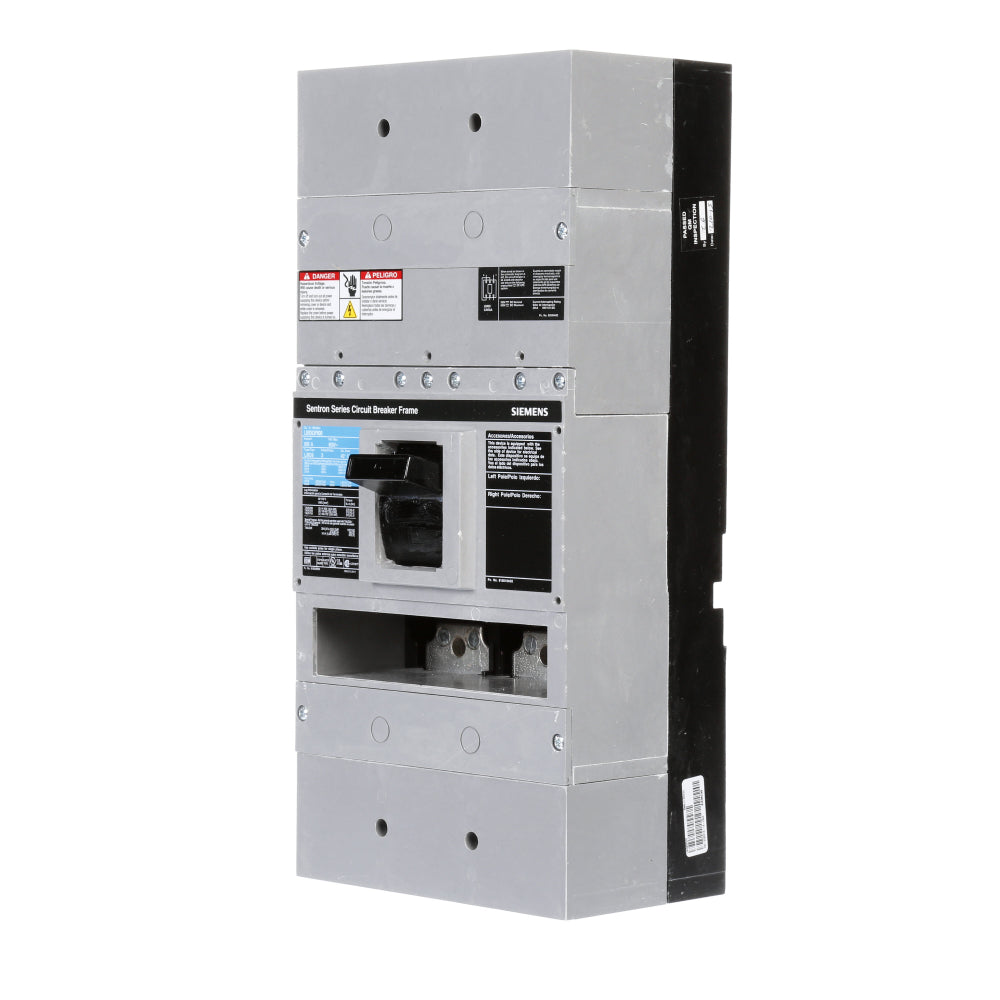

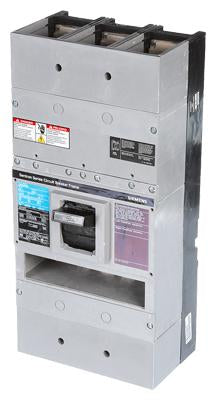

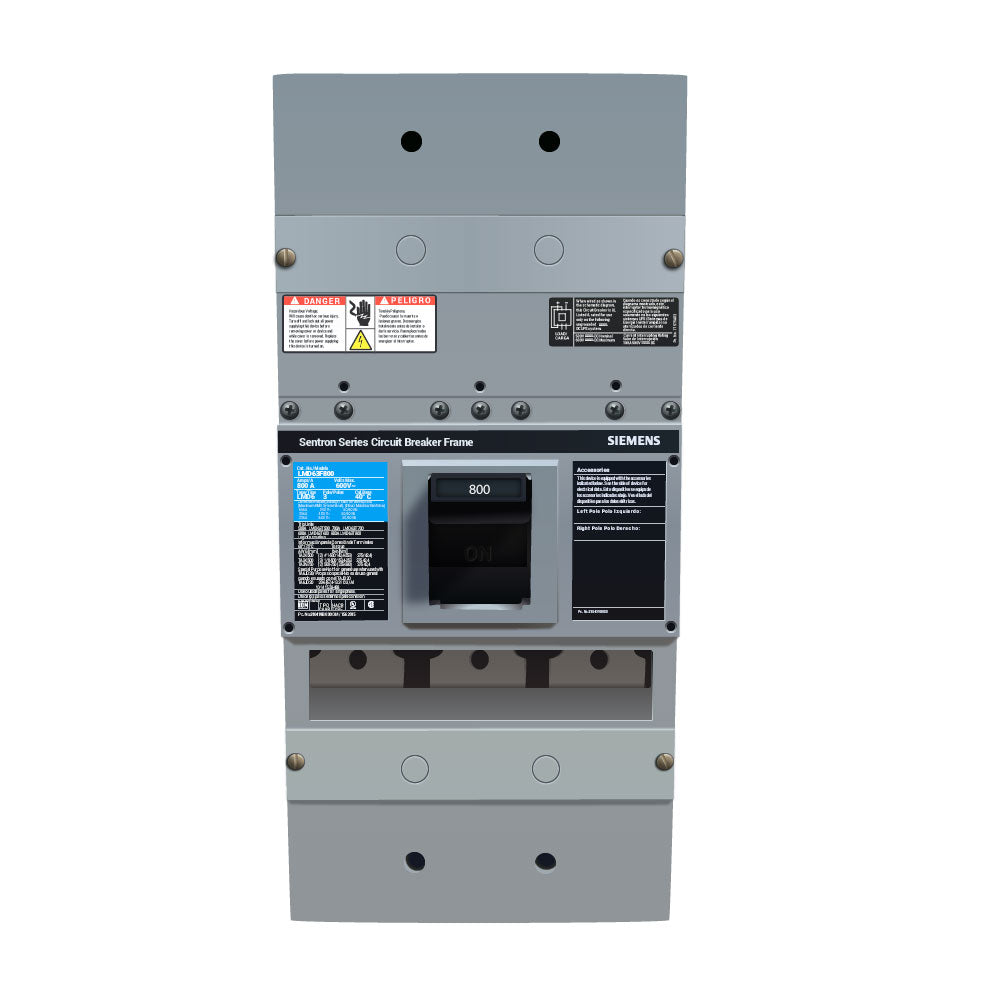

LMD63F800 is a Siemens 3 pole thermal magnetic molded case circuit breaker frame rated for 800 amps and 600 volts AC/DC.This Siemens LMD series breaker frame supports bolt-on mounting and features a 25kA interrupting rating at 600V, suitable for low voltage power distribution applications.
- Key Specifications
- Amperage: 800 A
- Voltage Rating: 600 VAC / 500 VDC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupting Rating: 25 kA at 600V
- Series/Frame: LMD
- Trip Unit: Thermal Magnetic
- Operating Temperature: 40°C
- Certifications: UL Listed, CSA Certified (typical for Siemens LMD series)
- Dimensions: Approx. 6.4 in L x 9.9 in W x 18.4 in H
Specifications
- Part Number: LMD63F800
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : LMD
- Voltage : 600
- Amperage : 800
- Phase : 3
- Poles : 3
- AIC rating : 50kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : LMD Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 783643268036
- GTIN : 00783643268036
- Country of Origin : Mexico
- Weight : 29.595
