LJL36400U43XLY - Schneider Electric PowerPact L Frame Circuit Breaker 400A 3 Pole 600VAC 25kA

LJL36400U43XLY

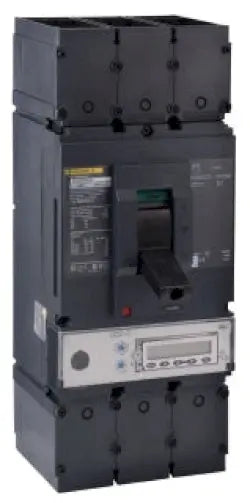

LJL36400U43XLY is a Schneider Electric PowerPact L Frame molded case circuit breaker designed for reliable protection in industrial and commercial power distribution systems. This 3-pole breaker features a 400A current rating, 600VAC maximum voltage, and a 25kA interrupting rating, making it suitable for a wide range of applications requiring robust circuit protection. The LJL36400U43XLY breaker is equipped with a MicroLogic 5.3A trip unit for precise overload and short circuit protection. It is unit mount style with line/load lugs and is UL 489 listed, CSA, NEMA, NMX, VDE, BS, CCC, IEC certified, and CE marked for global compliance. The breaker is also PVC free and features a toggle actuator for easy operation.

• Part Number: LJL36400U43XLY
• Manufacturer: Schneider Electric
• Series/Frame: PowerPact L Frame
• Amperage: 400A
• Voltage Rating: 600VAC
• Poles: 3
• Interrupt Rating: 25kA
• Mounting Type: Unit Mount
• Connection Type: Line/Load Lug
• Actuator Type: Toggle
• Trip Unit: MicroLogic 5.3A
• Certifications: UL 489, CSA, NEMA, NM(more...)


  Specifications

  • Part Number: LJL36400U43XLY
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : LJL
  • Voltage : 600
  • Amperage : 400
  • Phase : 3
  • Poles : 3
  • AIC rating : 65kA@480V
  • Connection : Feed-Thru
  • Functions : LSI - Long-Time, Short-Time and Instantaneous
  • Terminal Connection : Lug
  • Frame Size : L Frame
  • Temp Rating : 28-158 ¡F (-2-70 ¡C)
  • Protection : Solid State



  Product Data

  • UPC : 078590163779
  • GTIN : 00785901637790
  • Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
  • Weight : 17
  • Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification : UL, CSA, NOM
  • Wire Size : 2 x AWG 2/0...500 kcmil aluminium/copper
