2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
LHP36400-BLACK

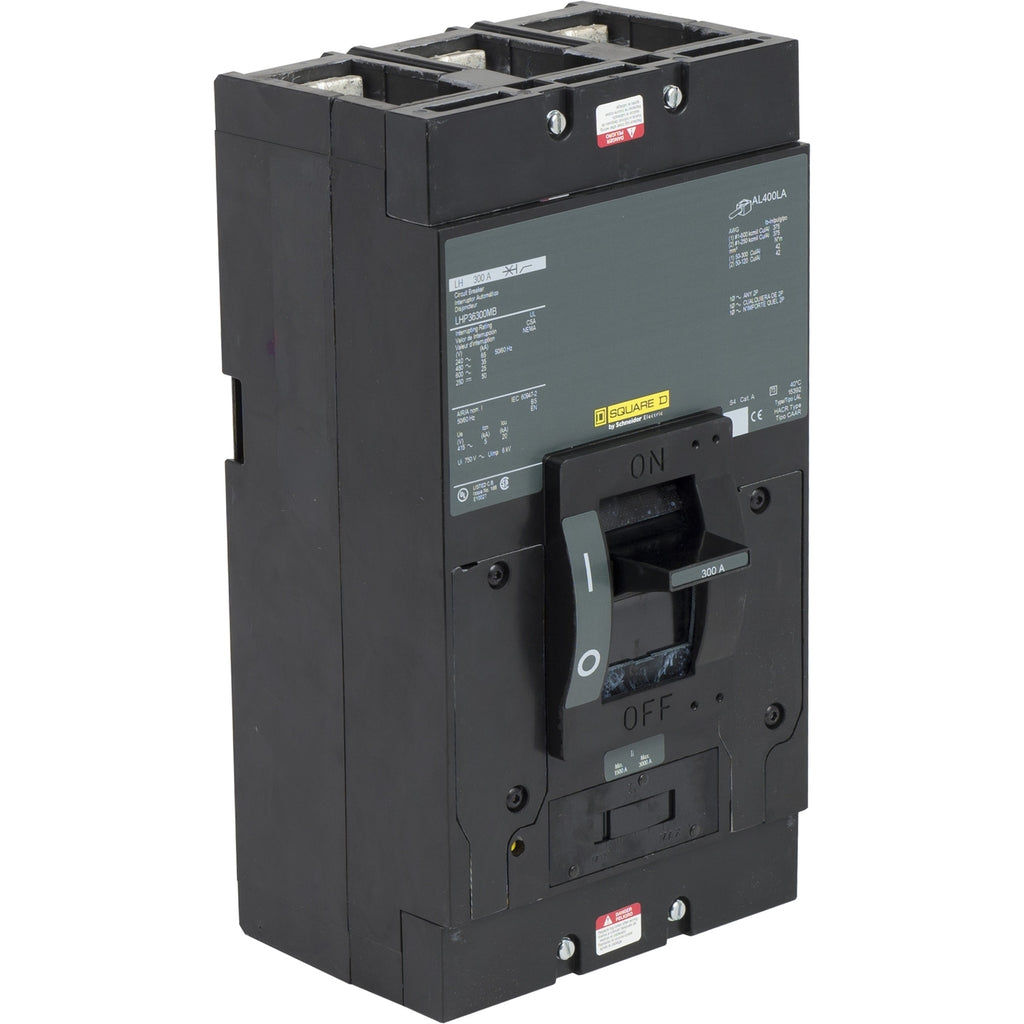

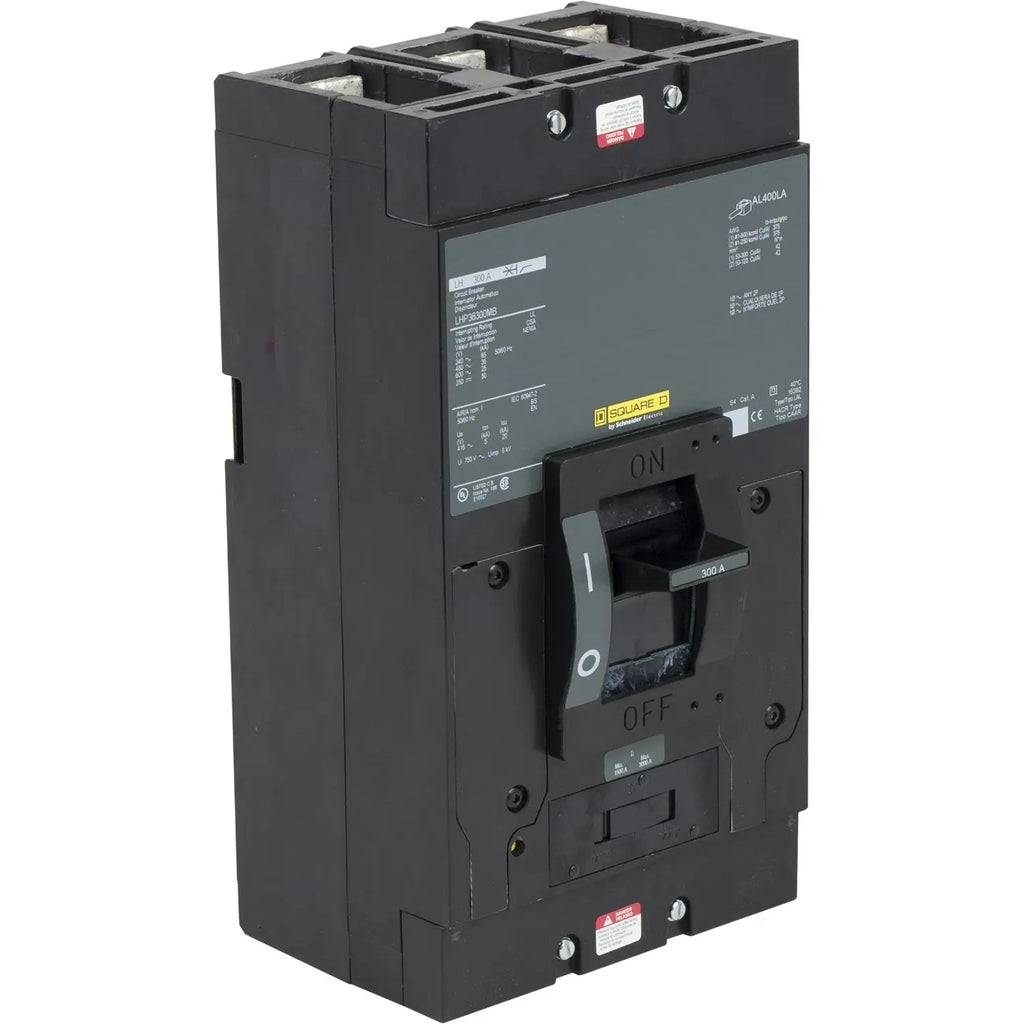

LHP36400-BLACK is a 3 pole, 400 amp molded case circuit breaker designed for 600 volt applications.This Square D circuit breaker features a thermal magnetic trip unit providing reliable long-time and instantaneous protection. It is a bolt-on type breaker suitable for industrial and commercial power distribution systems. The breaker has a maximum voltage rating of 600 VAC and 250 VDC, with a compact frame size measuring approximately 6 inches wide by 5.84 inches deep by 11 inches high. Interrupt ratings include 65kA at 240VAC, 35kA at 480VAC, and 25kA at 600VAC.
- Key Specifications
- Amperage: 400 Amp
- Voltage: 600 VAC / 250 VDC max
- Poles: 3
- Mounting Type: Bolt-On
- Trip Unit: Thermal Magnetic
- Interrupt Rating: 25kA @ 600VAC, 35kA @ 480VAC, 65kA @ 240VAC
- Frame/Series: L Frame (LHP series)
- Dimensions: 6" W x 5.84" D x 11" H
Specifications
- Part Number: LHP36400-BLACK
- Manufacturer : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : LHP Series
- Type : LHP
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : L Frame
- Protection : Thermal Magnetic
Product Data
- Dimensions : Depth 28.98 in (73.6 cm) Width 15.43 in (39.2 cm) Height 17.01 in (43.2 cm)
- Weight : 20
