Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
LHP36200

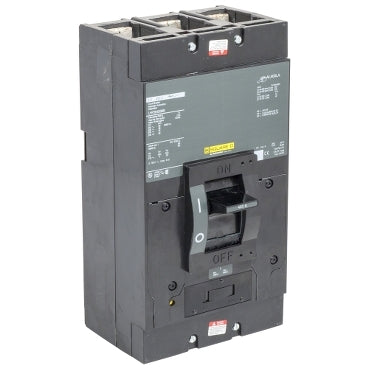

LHP36200 is a Square D 3 pole, 200 amp, 600 volt bolt-on circuit breaker with a high interrupting capacity of 35kA at 480 volts.Technical Description: This molded case circuit breaker features a thermal magnetic trip unit designed for reliable protection in industrial and commercial applications. It is built on the LH frame style and supports a 3-pole configuration suitable for three-phase systems. The breaker is rated for 600 VAC operation and provides a 35kA interrupting rating at 480 VAC, ensuring high fault current interruption capability.
- Amperage: 200A
- Voltage Rating: 600V AC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 35kA at 480V
- Frame/Series: LH
- Trip Unit: Thermal Magnetic
Specifications
- Part Number: LHP36200
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : LHP Series
- Type : LHP
- Voltage : 600
- Amperage : 200
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : L Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 060648628747
- GTIN : 03606486287477
- Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
- Weight : 15.61
