Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
LHL36300V

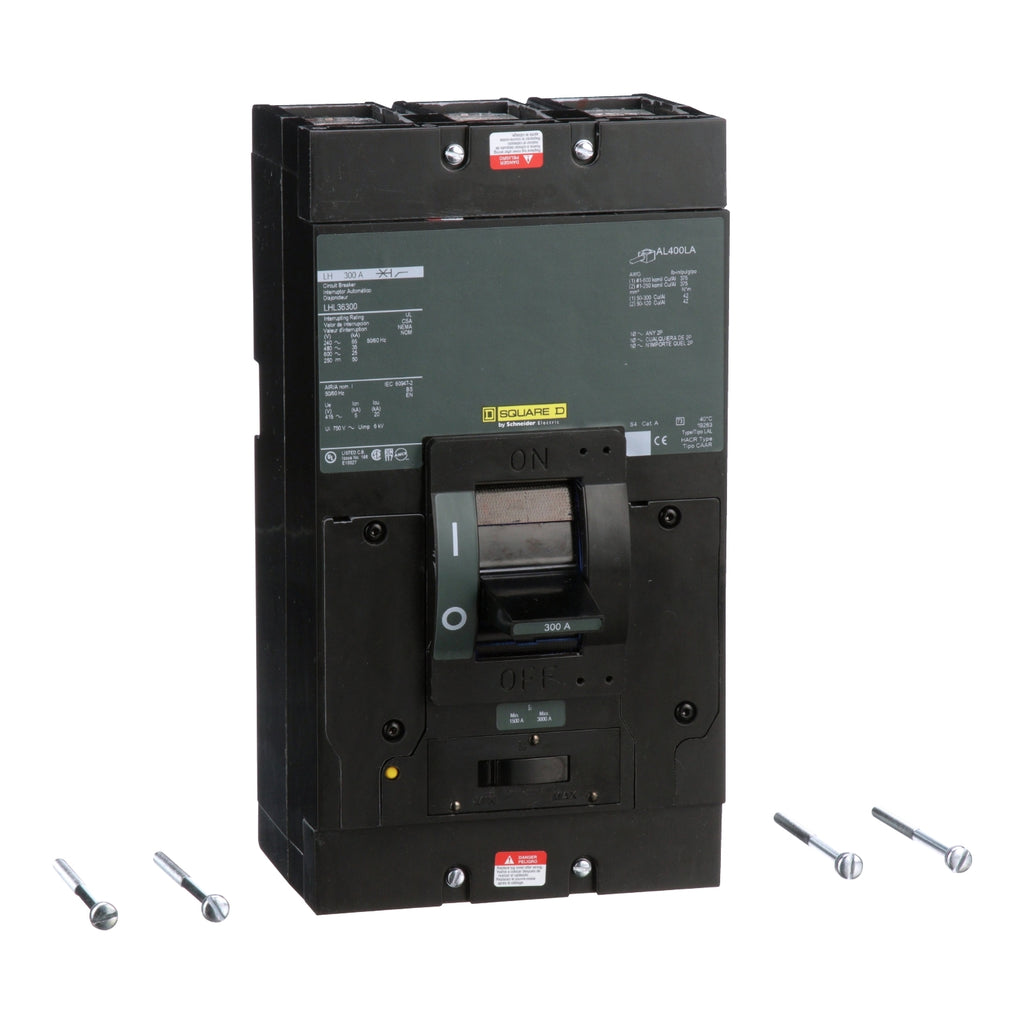

LHL36300V is a Square D molded case circuit breaker designed for industrial power distribution applications. This thermal magnetic high interrupting type breaker provides reliable overcurrent protection in three-phase systems with superior fault current handling capabilities. LHL36300V features a compact design with lugs for direct connection to bus bars and is engineered for unit mount installation in electrical enclosures. The breaker combines proven thermal magnetic trip technology with high interrupting capacity to protect critical circuits from overloads and short circuits.
- Amperage Rating: 300A
- Voltage Rating: 600VAC
- Poles: 3
- Trip Type: Thermal Magnetic
- Interrupting Rating: 25kA @ 600VAC, 35kA @ 480VAC, 65kA @ 240VAC
- Connection Type: Lugs
- Dimensions: 5.84 in L x 6 in W x 11 in H
- Enclosure Type: NEMA AB1
- Mounting: Unit Mount
Specifications
- Part Number: LHL36300V
- Manufacturer : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : LHL Series
- Type : LHL
- Voltage : 600
- Amperage : 300
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : L Frame
- Protection : Thermal Magnetic
Product Data
- Dimensions : Depth 17.75 in (450.85 mm) Width 36.62 in (930.15 mm) Height 69.13 in (1755.90 mm)
- Weight : 20
