Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
LHL36250V

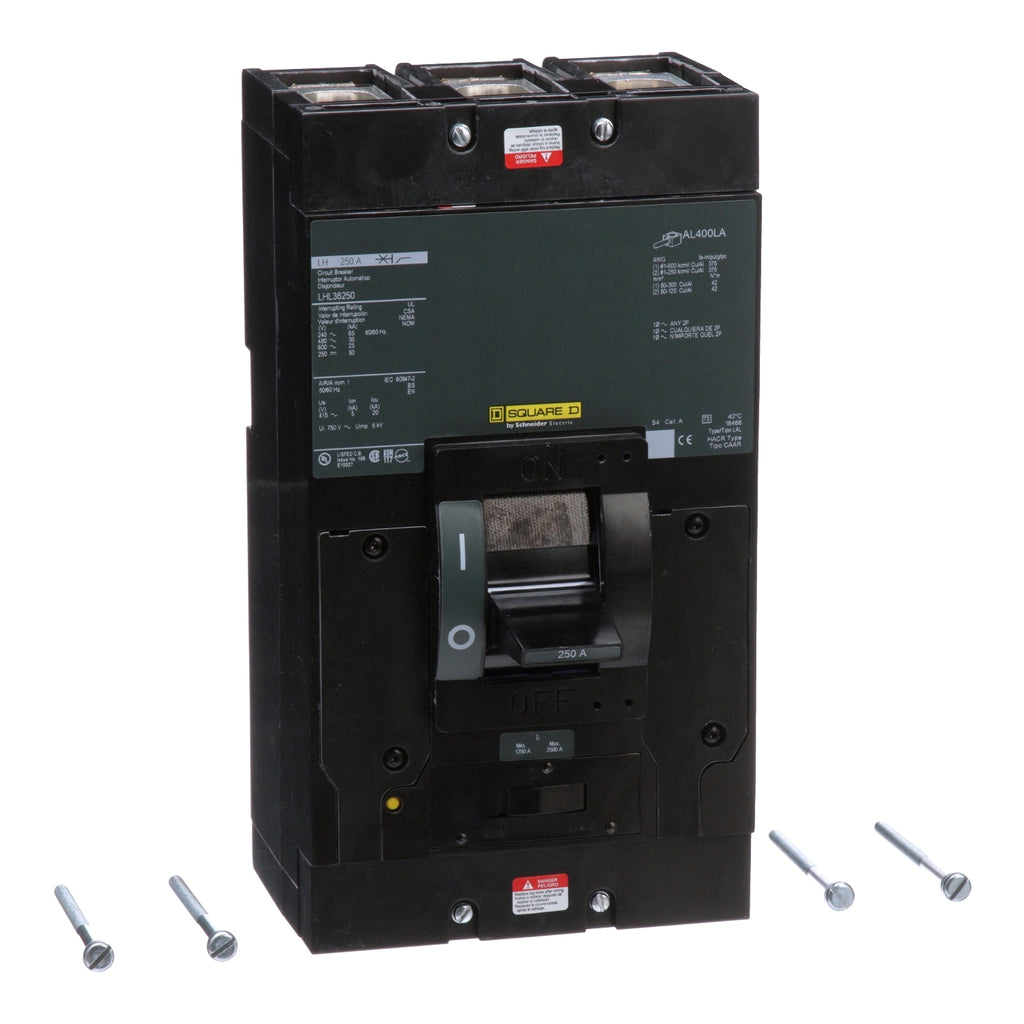

LHL36250V is a Square D 3-pole molded case circuit breaker rated for 250 amps and 600 volts with thermal magnetic trip technology.
This LHL Series breaker features a high interrupting capacity with ratings of 65kA at 240VAC, 35kA at 480VAC, and 25kA at 600VAC. It is designed for unit mounting with line and load lug connections, providing reliable overload and short circuit protection via thermal magnetic trip units. The breaker frame type is L Frame, suitable for 3-phase applications, and operates within a temperature range of -13 to 158 degrees Fahrenheit.
- Amperage: 250 A
- Voltage: 600 VAC / 250 VDC
- Poles: 3
- Frame Type: L Frame
- Interrupt Rating: 65 kA @ 240 VAC, 35 kA @ 480 VAC, 25 kA @ 600 VAC, 50 kA @ 125/250 VDC
- Trip Unit: Thermal Magnetic
- Mounting Type: Unit Mount
- Connection: Line and Load Lugs
- Frequency: 50/60 Hz
- Operating Temperature Range: -13 to 158 °F
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: LHL36250V
- Manufacturer : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : LHL Series
- Type : LHL
- Voltage : 600
- Amperage : 250
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : L Frame
- Protection : Thermal Magnetic
Product Data
- Dimensions : Depth 17.75 in (450.85 mm) Width 36.62 in (930.15 mm) Height 69.13 in (1755.90 mm)
- Weight : 20
