LHL36200 - Square D 200A 600VAC 3P Molded Case Circuit Breaker, LH Frame, Thermal Magnetic Trip, 25kA@600V, 35kA@480V, 65kA@240V, NEMA 1/3R/4/4X/5/12, UL/CSA

LHL36200

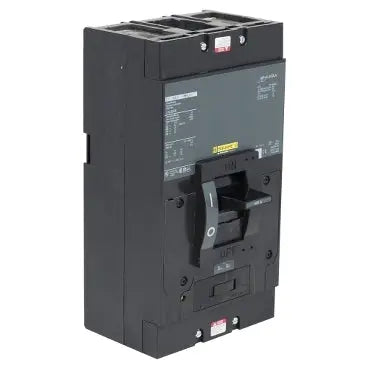

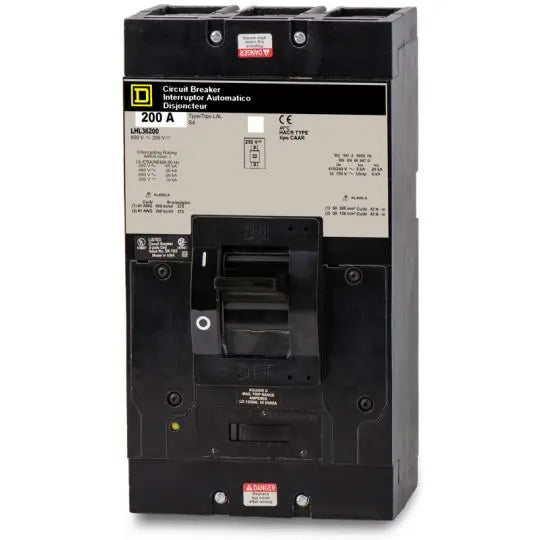

LHL36200 is a Square D 200A, 600VAC, 3-pole molded case circuit breaker designed for robust power distribution and panel protection.

This thermal magnetic trip unit breaker features a high interrupting capacity, versatile mounting in NEMA 1, 3R, 4, 4X, 5, and 12 enclosures, and is part of the LH frame series. It is UL and CSA certified, with easy-to-install lug terminals and compatibility with a wide range of field-installable accessories.

Key Specifications
• Part Number: LHL36200
• Manufacturer: Square D
• Amperage: 200A
• Voltage: 600VAC, 250VDC
• Poles: 3
• Mounting Type: Unit mount, NEMA 1/3R/4/4X/5/12
• Interrupt Rating: 25kA@600VAC, 35kA@480VAC, 65kA@240VAC, 50kA@250VDC, 50kA@125VDC
• Series/Frame: LH (H Frame)
• Trip Unit: Thermal magnetic, long-time and instantaneous (LI)
• Certifications: UL Listed, CSA
• Dimensions: 5.84" L x 6" W x 11" H
• Frequency: 50/60 Hz
• Terminals: Line and load side lugs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LHL36200
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : LHL Series
• Type : LHL
• Voltage : 600
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Frame Size : L Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 785901082125
• GTIN : 00785901082125
• Country of Origin : Mexico
• Dimensions : 11 in (279.4 mm) x 6 in (152.4 mm) x 5.84 in (148.34 mm) (Height x Width x Depth)
• Weight : 16.18
• Certification : Ul Listed
