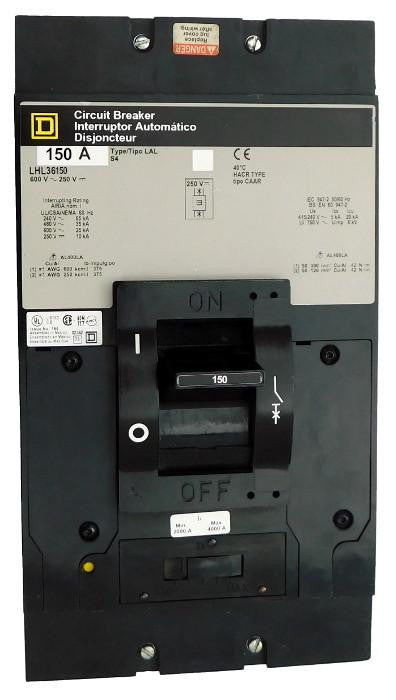

LHL36150 - Square D 150A 600V 3-Pole LHL Frame Molded Case Circuit Breaker Thermal Magnetic

LHL36150

LHL36150 is a Square D molded case circuit breaker designed for reliable protection in electrical systems.This 150 amp, 3-pole circuit breaker features a thermal magnetic trip unit and is rated for up to 600 volts AC and 250 volts DC. It uses an LHL frame type with unit mount installation and includes line and load lug terminals. The breaker offers high interrupting capacity with ratings up to 65 kA at 240 VAC and 50 kA at 250 VDC. It is UL and CSA certified for safety and performance.

Key Specifications
• Amperage: 150 A
• Voltage Rating: 600 VAC / 250 VDC
• Poles: 3
• Frame Type: LHL
• Mounting Type: Unit Mount
• Interrupting Rating: 65 kA at 240 VAC, 35 kA at 480 VAC, 25 kA at 600 VAC, 50 kA at 250 VDC
• Trip Unit: Thermal Magnetic
• Terminal Type: Line and Load Lugs
• Certifications: UL, CSA
• Dimensions: Approx. 6" W x 5.84" D x 11" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LHL36150
• Manufacturer : Square D
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : LHL Series
• Type : LHL
• Voltage : 600
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Frame Size : L Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 785901710479
• GTIN : 00785901710479
• Country of Origin : United States
• Dimensions : Height 11 in (279.40 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
• Weight : 16.18
• Certification : IEC-CSA-UL LISTED
• Wire Size : 1 AWG–600KCmil AL, 1 AWG–250KCmil AL
