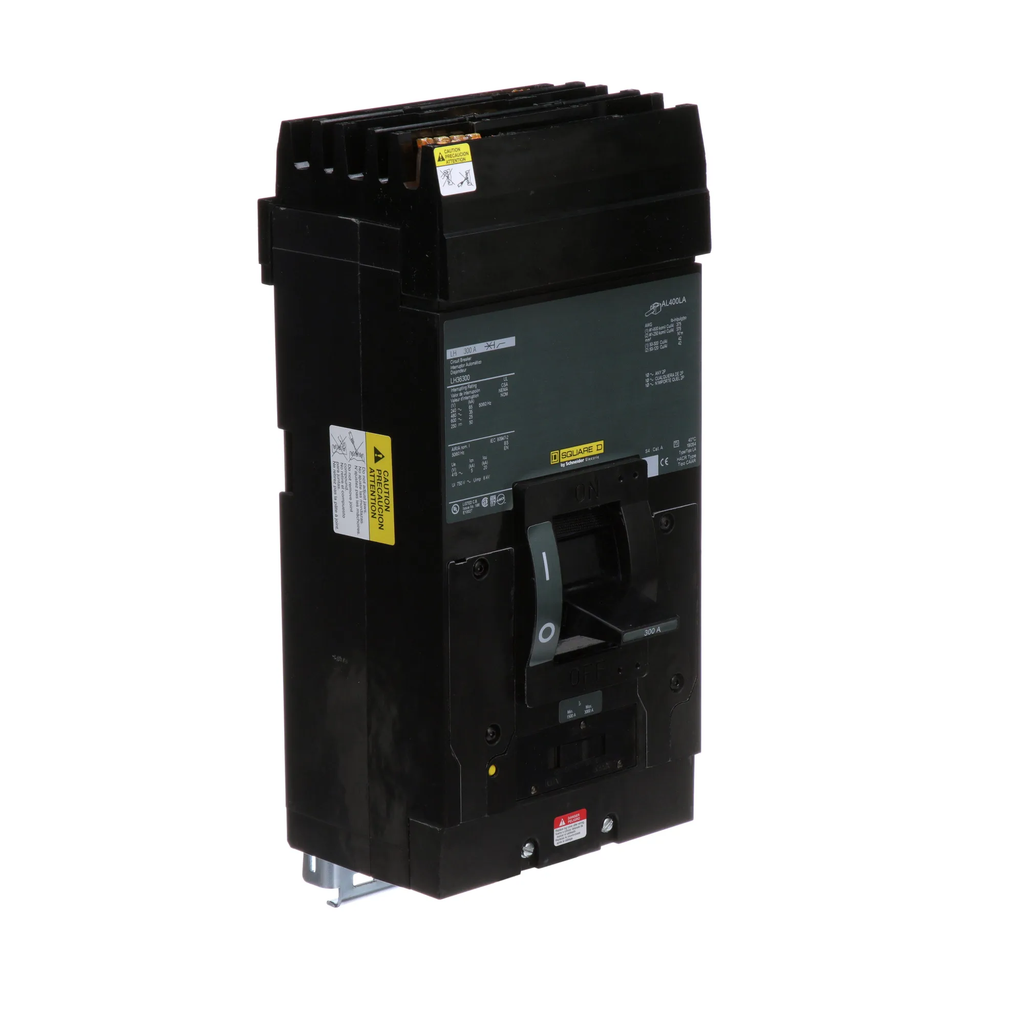

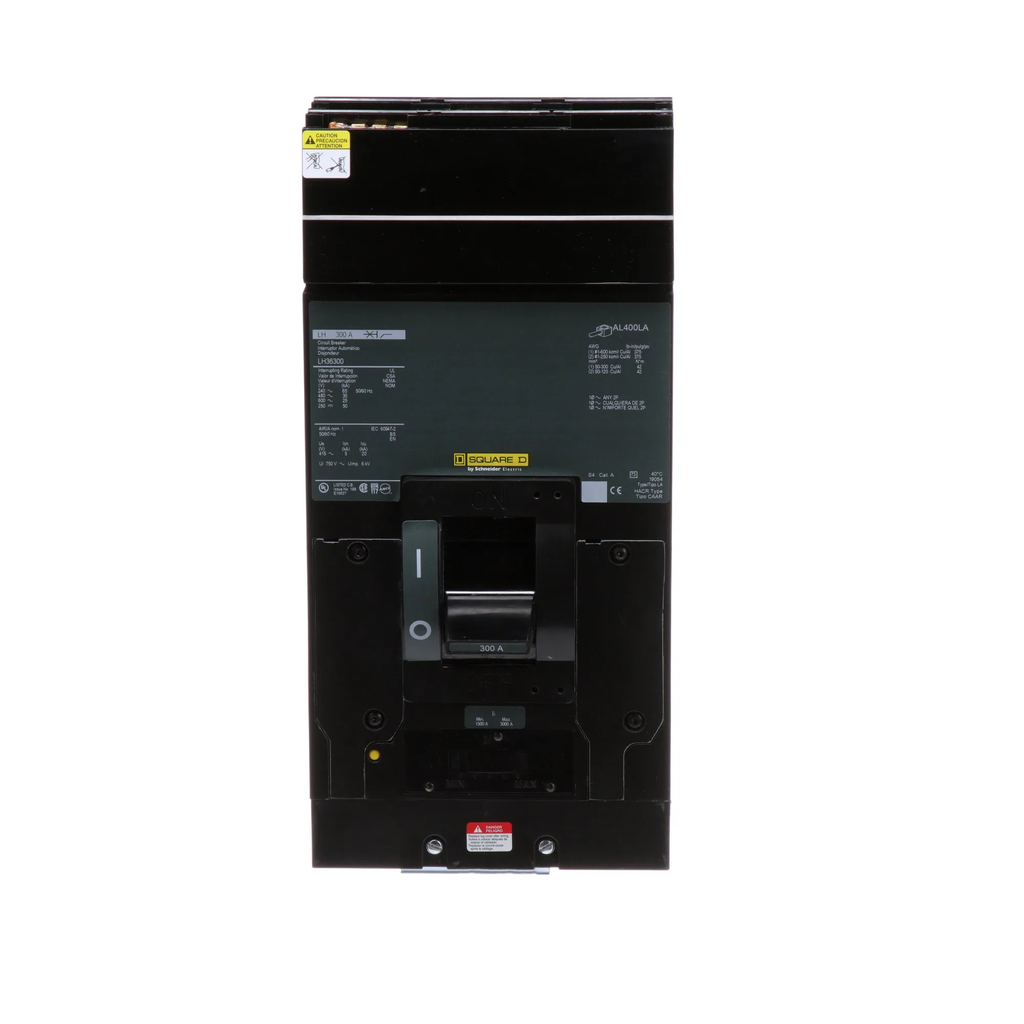

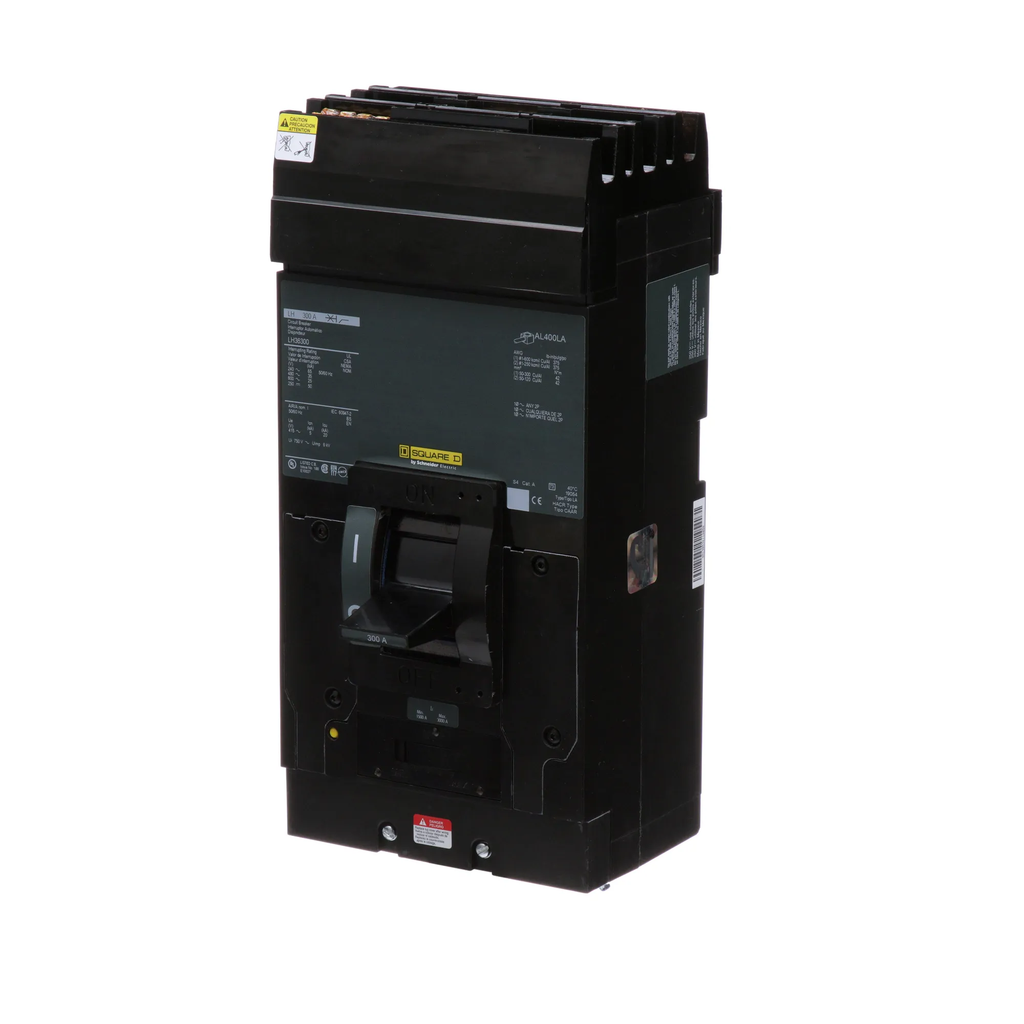

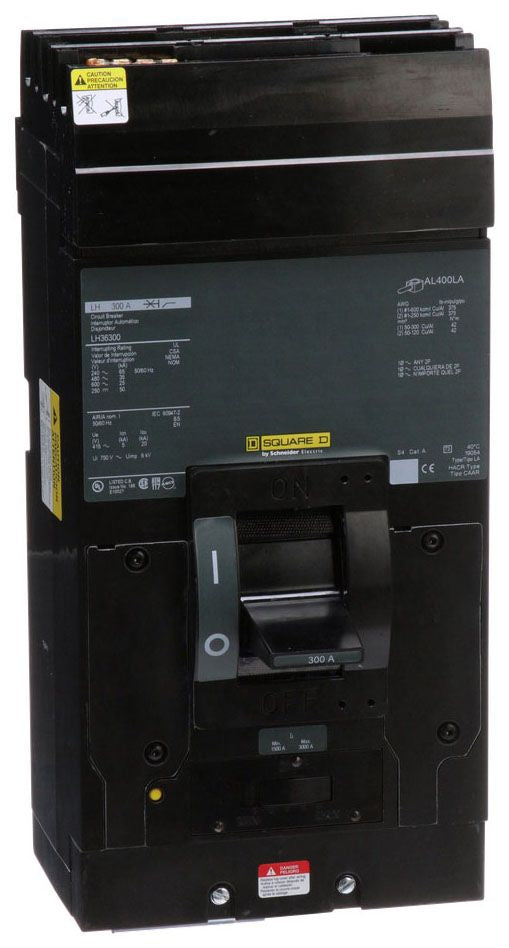

LH36300 - Square D 300 Amp 600 Volt 3 Pole I-Line Circuit Breaker Thermal Magnetic

LH36300

LH36300 is a Square D 300 Amp, 600 Volt, 3 Pole I-Line circuit breaker designed for reliable thermal magnetic protection.This molded case circuit breaker features a 25kA interrupt rating at 600VAC and is suitable for I-Line panelboards and switchboards. It includes thermal (overload) and magnetic (short circuit) sensing elements in each pole, providing robust protection. The breaker is UL, CSA, and IEC certified and mounts with an I-Line plug-on style for easy installation.

• Amperage: 300 Amp
• Voltage: 600 Volt AC
• Poles: 3 Pole

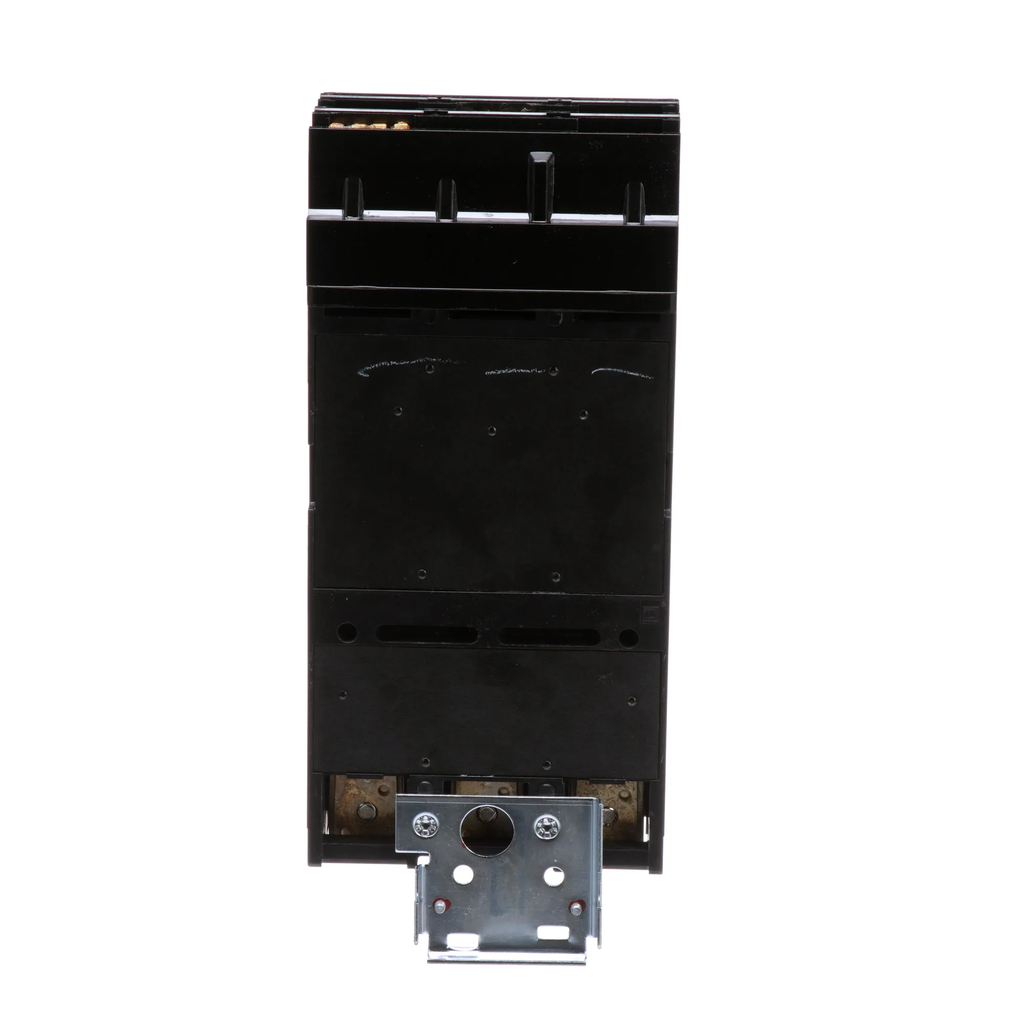

• Mounting Type: I-Line Plug-On
• Interrupt Rating: 25kA at 600VAC
• Trip Unit: Thermal Magnetic
• Frame/Series: LH I-Line
• Certifications: UL Listed, CSA, IEC Compliant
• Application: HACR Rated
• Dimensions: 12.5 in H x 6 in W x 4 in D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LH36300
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : LH
• Voltage : 600
• Amperage : 300
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Frame Size : L Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 785901339410
• GTIN : 00785901339410
• Country of Origin : Mexico

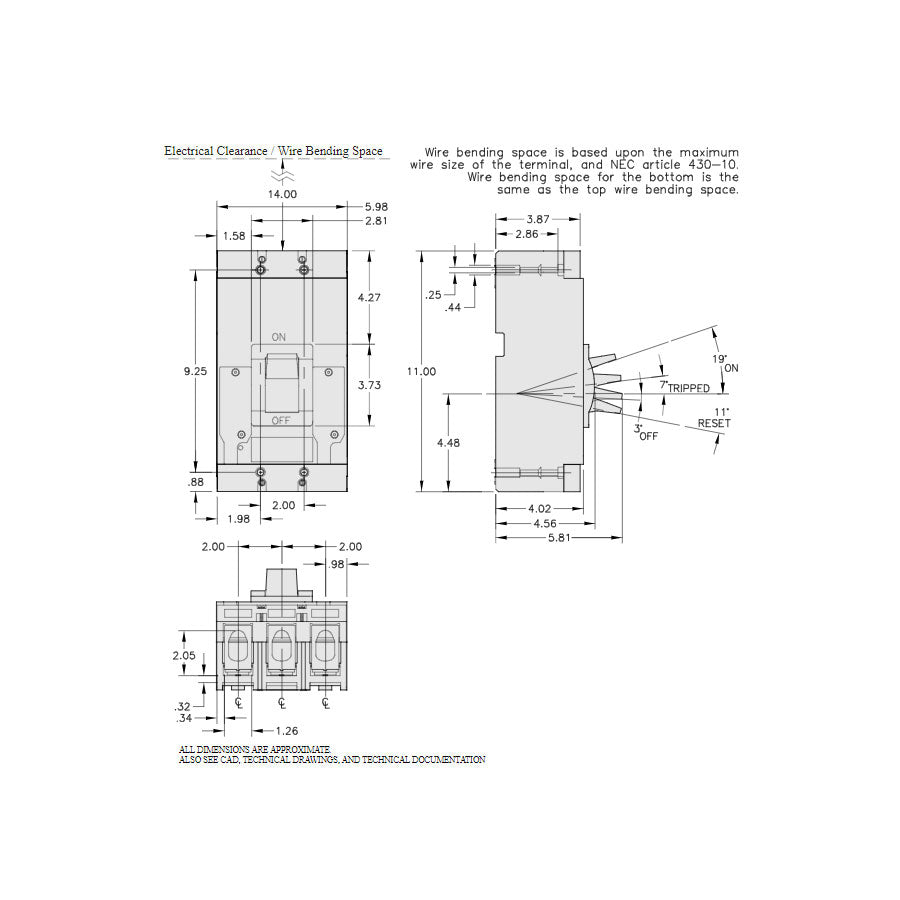

• Dimensions : 12.5 in (317.5 mm) x 6 in (152.4 mm) x 4 in (101.6 mm) (Height x Width x Depth)
• Weight : 18.1
• Certification : UL Listed, CSA
